Kramer VP-773AMP User Manual

Presentation switcher/scaler
Hide thumbs Also See for VP-773AMP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
K R A ME R E LE CT R O N IC S L TD .

USER MANUAL

MODEL:
VP-773AMP
Presentation Switcher/Scaler
P/N: 2900-300323 Rev 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-773AMP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer VP-773AMP

Summary of Contents for Kramer VP-773AMP

  • Page 1: User Manual

    K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VP-773AMP Presentation Switcher/Scaler P/N: 2900-300323 Rev 1...

  • Page 4: Table Of Contents

    The Single Window Display Mode The Dual Window Display Mode Controlling the VP-773AMP Controlling via the Front Panel Buttons Controlling via the OSD Menu Controlling via the VP-773AMP Web Pages Controlling via the Infrared Remote Control Transmitter Port Tunneling Flash Memory Upgrade Technical Specifications 11.1...
  • Page 5 Figures Figure 1: VP-773AMP Presentation Switcher/Scaler Front Panel Figure 2: VP-773AMP Presentation Switcher/Scaler Rear Panel Figure 3: 15-pin HD Connector Pinout Figure 4: Connecting the VP-773AMP Presentation Switcher/Scaler Figure 5: TP PINOUT Figure 6: Connecting the Balanced Stereo Audio Output...

  • Page 6: Introduction

    Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our...

  • Page 7: Getting Started

    Avoid interference from neighboring electrical appliances that may adversely influence signal quality  Position your VP-773AMP away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

  • Page 8: Recycling Kramer Products

    Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

  • Page 9: Overview

     Port tunneling, bidirectional RS-232 interface – simple control commands and data can flow in both directions from a controller to the VP-773AMP via the Ethernet, allowing status requests and control of the destination unit ...
  • Page 10 BC−DGKat623 and BC−DGKat7a23 shielded twisted pair (STP) cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. ...
  • Page 11 HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output In addition, the VP-773AMP Presentation Switcher / Scaler:  Includes luma keying via the PiP window ...

  • Page 12: Hdcp Compliance

    The VP-773AMP is housed in a 19” 1U rack mountable enclosure, with rack “ears” included, and is fed from a 100-240 VAC universal switching power supply. HDCP Compliance If an HDMI signal is HDCP protected, it can only appear on HDMI and HDBaseT outputs that are connected to HDCP compliant displays.

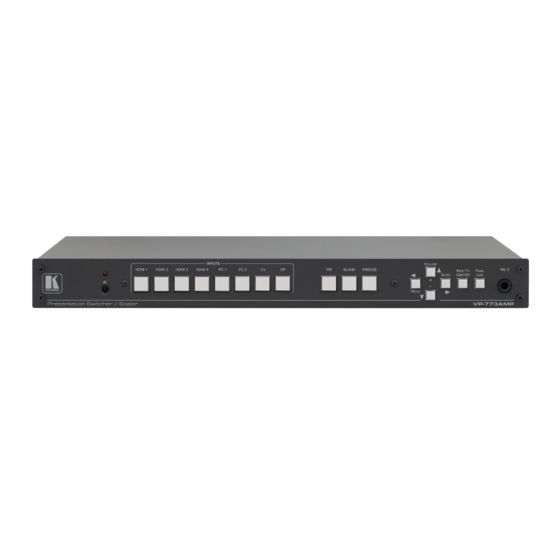

  • Page 13: Figure 1: Vp-773Amp Presentation Switcher/Scaler Front Panel

    Figure 1: VP-773AMP Presentation Switcher/Scaler Front Panel Feature Function IR Receiver Accepts IR remote commands IR LED Lights red when the unit accepts IR remote commands INPUT Selector HDMI Press to select the HDMI input (from 1 to 4) Buttons...

  • Page 14: Figure 2: Vp-773Amp Presentation Switcher/Scaler Rear Panel

    Figure 2: VP-773AMP Presentation Switcher/Scaler Rear Panel Feature Function AUDIO IN HDMI 3.5mm Mini Jack Connect to an unbalanced audio source for audio takeover of the HDMI 1 to HDMI 4 embedded audio (see Unbalanced Section 6.3). The pinout is defined in Section 5.4...
  • Page 15 Connect to the DisplayPort source HDMI OUT Connect to an HDMI acceptor (from 1 to 2) VIDEO HDBT OUT RJ-45 Connect to an HDBT receiver (for example, Kramer TP-580Rxr) to pass audio and video signals as well as OUTPUT serial commands Connectors LINK LED...

  • Page 16: Installing In A Rack

    Installing in a Rack This section provides instructions for rack mounting the unit. VP-773AMP - Installing in a Rack...

  • Page 17: Connecting The Vp-773Amp

    Alternatively, you can connect the DVI connector on the DVD player to the HDMI connector on the VP-773AMP via a DVI-HDMI adapter. You can connect the audio signal via the AUDIO IN HDMI 3.5mm mini jack, or use the embedded audio 2.
  • Page 18 You can also connect the HDMI OUT 2 output (not shown in Figure 7. Connect the HDBT RJ-45 connector to a receiver (for example, the Kramer TP-580Rxr). 8. Connect the AUDIO LINE OUT Terminal Block connector to a balanced...

  • Page 19: Figure 4: Connecting The Vp-773Amp Presentation Switcher/Scaler

    Figure 4: Connecting the VP-773AMP Presentation Switcher/Scaler VP-773AMP - Connecting the VP-773AMP...

  • Page 20: Wiring The Rj-45 Connectors

    This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors. Figure 5: TP PINOUT EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green Brown / White Brown VP-773AMP - Connecting the VP-773AMP...

  • Page 21: Connecting The Balanced Stereo Audio Output

    Audio Acceptor to the Balanced Output Microphone Pinout This section defines the microphone 6mm jack pinout. Figure 8: Microphone Pinout Audio Input Pinout This section defines the audio input 3.5mm jack pinout. Figure 9: Audio Input Pinout VP-773AMP - Connecting the VP-773AMP...

  • Page 22: The Osd Menu

    The OSD Menu The VP-773AMP OSD menu lets you set the operation parameters for the:  Main Window Control  PIP Window Control  Entire System Control The nature of the operation setup appears in the OSD title, as shown in the...
  • Page 23 PIP window separately (by defining Window Control, see Section 6.8). General characteristics which apply to the entire system (for example, setting the volume) are changed without needing to shift control (the title line will state: Entire System Control). VP-773AMP - The OSD Menu...
  • Page 24 Data is saved per window and per input (to a dedicated input + window memory), as applicable The control buttons let you control the VP-773AMP via the OSD menu. Press the:  MENU (or ) button to enter the menu, exit the menu, and when in the OSD menu, move to the previous level and change menu settings in the OSD screen.

  • Page 25: The Input Menu

    Input Source Select the input source: HDMI1, HDMI2, HDMI3, HDMI4, PC1, PC2, CV or Note that any change in the input source may cancel the freeze and blank settings. VP-773AMP - The OSD Menu...
  • Page 26 Use the front panel + and – buttons, IR remote control transmitter or Web page to set the position and height of the Main and/or PiP windows The PiP window maximum horizontal active image area is 1600 pixels VP-773AMP - The OSD Menu...

  • Page 27: Figure 11: Select The Display Mode

    6.2.1.1 Changing the Size of the Main and/or PiP Window Use the H Width and V Height to change the size of the window using the + and – buttons on the front panel or remote control transmitter (as illustrated in Figure 12). VP-773AMP - The OSD Menu...

  • Page 28: Figure 12: Changing The Size Of The Window

    The following example shows how to increase the width of the window Figure 13: Increasing the Width 4. Select V Height (an OSD slide bar appears) and press + to increase the height, or – to decrease the height, see Figure VP-773AMP - The OSD Menu...

  • Page 29: Figure 14: Increasing The Height

    Use the H Position and V Position items in the OSD to change the position of the window using the + and – buttons on the front panel or remote control transmitter (as illustrated in Figure 15). Figure 15: Positioning the Window VP-773AMP - The OSD Menu...

  • Page 30: Figure 16: Window Customization

    An OSD slide bar appears: Figure 17: H-Position Slide Bar 4. Press the +/- buttons to move the PiP window horizontally. Use the V Position menu item in the same way to move the PiP vertically, Figure VP-773AMP - The OSD Menu...

  • Page 31: Figure 18: Moving The Pip Window

    Figure 18: Moving the PiP Window Note that the sequence in which you change the size and position of the window is insignificant, as long as you make sure that the resized image does not go beyond the window boundaries. VP-773AMP - The OSD Menu...

  • Page 32: The Audio Menu

    Mic1 volume without changing the Line out and Mic2 volume levels. In the Mix mode, set the: Line Mix [dB] – to decrease of the line out volume level without changing the Mic 1 and Mic 2 volume levels VP-773AMP - The OSD Menu...

  • Page 33: Figure 20: Set The Output Volume Level

    Amplifier This submenu item is specific for the power amplifier on top of the general volume level Note that SDI is not applicable to the VP-773AMP and appears Channeling transparent in the OSD. The commands related to SDI in the OSD menu are therefore grayed out.

  • Page 34: The Process Menu

    Set (from Level 1 to Level 5) Select the motion detection sensitivity for filtering of interlaced images. Set a high value for video where there is generally a large amount of motion, or a low value for little motion VP-773AMP - The OSD Menu...

  • Page 35: The Picture Menu

    Set the image color (back to its default values) and position per window (centers it correctly on the screen) See Auto Positioning menu item in Section 6.2 Note that Auto Adjust is disabled when in the Freeze state VP-773AMP - The OSD Menu...

  • Page 36: The Enhance Menu

    Block NR – as the level is set higher, the block noise disappears and the image appears softer Input noise reduction (except for Temporal NR) is enabled for interlaced video processing only and is inactive in the progressive scan. VP-773AMP - The OSD Menu...

  • Page 37: The Scale Menu

    If the native resolution is not supported by the selected Master Connection, the system searches for the best supported resolution. If the search fails (for example, if the master connection is disconnected or EDID is unreadable), the resolution will default to XGA. VP-773AMP - The OSD Menu...
  • Page 38 HDCP compliant, the VP-773AMP always outputs without HDCP and vice versa. Not that the VP-773AMP will output a green screen if the output acceptor to which it is connected is not HDCP compliant, in the case that the video on the Main or PiP window is HDCP encrypted.
  • Page 39 By setting the output resolution to Native, the VP-773AMP is triggered to read the EDID of the main display and change the output resolution value according to the native resolution of the display.

  • Page 40: The Miscellaneous Menu

    Blink – to On for the selected item in the OSD to blink, or Off Blink Period – to determine the blinking rate Timeout – to 30 seconds before OSD timeout, 60 seconds before OSD timeout or OFF (Off means that that the OSD appears continuously) VP-773AMP - The OSD Menu...
  • Page 41 (once restored, the buttons return to their normal function) When using the VP-773AMP for audio only, we recommend that you turn this feature off Luma Keying – to set the transparency level of the PIP window (see Section 6.8.1)
  • Page 42 When the luma keying feature is On, any change in the setup (either by the user or by resetting due to a setup change) may cause the screen to flicker once. The luma keying will recover automatically after resetting. VP-773AMP - The OSD Menu...
  • Page 43 1.0.pdf. The VP-773AMP intercepts XML files over the Ethernet in the CAP format via the dedicated EAS port from the alert generator server (for example, a FEMA server or a proprietary CAP message generation application) for immediate alert message triggering.

  • Page 44: Figure 26: Xml File Transfer

    The Expiration Date field of the CAP XML file determines when the message will expire. Note that you can remove the message sooner by pressing/clicking any of the buttons on the VP-773AMP (front panel or remote control buttons, as well as via the Web page or protocol commands).
  • Page 45 To setup and activate the alert system on the VP-773AMP: 1. Set the dedicated EAS Ethernet connection port type and port number through which the VP-773AMP will be listening, as a client, to intercept alerts. By default, the dedicated EAS port settings are TCP, 5005. To change these setting see the “Emergency Alert Configuration”...

  • Page 46: The Display Modes

    OSD menu. 7.1.1 Activating the Single Window Mode Set the VP-773AMP to the single window display mode in any of the following ways:  Press and hold (for 3 seconds) the illuminated front panel PIP button until the button no longer illuminates ...
  • Page 47 If the HDMI signal is HDCP protected, it can appear on HDMI and HDBT outputs that are connected to supported HDCP compliant displays. However, it cannot appear on a display that is not HDCP compliant and will show a green screen instead. VP-773AMP - The Display Modes...
  • Page 48 6. You can press the MENU button several times to exit the menu and save changes, or modify PiP window parameters via the other menu items. To return to Main Window control, repeat the procedure above but select Main Window in the Window Control submenu. VP-773AMP - The Display Modes...

  • Page 49: Figure 28: Cv Superimposed Over Dp

    7.2.3 Selecting the PIP Source To select a PiP source you have to set the VP-773AMP to any of the PiP display mode configurations and then select the desired input. 7.2.3.1 Selecting the PiP Source via the Front Panel Buttons Press and hold the PIP front panel button while pressing the input button of the required PiP source.
  • Page 50 7. Scroll to the Input menu and press ENTER. 8. Select Input Source and press ENTER. 9. Choose the input for the PiP window. 10. Press the MENU a few times until you exit the OSD menu (changes are saved upon exit). VP-773AMP - The Display Modes...

  • Page 51: Controlling The Vp-773Amp

    The infrared remote control transmitter (see Section 8.4) Controlling via the Front Panel Buttons The VP-773AMP includes the following front panel buttons:  Input selector buttons for selecting the required input: HDMI (1 to 4), PC (1 and 2), CV and DP (see Section 8.1.1)

  • Page 52: Controlling Via The Vp-773Amp Web Pages

    Note that if the Protocol is set to Legacy (via the Miscellaneous menu, Section 6.8), the Web pages may not function properly. Make sure that your PC is connected via a network to the VP-773AMP and do the following: 1. Open your Internet browser.
  • Page 53 To connect to the VP-773AMP via RS-232, connect the RS-232 9-pin D-sub rear panel port on the VP-773AMP unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC.

  • Page 54: Figure 30: Local Area Connection Properties Window

    6. Select Use the following IP Address, and fill in the details as shown in Figure 31. You can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39) that is provided by your IT department. 7. Click OK. Figure 31: Internet Protocol (TCP/IP) Properties Window VP-773AMP - Controlling the VP-773AMP...
  • Page 55 8.3.3.2 Connecting the ETHERNET Port via a Network Hub (Straight- Through Cable) You can connect the Ethernet port of the VP-773AMP to the Ethernet port on a network hub or network router, via a straight-through cable with RJ-45 connectors. 8.3.3.3 Ethernet Port Configuration and Control Use the Kramer K-UPLOAD software to configure the VP-773AMP and the Web pages to control it via the Ethernet.

  • Page 56: Controlling Via The Infrared Remote Control Transmitter

    Controlling via the Infrared Remote Control Transmitter You can control the VP-773AMP from the infrared remote control transmitter (note that the SDI buttons are not applicable for the VP-773AMP): Keys Function POWER Toggle the power save mode ON or OFF...
  • Page 57 This distance can be extended to up to 60 meters when used with three extension cables (Model: C-A35M/A35F-50). Before using the external IR receiver, be sure to arrange for your Kramer dealer to insert the internal IR connection cable (P/N: 505-70434010-S) with the 3.5mm connector that fits into the REMOTE IR opening on the rear panel.

  • Page 58: Port Tunneling

    Port Tunneling The port tunneling feature lets you send and receive simple RS-232 signals between a controller and a serial device via the VP-773AMP which is connected to the Ethernet and outputs via TP cable. The example, illustrated in Figure 33, shows a Kramer room controller that is connected to the VP-773AMP via the Ethernet.
  • Page 59 2. Set the HDBT UART command (the table in Section 12.4). By default, the settings are 9600,8,N,1 3. Make sure that the VP-773AMP is connected to Ethernet. The VP-773AMP is now ready to tunnel RS-232 signals via Ethernet port tunneling. VP-773AMP - Port Tunneling...

  • Page 60: Flash Memory Upgrade

    Flash Memory Upgrade You can upgrade the VP-773AMP via the Kramer K-UPLOAD software. Two types of upgrade files are available for upgrade: video core and audio/graphics (*.fct) and peripherals (*.kfw). The latest firmware version, the Flash Memory Upgrade user guide, as...

  • Page 61: Technical Specifications

    19" (W), 9.3" (D) 1U (H) rack mountable WEIGHT: 2.5kg (5.5lbs) approx. Power cord, rack “ears”, IR remote control ACCESSORIES: Specifications are subject to change without notice For the most updated resolution list, go to our Web site at http://www.kramerelectronics.com VP-773AMP - Technical Specifications...

  • Page 62: 11.1 Default Communication Parameters

    1024x768_85 1440x900_60 625_P50 1080_P25 800x600_56 1152x864_75 1400x1050_60 720_P24 1080_P30 800x600_60 1280x800_60 1400x1050_75 720_P25 1080_P50 800x600_72 1280x960_85 1600x900_60 720_P30 1080_P60 800x600_75 1280x768_60 1600x1200_60 720_P50 2K50 800x600_85 1280x1024_60 1680x1050_60 720_P60 2K60 848x480_60 1280x1024_75 1920x1200_60RB 1080_I50 640X480_60 1024x768_60 1280x1024_85 VP-773AMP - Technical Specifications...

  • Page 63: 11.3 Output Resolutions

    1280x1024@60 1920x1200@60 1080p29.97 800x600@50 1280x1024@75 480i60 1080p30 800x600@60 1360x768@60 480p60 1080p50 800x600@75 1366x768@50 576i50 1080p59.94 1024x768@50 1366x768@60 576p50 1080p60 1024x768@60 1400x1050@50 720p50 2K50 1024x768@75 1400x1050@60 720p59.94 2K60 1280x768@50 1600x900@60 720p60 1280x768@60 1600x1200@50 1080p23.976 1280x800@60 1600x1200@60 1080p24 VP-773AMP - Technical Specifications...

  • Page 64: The Vp-773Amp Rs-232 Communication Protocol

    The VP-773AMP RS-232 Communication Protocol The Kramer Protocol lets you control the VP-773AMP from any standard terminal ® software (for example, the Windows HyperTerminal Application). 12.1 Using the Communication Protocol There are three different methods to control the VP-773AMP RS-232 or the Ethernet: ...

  • Page 65: 12.2 Communication Protocol: Mimicking Osd

    SET or third in GET, to define a specific window. For example: Set H Sharpness value to 10 on the PiP window (1): “#y 0,510,10,1” Get H sharpness of the Main window (0): “#y 1,510,0” VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 66 Example 2: get current output resolution. (4 = SVGA) Send: Y1631[CR] Reply: Z16314[CR][LF] Character Symbols Definitions Symbol Meaning Space [CR] Carriage Return, ASCII code 0x0D [LF] or > Line Feed, ASCII code 0x0A VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 67 Auto Positioning Not applicable to HD/SD video types Normal Scan Wide Scan HDCP Mode EDID Select 1024x768@60 Applicable to input types with EDID 1280x800@60 only 1280x1024@60 1366x768@60 1440x900@60 1400x1050@60 1600x900@60 1600x1200@60 1680x1050@60 1920x1200@60RB VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 68 Unavailable in audio pass-through. Depth Talkover is disabled Mic2 Talkover -100:23 [dB] in Mix mode Trigger Embedded Pass-through Unavailable for non- embedded audio Analog Takeover Unavailable in audio pass-through Delay Lip Sync 0:90 [ms] VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 69 Unavailable in MD Sensitivity LEVEL1 progressive scan LEVEL2 LEVEL3 LEVEL4 LEVEL5 In the OSD menu Picture Brightness -400:400 the range appears as -80:80 Contrast 0.1:1.6 Color 0.1:1.6 Color Blue Correction Green VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 70 1. GET command in native mode returns 640x480@60 the determined 640x480@75 resolution of the master connection 800x600@50 2. Special OSD 800x600@60 MENU screen, follow OSD 800x600@75 instructions 1024x768@50 1024x768@60 1024x768@75 1280x768@50 1280x768@60 1280x800@60 VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 71 Not applicable to YPbPr422 PC output. Screen may flicker YPbPr444 HDCP Mode Follow Output Follow Input Zoom Position H Position 0:2047 Value range is dynamic, FW prevents zoom from V Position 0:2047 exceeding the boundaries VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 72 Input video format only PALNC NTSC_8 525p60 625p50 720p60 720p50 720p24 720p25 720p30 1080i60 1080i50 1080i100 1080p60 1080p50 1080p30 1080p23_976 1080p24 1080p25 2K50 2K60 640X480@60 640x480@72 640x480@75 848x480@60 640x480@85 800x600@56 800x600@60 VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 73 Advanced V Keystone -400:400 In the OSD menu the value range shows -80:80. Unavailable for interlaced output Auto Sync Off Two idle minutes are required to trigger screen shutdown Luma Keying Volatile parameter. VP-773AMP - The VP-773AMP RS-232 Communication Protocol...

  • Page 74: 12.3 Protocol Table: Mimicking Remote And Front Panel Buttons

    Code Code MENU CH1_VGA1 CH2_HDMI1 ENTER CH1_VGA2 CH2_HDMI2 MINUS CH1_HDMI1 CH2_HDMI4 PLUS CH1_HDMI2 CH2_DP RESET CH1_HDMI4 CH2_SDI CH1_DP MUTE BLANK CH1_SDI POWER FREEZE CH2_CV1 LEFT LOCK CH2_HDMI3 RIGHT CH1_CV1 CH2_VGA1 DUMMY CH1_HDMI3 CH2_VGA2 VP-773AMP - The VP-773AMP RS-232 Communication Protocol...

  • Page 75: 12.4 The Protocol 3000 Common Operation Commands

    “3” to notify crawler activation mode (Severity = Moderate \ Minor \ Unknown) “0” to notify that the alert went off either by timeout or by keystroke SET dedicated port PTNL-CFG PORTTYPE, PTNL-CFG CFG PORTTYPE, tunneling settings PORTNUM PORTNUM RESULT VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 76 Set dual window state PIP PIP-MODE PIP PIP-MODE RESULT Get dual window state PIP? PIP PIP-MODE Parameters Description: PIP-MODE = Dual window state: "0" or "off" for single window. "1" or "on" to for dual window. VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 77 NTMSK? Set gateway NET-GATE NET-GATE GATEWAY_ADDRESS address GATEWAY_ADDRESS RESULT NTGT Read subnet NET-GATE? NET-GATE mask GATEWAY_ADDRESS NTGT? Set DHCP NET-DHCP DHCP_MODE NET-DHCP DHCP_MODE mode RESULT NTDH Read subnet NET-DHCP? NET-DHCP DHCP_MODE mask NTDH? VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 78 Response 2: LDFWS SIZE RESULT Load new Step 1: LDMFS SIZE audio/graphic Response 1: READY or LDMFS SIZE ERR### memory file Step 2: If ready was received, send FIRMWARE_DATA Response 2: LDMFS SIZE RESULT VP-773AMP - The VP-773AMP RS-232 Communication Protocol...
  • Page 80 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
