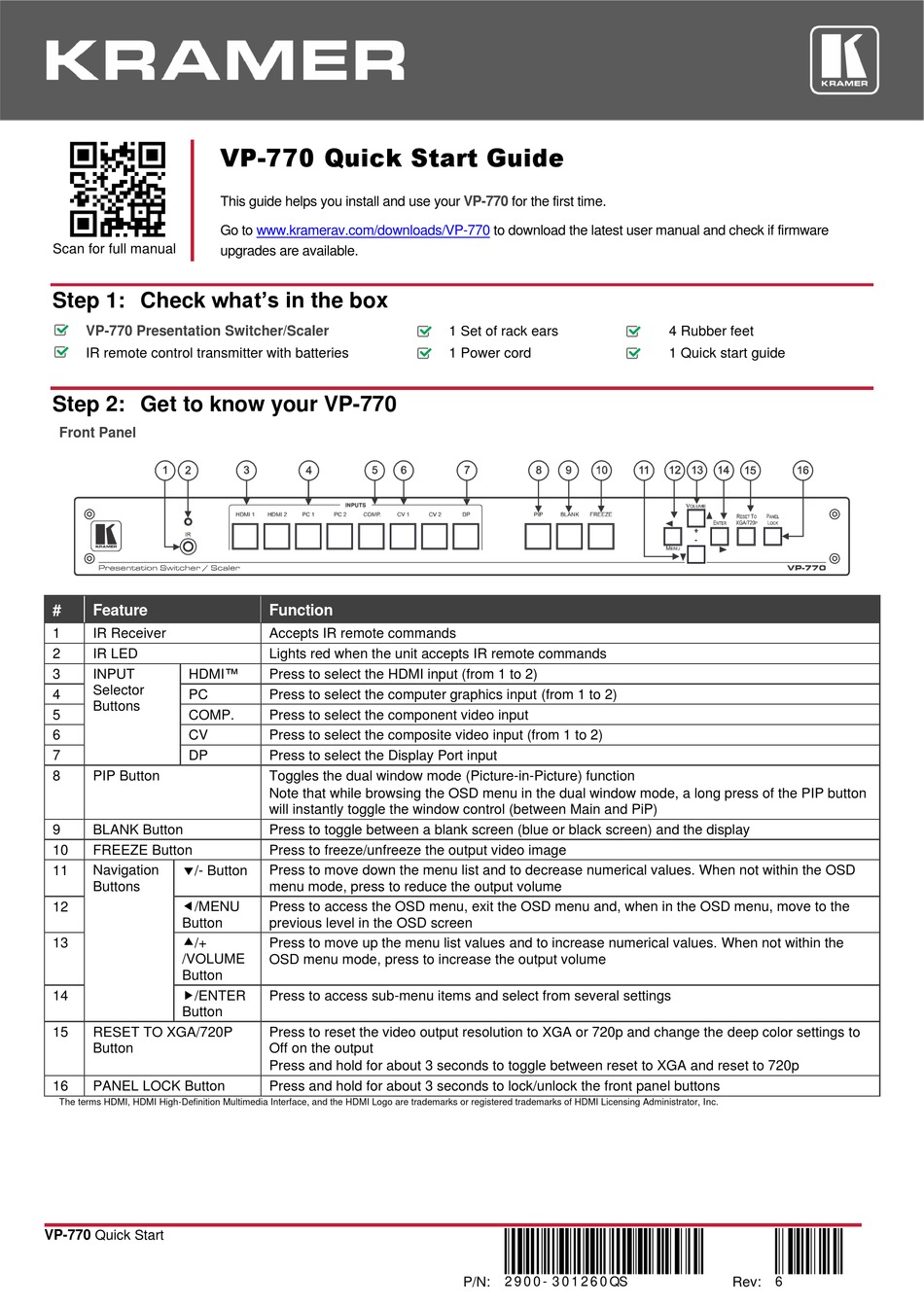

Kramer VP-770 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

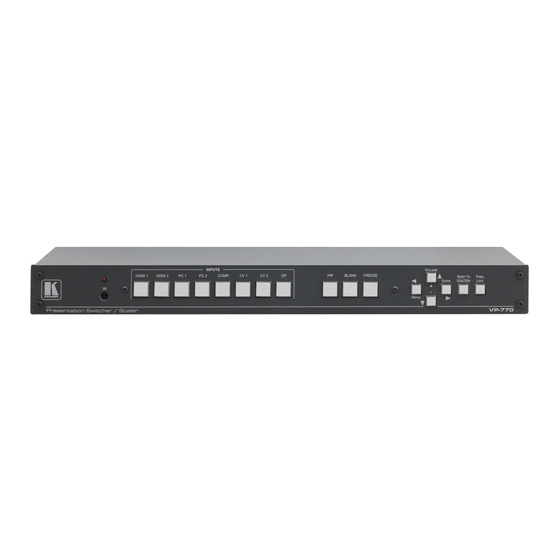

VP-770 Presentation Switcher/Scaler
IR remote control transmitter with batteries
Step 2: Get to know your VP-770
Front Panel
# Feature
1 IR Receiver
2 IR LED
3 INPUT HDMI™
Selector
4 PC
Buttons
5 COMP.
6 CV
7 DP
8 PIP Button
9 BLANK Button
10 FREEZE Button
/- Button
Navigation
11
Buttons
/MENU
12
Button
/+
13
/VOLUME
Button
/ENTER
14
Button
15 RESET TO XGA/720P
Button
16 PANEL LOCK Button
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VP-770 Quick Start
VP-770 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VP-770
upgrades are available.
Function
Accepts IR remote commands
Lights red when the unit accepts IR remote commands
Press to select the HDMI input (from 1 to 2)
Press to select the computer graphics input (from 1 to 2)
Press to select the component video input
Press to select the composite video input (from 1 to 2)
Press to select the Display Port input
Toggles the dual window mode (Picture-in-Picture) function
Note that while browsing the OSD menu in the dual window mode, a long press of the PIP button
will instantly toggle the window control (between Main and PiP)
Press to toggle between a blank screen (blue or black screen) and the display
Press to freeze/unfreeze the output video image
Press to move down the menu list and to decrease numerical values. When not within the OSD
menu mode, press to reduce the output volume
Press to access the OSD menu, exit the OSD menu and, when in the OSD menu, move to the
previous level in the OSD screen
Press to move up the menu list values and to increase numerical values. When not within the
OSD menu mode, press to increase the output volume
Press to access sub-menu items and select from several settings
Press to reset the video output resolution to XGA or 720p and change the deep color settings to
Off on the output
Press and hold for about 3 seconds to toggle between reset to XGA and reset to 720p
Press and hold for about 3 seconds to lock/unlock the front panel buttons
VP-770 for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power cord
P/N: 2 9 0 0 - 3 0 1 2 6 0 QS
4 Rubber feet
1 Quick start guide
Rev: 6
