Summary of Contents for Atlona AT-HD-V112

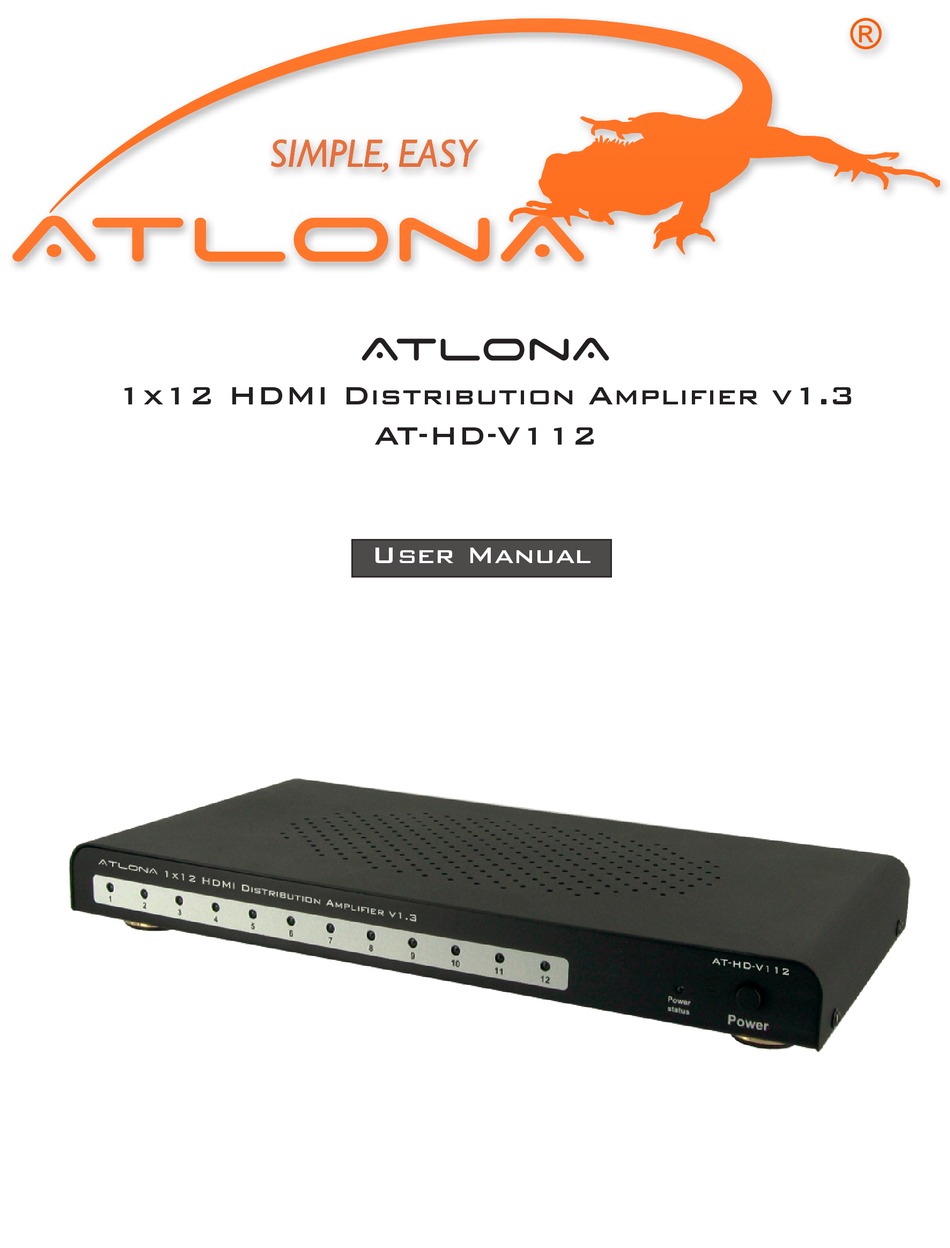

  • Page 1 AtlonA 1x12 HDMI Distribution Amplifier v1.3 AT-HD-V112 User Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. Operation Controls and Functions ......3.1 Front Panel ..........3.2 Rear Panel ..........4. Connection and Installation ........5. Specifications ..........11. Safety ..........12. Warranty ..........
  • Page 3: Introduction

    Introduction The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the support to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital au- dio, with a high bandwidth up to 10.2Gbps.
  • Page 4: Operation Controls And Functions

    Panel Descriptions Front Panel 1. Indicator of HDMI output. When an HDMI equipment is connected, the corresponding LED lit. 2. Power Button. When power on,the Power status LED lit. rear Panel 1. Power input. 2. HDMI output ports 3. HDMI input port.
  • Page 5: Connection And Installation

    Connection and Installation Monitors up to 12 Specifications Operating temperature range …………..…….…… -5 to +35 C(-41 to +95 Operating humidity range ……………………… 5 to 90 % RH (no condensation) Video Amplifier Bandwidth ....…....140mHz Input Video Signal ......... 0.5-1.0 volts p-p Input DDC Signal .........
  • Page 6: 11. Safety

    Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features.
  • Page 7: 12. Warranty

    Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
