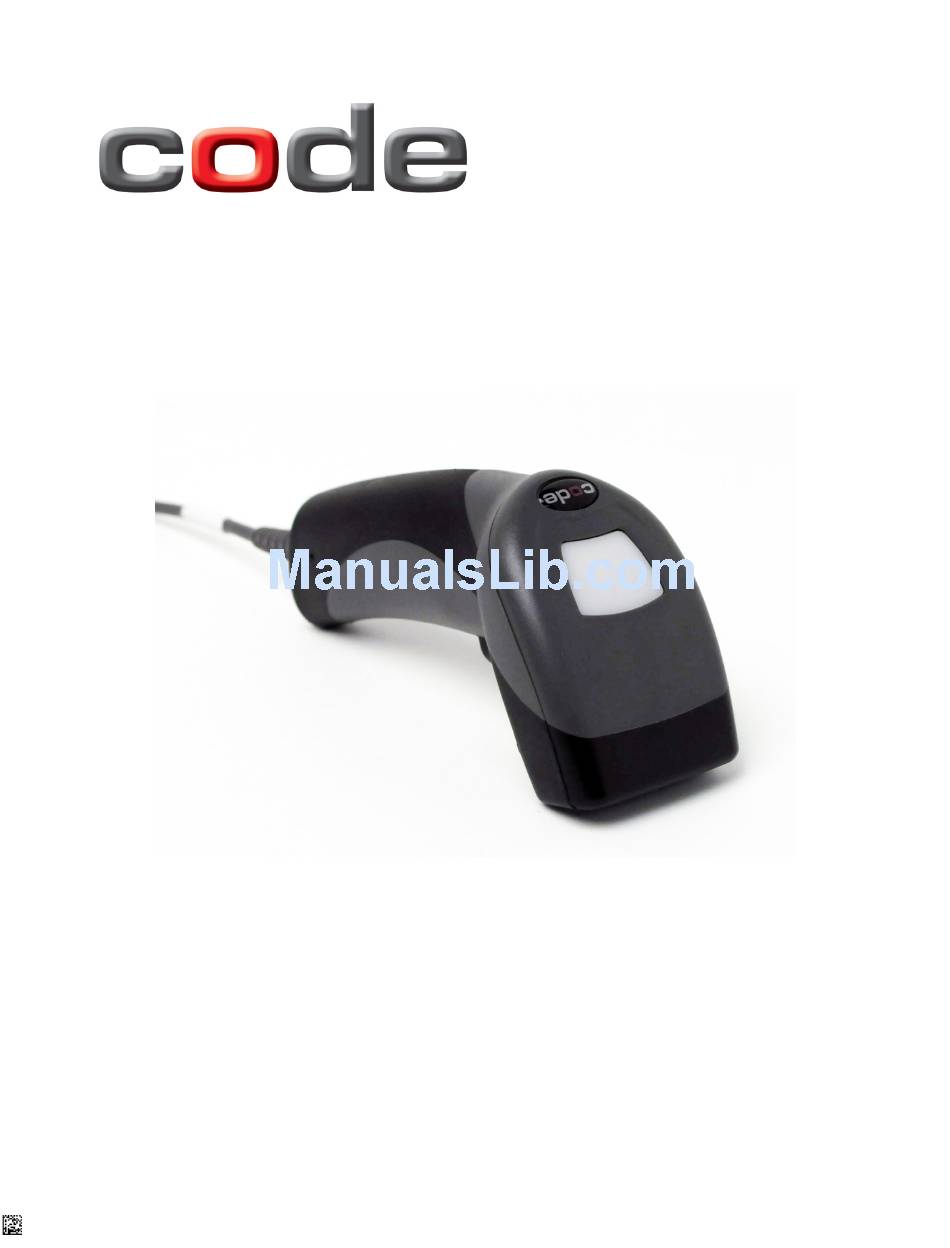

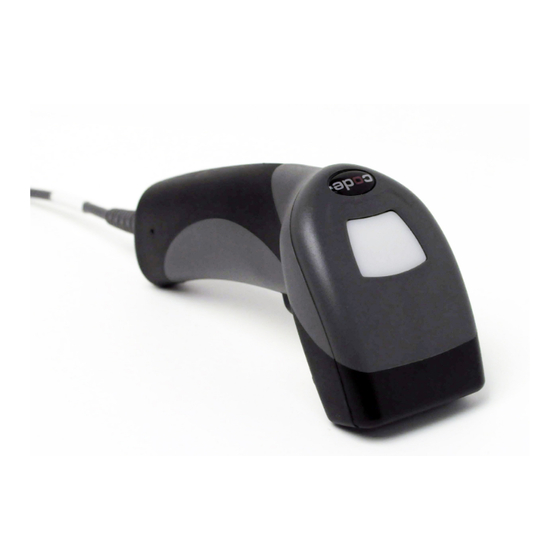

- Page 1 User Manual Code Reader™ 1400 Manual Version 03 Release Date: June 2012 C006819_03_CR1400_User_Manual C006819_03_CR1400_UserManual...
-
Page 2: Statement Of Agency Compliance
Statement of Agency Compliance The Code Reader™ 1400 (CR1400) has been tested for compliance with FCC regulations and was found to be compliant with all applicable FCC Rules and Regulations. IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be co- located or operate in conjunction with any other antenna or transmitter. - Page 3 NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part of Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Code Corporation reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Code Corporation to determine whether any such changes have been made.
-
Page 4: Table Of Contents
Table of Contents 1.0 - Unpacking................................1 2.0 - Attaching/Detaching a Cable ........................... 1 3.0 - Powering the Reader On/Off ........................... 1 4.0 - Using a CR1400 Out of a Stand ..........................2 5.0 - Using a CR1400 in a Stand ............................2 6.0 - Reading Range ................................ -
Page 5: Unpacking
1.0 - Unpacking Remove the CR1400 from its packing and inspect it for damage. If the reader was damaged during shipping, please call Code at (801) 495-2200. Depending on the kit ordered, a USB or RS232 Affinity® cable has been included with your reader. -
Page 6: Using A Cr1400 Out Of A Stand
When the CR1400 is removed from the stand, the reader switches to manual mode and the trigger must be pressed to read a bar code (refer to Section 4.0). Revision 1 Hardware of the CR1400 does not have an automatic stand detection feature to enable motion detection reading when the CR1400 is in a stand. -
Page 7: Reading Range
6.0 - Reading Ranges CR1400 Performance Test Code Min Inches (mm) Max Inches (mm) 3 mil Code 39 3.9” (100 mm) 5.0” (125 mm) 7.5 mil Code 39 2.2” (55 mm) 8.0” (205 mm) 13 mil UPC 2.0” (50 mm) 10.8”... -
Page 8: Symbologies Defaulted On
CR1400 Configuration Guide located on our website at http://www.codecorp.com. Interleaved 2 of 5, 2 Digits Codablock F Macro PDF417 Code 11 Maxicode Code 39 Extended Full ASCII Matrix 2 of 5 Code 39 Checksum Micro PDF417 Composite Data Matrix Rectangle... -
Page 9: Reader Id & Firmware Version
Example: Xap/i3000300006040010002363A06D-SD+SQ Note: Code will periodically release new firmware for CR1400 readers. For information on latest firmware versions, call Code at (801) 495-2200. To upgrade firmware, please visit our website at http://www.codecorp.com/ codesupport.php and follow instructions provided. -
Page 10: Cr1400 Overall Dimensions
12.0 - CR1400 Overall Dimensions C006819_03_CR1400_User_Manual... -
Page 11: Usb Cable Example With Pinouts
13.0 - USB Cable Example with Pinouts See Section 15.0 for complete reader pinouts descriptions. NOTES 1. Part to be ROHS and Reach compliant. 2. Maximum Voltage Tolerance = 5V +/- 10%. 3. Caution: Exceeding the maximum voltage will void manufacturer warranty. 14.0 - RS232 Cable Example with Pinouts NOTES 1. -
Page 12: Reader Pinouts
7) Virex® II Disinfectant Cleaner Technical Support and Returns For returns or technical support call Code Technical Support at (801) 495-2200. For all returns Code will issue an RMA number which must be placed on the packing slip when the reader is returned. -
Page 13: Warranty
Products must be shipped in the original or comparable packaging, with shipping and insurance charges prepaid. Only parts listed in the original RMA should be sent and will be accepted. Code will pay for return shipping and insurance of repaired or replacement products worldwide.
