Code Reader 1000 User Manual

Hide thumbs Also See for Code Reader 1000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual

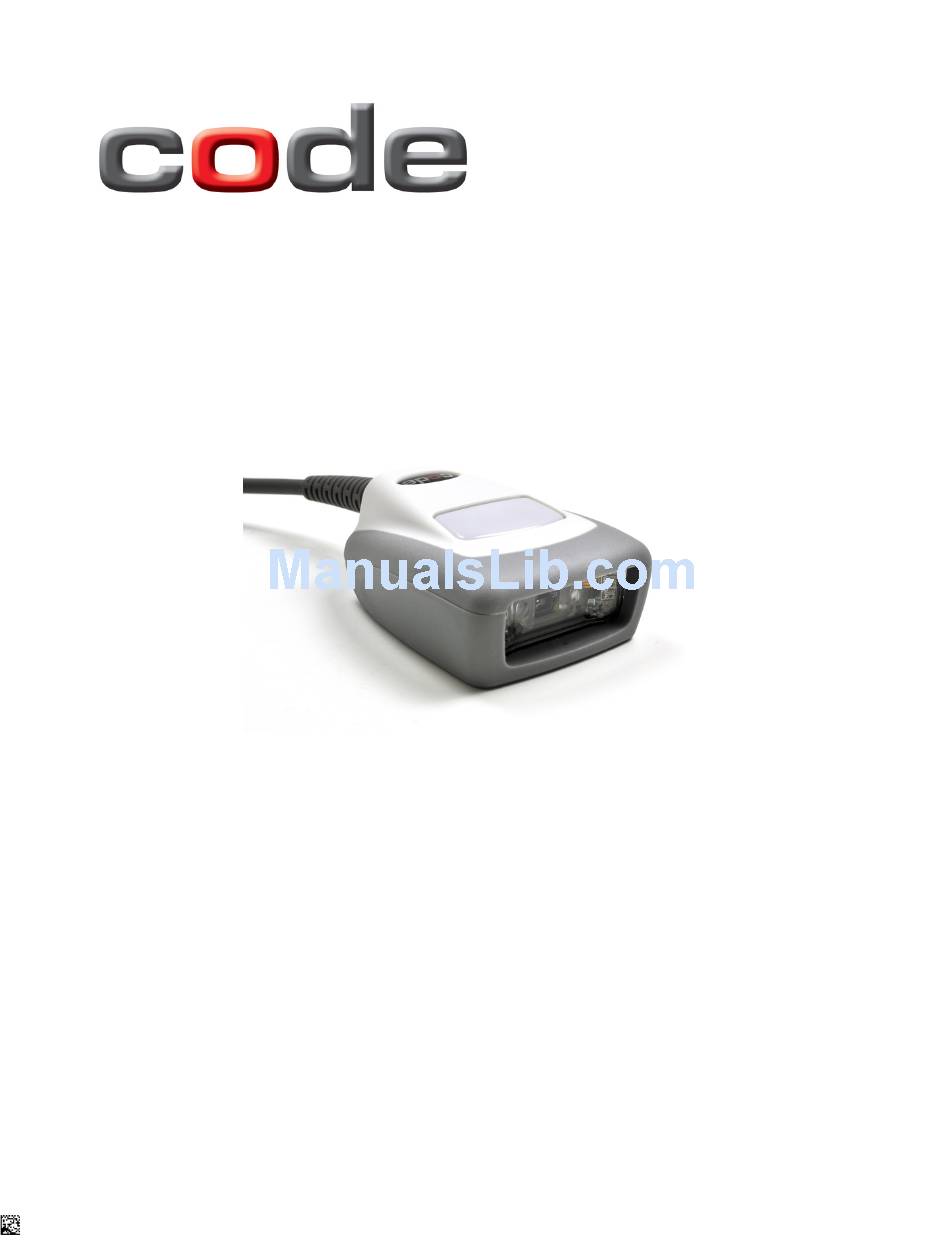

User Manual
Code Reader ™ 1000
Manual Version 04
Release Date:
January 2013
C005905_04_CR1000_User_Manual
C005905_04_CR1000_UserManual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Code Reader 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Code Code Reader 1000

Summary of Contents for Code Code Reader 1000

  • Page 1 User Manual Code Reader ™ 1000 Manual Version 04 Release Date: January 2013 C005905_04_CR1000_User_Manual C005905_04_CR1000_UserManual...

  • Page 2: Statement Of Agency Compliance

    The Code Reader 1000 has been tested for compliance to CE standards and guidelines and was found to conform to applicable CE standards, specifically the EMC requirements EN 55024, ESD EN 61000-4-2, Radiated RF Immunity EN 61000-4-3, ENV 50204, EFT EN 61000-4-4, Conducted RF Immunity EN 61000-4-6, EN 55022, Class B Radiated Emissions, and Class B Conducted Emissions.
  • Page 3 NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part of Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Code Corporation reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Code Corporation to determine whether any such changes have been made.

  • Page 4: Table Of Contents

    Table of Contents 1.0 - Unpacking................................1 2.0 - Attaching/Detaching a Cable ........................... 1 3.0 - Powering the Reader On/Off ........................... 1 4.0 - Using a CR1000 Out of a Stand ..........................2 5.0 - Using a CR1000 in a Stand ............................2 6.0 - Reading Range ................................

  • Page 5: Unpacking

    1.0 - Unpacking Remove the CR1000 from its packing and inspect it for damage. If the reader was damaged during shipping, please call Code at (801) 495-2200. Depending on the kit ordered, a USB or RS232 Affinity® cable has been included with your reader.

  • Page 6: Using A Cr1000 Out Of A Stand

    Press and hold the button on the top of the CR1000, the two blue bars emitting from the reader are used for targeting. Center the blue bars in the middle of a bar code. The optimal reading distance from reader to bar code is approximately 4.0” (10 cm).

  • Page 7: Reading Range

    6.0 - Reading Ranges CR1000 Performance Test Code Min Inches (mm) Max Inches (mm) 3 mil Code 39 3.1” (80 mm) 4.0” (102 mm) 7.5 mil Code 39 1.3” (33 mm) 7.2” (182 mm) 10.5 mil GS1 DataBar 0.8” (20 mm) 8.7”...

  • Page 8: Symbologies Defaulted On

    CR1000 Configuration Guide located at website at http://www.codecorp.com. Matrix 2 of 5 Aztec Inverse Micro PDF417 Code 11 Micro QR Code 32 Code 39 Extended Full ASCII MSI Plessey Plessey Code 39 Checksum QR Code Inverse Composite Straight 2 of 5...

  • Page 9: Reader Id & Firmware Version

    Example: Xap/i3000300006040010002363A06D-SD+SQ Note: Code will periodically release new firmware for CR1000 readers. For information on latest firmware versions, call Code at (801) 495-2200. To upgrade firmware, please visit our website at http://www.codecorp.com/ codesupport.php and follow instructions provided.

  • Page 10: Hole Mounting Pattern

    12.0 - CR1000 Hole Mounting Pattern NOTE 1: LOCATING HOLES ARE 2MM IN DIAMETER, HOLE DEPTH is 1.5 MM NOTE 2: MOUNTING INSERTS ARE M3-.5 INTERNAL THREAD, 3.8MM LENGTH 13.0 - CR1000 Overall Dimensions C005905_04_CR1000_User_Manual...

  • Page 11: Usb Cable Example With Pinouts

    14.0 - USB Cable Example with Pinouts See Section 16.0 for complete reader pinouts descriptions. NOTES 1. Part to be ROHS and Reach compliant. 2. Maximum Voltage Tolerance = 5V +/- 10%. 3. Caution: Exceeding the maximum voltage will void manufacturer warranty.

  • Page 12: Reader Pinouts

    7) Virex® II Disinfectant Cleaner Technical Support and Returns For returns or technical support call Code Technical Support at (801) 495-2200. For all returns Code will issue an RMA number which must be placed on the packing slip when the reader is returned.

  • Page 13: Warranty

    (regardless of the form of action, whether by contract, warranty, tort, malpractice, and/or otherwise) resulting from the use of any product, shall in no way exceed the purchase price of said product. In no event shall Code be liable for any consequential, special, indirect, incidental or punitive damages, or for any loss of profits, revenue or data, even if Code has been advised of the possibility thereof.
