Compatibility:
• 564 SS Fireplace
• 564 Electric Fireplace
The center deflectors must be in place when using this face to prevent
the facing above the fireplace from becoming too hot. If this face is
replacing a Lopi Grill (96200801), make sure to replace the center
deflectors.
Installation Details – 564 SS
Page 1 of 6

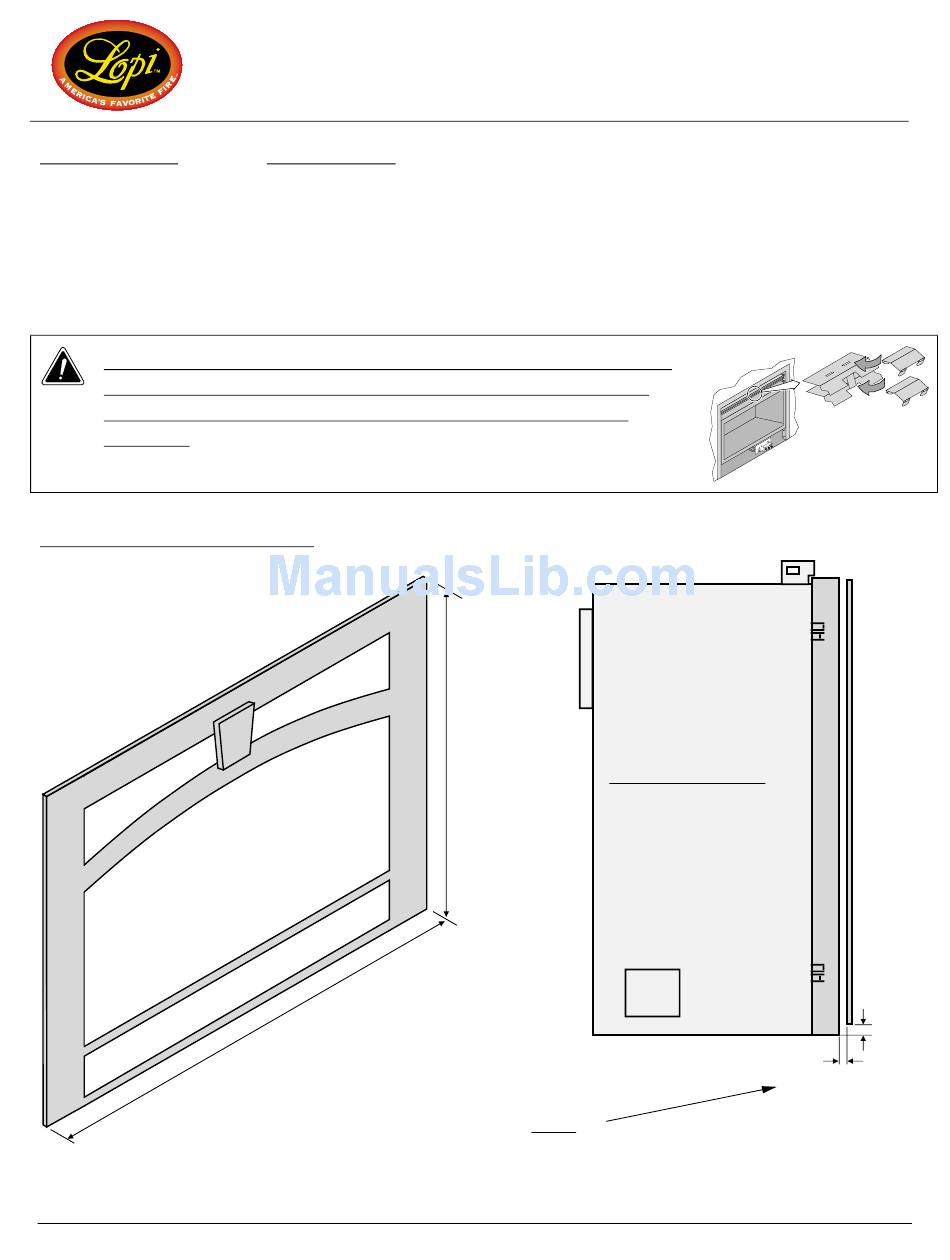

Bostonian (564) Wilmington Face
Black 95400186
Packing List:
• Face
• 564 SS Glass Frame Cover
• (2) 564 SS Top Brackets (w screws)
• (2) 564 SS Upper Mounting Brackets
• (2) 564 SS Lower Mounting Brackets
• (2) 10-24 1-1/2" Screws (564 SS only)
36"
Nickel 95400187
29"
SIDE OF FIREPLACE
NOTE:
This face has an adjustable bracket that allows for
different facing depths to be tucked under the face.
8/17/07
• 564 E Side and Hinge Brackets
• 564 E Upper Heat Shield
• 564 E Cove Cover
• (14) 8-32 Nuts
0" TO 1"
© Travis Industries, Inc.
1"
