• Step 5 - Secure Window Shutter
CAUTION
Do not drill into window sash until window has been inspected to make sure drilling or
screw will not damage any locking or lifting mechanism located in the frame.
To provide a proper seal, pull each expandable side Window Shutter out
and up until it is tight against the window frame. Using the hole in the top
and bottom of each Window Kit Frame as a guide, secure Window Kit
Frame in window sash and on the window sill.
• Step 6 - Recheck Installation
To be sure you have correctly installed your Room Air Conditioner, review the steps and make sure all of the
parts are securely fastened in the window as the instructions show. A tight seal is essential.
Read through the Use & Care manual to become familiar with the operation of your room air conditioner.
CAUTION
Do not lift window sash without holding the unit. The window sash helps keep the unit in the window.
Exercise caution when opening the window. Failure to do so many result in personal injury and/or
property damage.

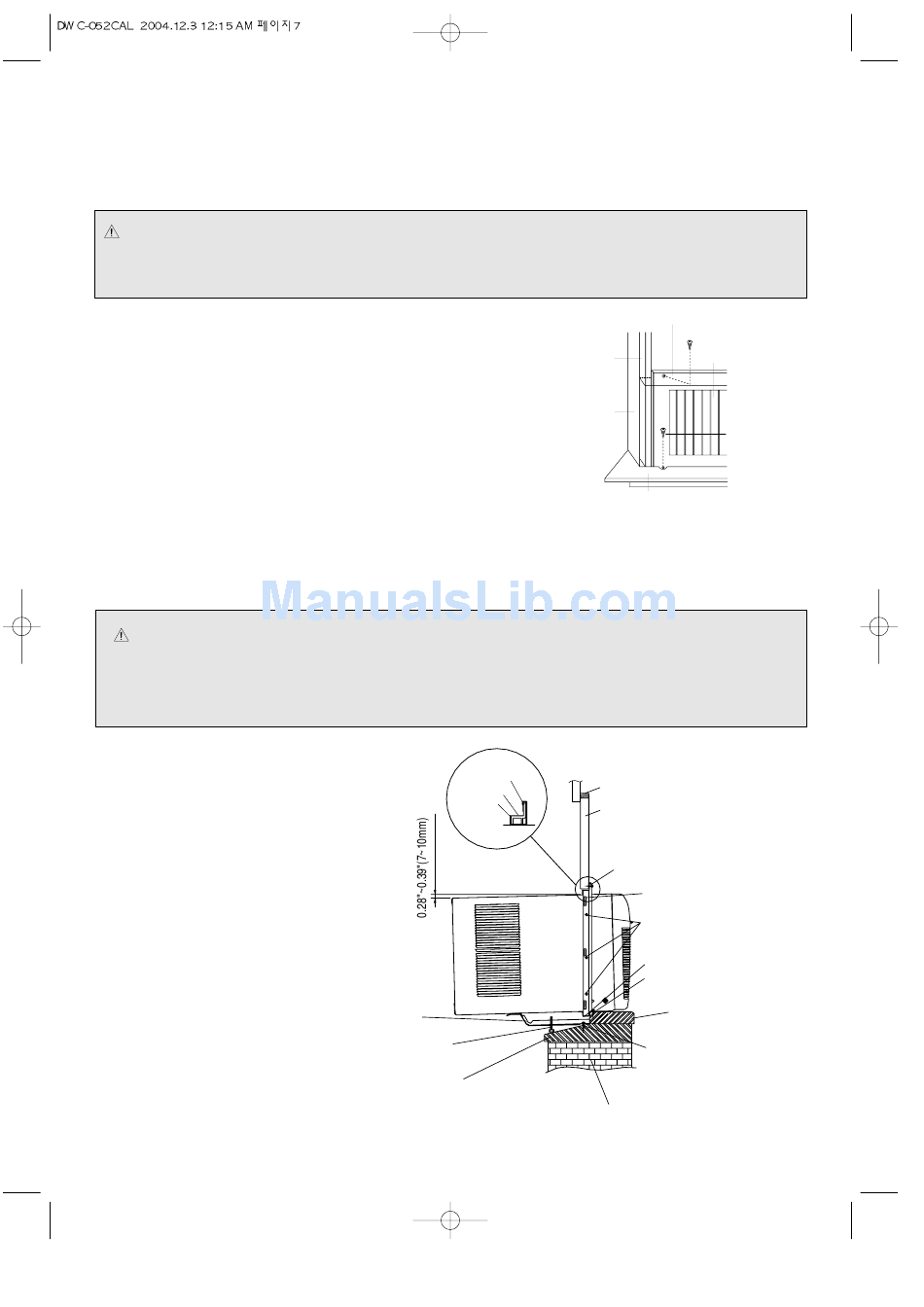

• Step 7 - Recheck the Entire Installation
TOP GUIDE
WINDOW KIT FRAME
WINDOW SEAL B
SILL BRACKET(1 piece)
Leveling Screw (Type A, 1 piece)
OUTER WINDOW SILL
7
WINDOW
KIT FRAME
Screw (Type C)
WINDOW
WINDOW
SASH
SHUTTER
WINDOW
FRAME
Screw (Type C)
INNER WINDOW SILL
WINDOW SEAL A
WINDOW SASH
Screw (Type C, 2 pieces)
WINDOW KIT 'R & 'L
Screw (Type D, 2x3=6 pieces)
GUIDE LOWER
Screw (Type C, 2 pieces)
SILL
Screw (Type B, 2 pieces)
WALL
