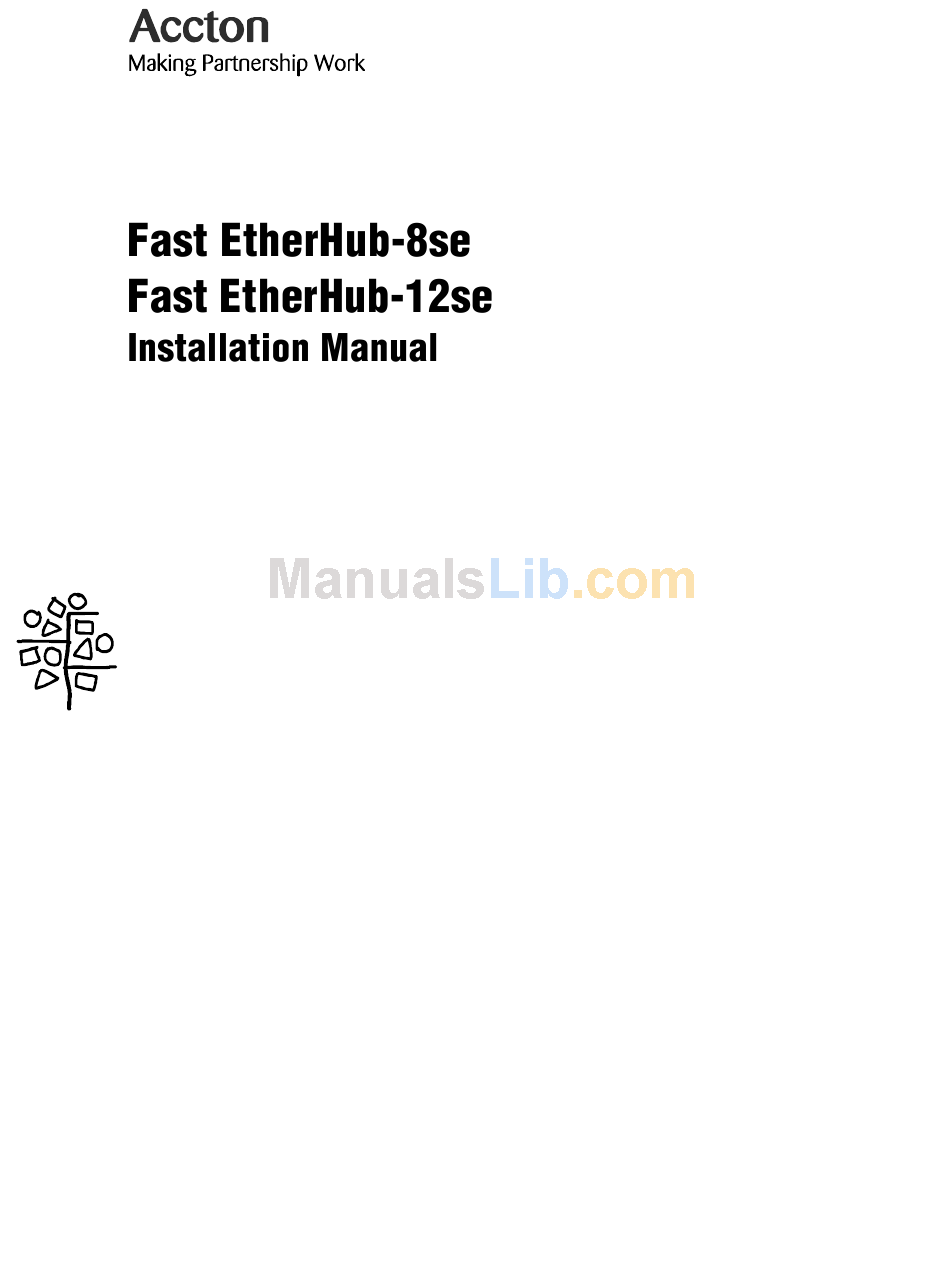

- Page 2 Installation Manual Stackable Fast Ethernet Hub with 8/12 10BASE-T/100BASE-TX Ports...
-
Page 3: General Description
Fast EtherHub Installation Manual INTRODUCTION General Description The EH3008C and EH3012C 100BASE-TX 8/12 port stackable hubs are entry level 100Mbps Fast Ethernet hubs. They are built around a standard 19-inch chassis which allows stand-alone or rack-mounted operation. These 100BASE-TX 8/12 port stackable hubs are economical Fast Ethernet hubs with 8/12 100BASE-TX (RJ-45) ports for workstation connection. - Page 4 Fast EtherHub Installation Manual Key Features Compliant with the IEEE802.3u 100Mbps repeater specification 8/12 100BASE-TX ports for Fast Ethernet connectivity 19-inch rack mountable Supports Category 5 unshielded twisted-pair cabling (UTP) Stackable architecture supports up to 4 hubs with 100BASE-TX An uplink port on the front panel for cascading to another 100BASE-TX hub (when the hub is not stacked) Individual port status LEDs for LINK/ACTIVITY and ERROR indication...
- Page 5 Fast EtherHub Installation Manual Package Contents Check your package contents for the following parts: 8/12 port 100BASE-TX Fast Ethernet Stackable Hub (Fast EtherHub-8se or Fast EtherHub-12se) Power Cord Stackable Cable (D-Sub 25 pins) Rack-mount Kit User’s Manual If any of these pieces are missing or are damaged, please contact your...
-
Page 6: Hardware Description
Fast EtherHub Installation Manual Hardware Description The Front Panel The front panel contains the 8/12 Shielded Twisted-Pair (STP) ports, one uplink port, and LED indicators. Shielded Twisted- Pair (STP) ports Use any one of the STP ports for connection to a 100BASE-TX node using Category 5 UTP cabling. - Page 7 Fast EtherHub Installation Manual LED indicators The front panel LED indicators help you monitor the status of each port and connected segments. There are 4 different LEDs on the front panel; including power (PWR), collision (COL), LINK/ACTIVITY and ERROR. This table lists the LEDs and their respective functions. LED Function Color Description...
- Page 8 Fast EtherHub Installation Manual The Rear Panel The rear panel of the hub contains the power socket , 2 D-Sub connectors (25 pins) and air fans. ower Socket The power socket accepts AC power of 100 - 240V at 50 - 60 Hz.
-
Page 9: Hardware Installation
Fast EtherHub Installation Manual HARDWARE INSTALLATION Quick Installation Procedure Place the hub on a smooth surface or mount it on a rack. Connect power cord to hub and plug in. Connect workstations to hub using Category 5 UTP cabling. Plug an RJ-45 connector into any port on the hub (other than the Uplink port), and plug the other end into the RJ-45 port on the workstation’s Fast Ethernet card. - Page 10 Fast EtherHub Installation Manual Select an Appropriate Location A good location is at or near the center of all the computers you want to link, close to the trunk segment and the other devices you want to connect, and near a convenient power outlet. The cable route should not be near any power lines.
- Page 11 Fast EtherHub Installation Manual Setting Up 100BASE-TX Stackable Hubs Put the 100BASE-TX stackable hub on the flat surface. Ensure the power is off before stacking the hub. Attach the power cord and turn on power to the hub. Connect one end of the D-Sub (25 pins) stack cable to the OUT port on the first hub and the other end to the IN port on the next hub in the stack.
- Page 12 Fast EtherHub Installation Manual CONFIGURATION Standard-Alone The configuration of a simple stand-alone hub is illustrated as below. The maximum distance between the hub and the workstation is 100 meters.
- Page 13 Fast EtherHub Installation Manual Uplink Multiple Hubs If you want to connect more than 8/12 ports, you can use the uplink port to connect to another hub. In compliance with the IEEE802.3u Class II specification, two repeaters can be cascaded using 5 meters of cable in a single collision domain.
- Page 14 Fast EtherHub Installation Manual Stacking Multiple Hubs The 100BASE-TX stackable hub comes with stackable backplane port for cascading up to 4 hubs. As your network grows, this stackable feature allows you to add additional units for expansion. Depending on the models used, you will be able to stack up to 32/48 ports. Note the hubs follow Class I repeater standards when stacked.
-
Page 15: Troubleshooting
Fast EtherHub Installation Manual TROUBLESHOOTING This chapter contains information to help you solve problems. If these hubs are not functioning properly, make sure they were set up according to instructions in this manual. If the hubs don ’ t connect to the network: Check the LINK/ACTIVITY LED lights on the front panel. - Page 16 Fast EtherHub Installation Manual Other Important Tips Make sure no more than 100 meters of cable are used between the hub and the desktop. Verify that the cabling type used is correct. (Category 5 UTP cable) Make sure the network adapter cards installed in the workstations and cable connections are in good working condition.
-
Page 17: Product Specifications
Fast EtherHub Installation Manual PRODUCT SPECIFICATIONS Standard IEEE802.3u, 100BASE-TX Class I and II repeater 100BASE-TX UTP ports 8/12 Uplink port Hub port # 8/12 Cable Distance 5 meters for repeater to repeater 100 meters for repeater to station Cabling STP/UTP Category 5 wiring, 100-ohm impedance Expandability 32/48 ports in class I stackable mode LED indications... -
Page 18: Emi Warning
Fast EtherHub Installation Manual EMI Warning FCC Class A Certification This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Ce Mark Declaration Of Conformance
Fast EtherHub Installation Manual CE Mark Declaration of Conformance This is to certify that this product complies with ISO/IEC Guide 22 and EN45014. It conforms to the following specifications: EMC: EN55022(1988)/CISPR-22(1985) EN60555-2(1987) IEC 1000-4-2(1995)/IEC801-2(1991) 4kV CD, 8kV AD IEC 1000-4-3(1995)/IEC801-3(1984) 3V/m IEC 1000-4-4(1995)/IE8C01-4(1988) 1kV - (power line) This product complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC. -
Page 20: Warranty
ACCTON NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY OTHER LIABILITY. Copyright Copyright 1997 by Accton Technology Corporation. All rights reserved. Product specification are subject to change without notice. All trademarks or brand names are properties of their respective companies. Disclaimer The publisher assumes no responsibility for errors that may appear in this document, nor does it make any commitment to update information it contains. - Page 21 EH3008C EH3012C E0797-R01...
