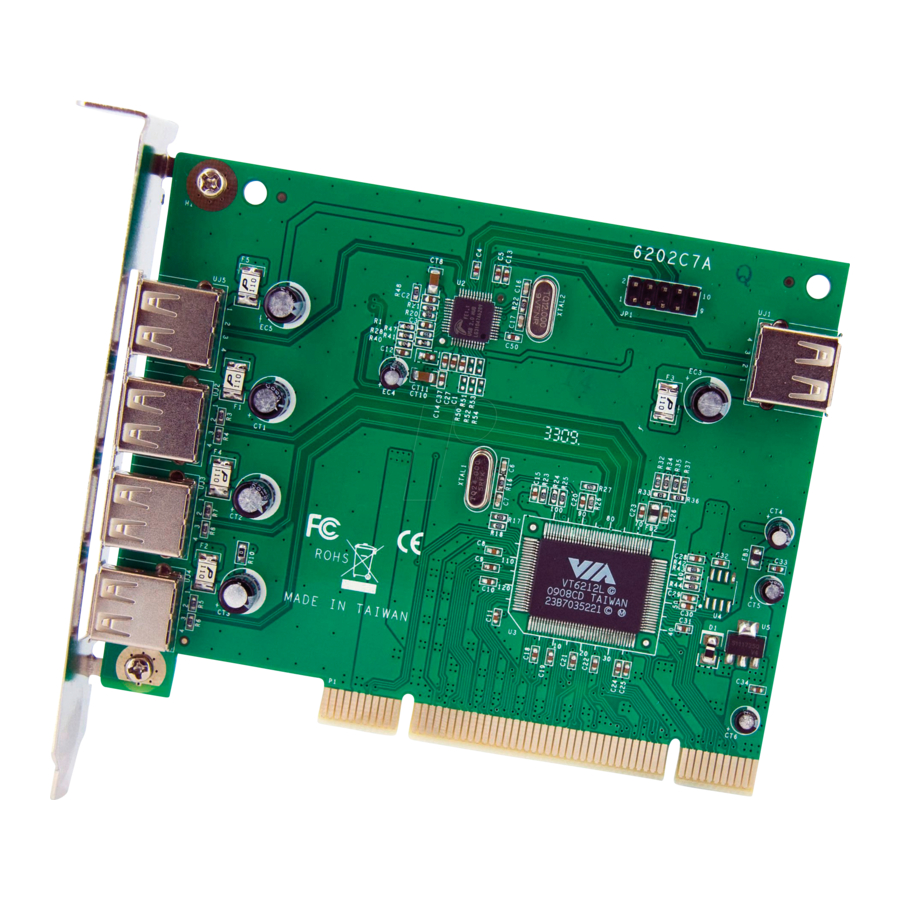

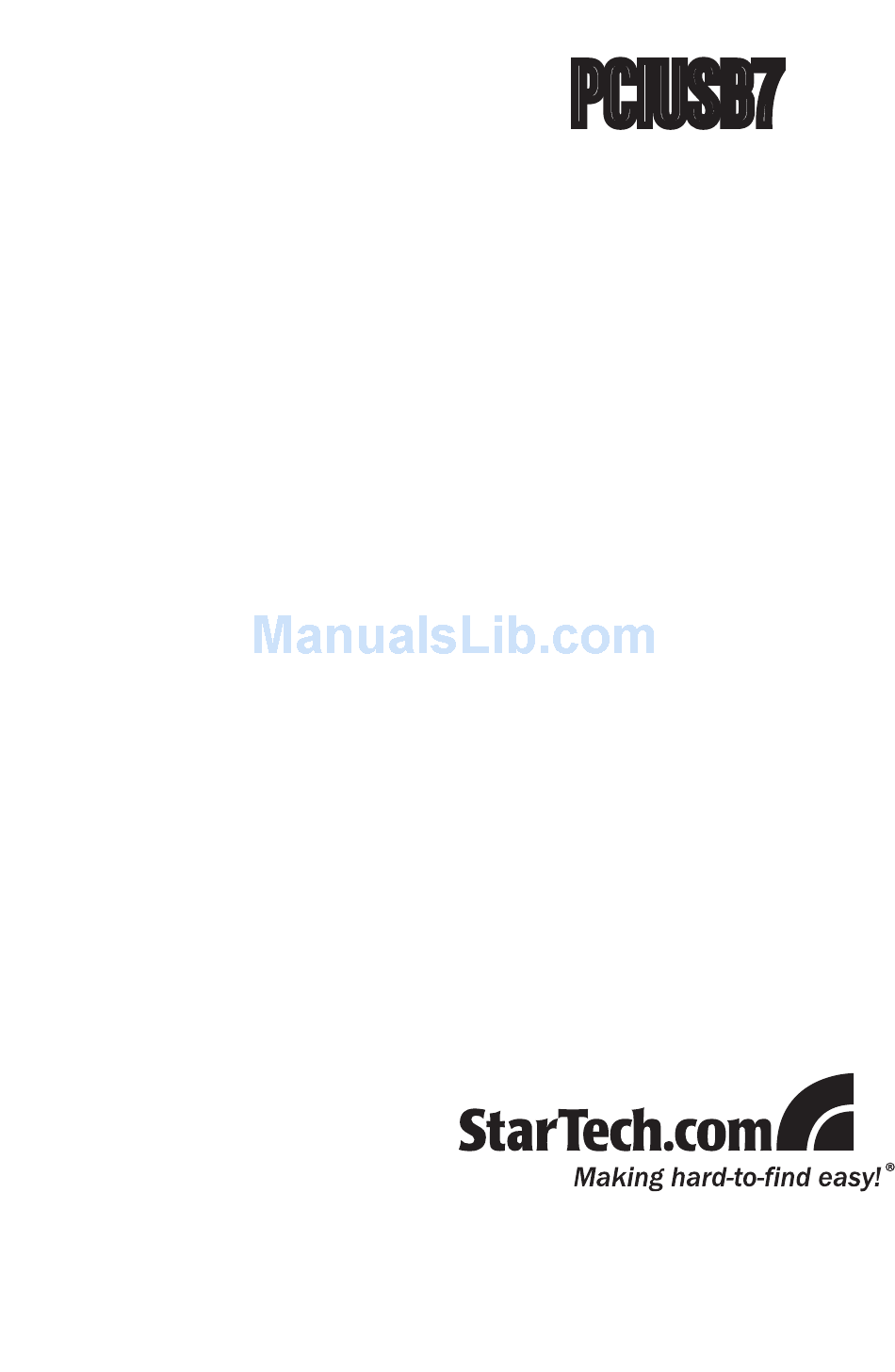

- Page 1 PCIUSB7 Instruction Manual PCI USB Adapter Card 7 Port PCI High-Speed USB 2.0 Adapter Card...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............2 Driver Installation .................2 Verifying Installation ..............3 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction
2.0 ports (1 internal USB A Female, 2 internal USB motherboard header, and 4 external USB A Female) to your PCI-capable PC. Packaging Contents • 1 x PCIUSB7 adapter card • 1 x Driver CD • 1 x Instruction Manual System Requirements •... -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable,... -
Page 6: Verifying Installation
Verifying Installation Windows 2000/XP/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. There should be new “VIA” devices listed under the “Universal Serial Bus Controllers”... -
Page 7: Specifications
Specifications Bus Interface PCI (3.3/5V) EHCI 0.95 USB Specification UHCI 1.1 4 x USB type A (External) Connectors 1 x USB type A (Internal) 1 x 9-pin USB Header (internal) Chipset VIA VT6212L Maximum Data Transfer Rate 480Mb/s Compatible Operating Windows 98SE/ME/2000/XP/ Systems Vista/7, Linux... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
