PCI Superspeed USB 3.0 Cards
PCIUSB3S22
PCIUSB3S4
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/09/2012

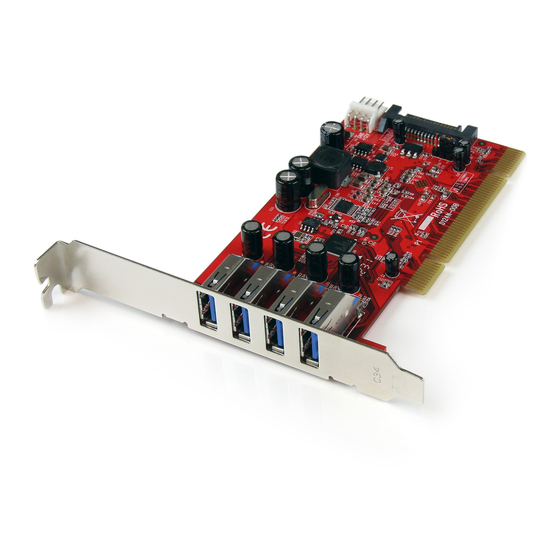

*PCIUSB3S22 Shown
Advertisement
Table of Contents
Related Manuals for StarTech.com PCIUSB3S22
Summary of Contents for StarTech.com PCIUSB3S22
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/09/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 PCIUSB3S22 ..............................2 PCIUSB3S4 ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ..................4 Verifying Installation ..........................5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7... -
Page 4: Introduction
Introduction The PCIUSB3S22/PCIUSB3S4 2/4-Port PCI to SuperSpeed USB 3.0 Card, with SATA power, allows for legacy PCI slots to support the USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps (10x faster than USB 2.0). Using USB 3.0 devices with this card will increase data transfers, with up to 1.3 Gbps of available bandwidth (PCI... -
Page 5: Pciusb3S22
PCIUSB3S22 SATA Power Connector USB 3.0 type A PCIUSB3S4 SP4 Small Floppy Power Connector SATA Power Connector USB 3.0 type A Instruction Manual... -
Page 6: Installation
WARNING! PCI cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Driver Installation
Driver Installation 1. Once the computer has started and the operating system is fully loaded, insert the provided Driver CD into the computer’s CD/DVD drive. 2. Autorun should give you the option to browse the files on the CD or automatically open the CD. -
Page 8: Verifying Installation
Verifying Installation Windows XP/Server 2003/Vista/7/8 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. In the Device Manager, under the Universal Serial Bus Controllers category, you should see the new entries for the USB 3.0 controller card. -
Page 9: Specifications
Specifications PCIUSB3S22 PCIUSB3S4 Number of Ports Host Interface USB 3.0 revision 1.0 Form Factor Low/Full Profile Chipset ID NEC uPD720202 External Connectors 2 x USB 3.0 type A female 3 x UBS 3.0 type A female 1 x SP4 small Floppy Power... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
