Summary of Contents for StarTech.com PCIIDE2

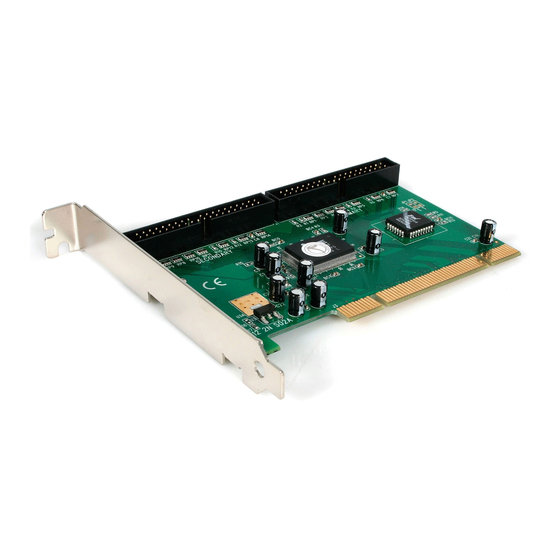

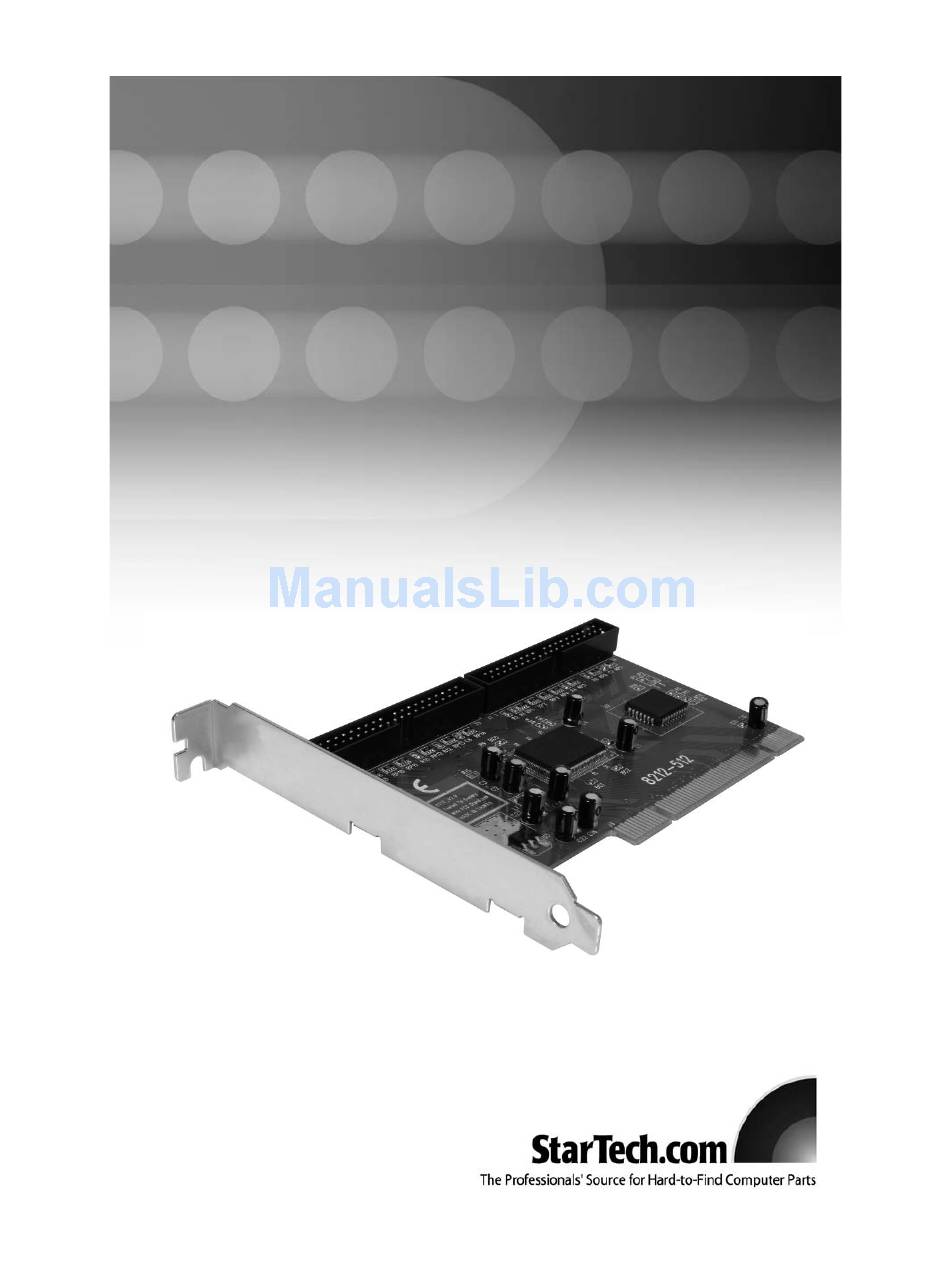

- Page 1 IDE ATA/133 Controller 2 Port PCI ATA-133 IDE Adapter Card PCIIDE2 Instruction Manual Actual product may vary from photo...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Specifications ...........8 Accessory Products from StarTech.com ......9 Technical Support . -
Page 4: Introduction
I I n n t t r r o o d d u u c c t t i i o o n n Thank you for purchasing a StarTech.com ATA/133 IDE controller card. This product is perfect for adding additional hard drives and other IDE/ATAPI compliant devices to a computer that does not have any available IDE connections, replacing a failed onboard IDE controller, or upgrading a computer to take advantage of ATA/133 speeds. -
Page 5: Installing The Card
Instruction Manual I I n n s s t t a a l l l l a a t t i i o o n n This section will guide you through the installation of your card. Please read through the instructions carefully and complete each step in the order listed. -
Page 6: Windows 98/98Se/Me
Instruction Manual Software Installation Windows 98/98SE/ME 1. Power on the host computer, and ensure that Windows is fully booted (desktop is visible) 2. Windows will detect that ITE IT8212 ATA PCI Controller has been connected, and will launch the Add New Hardware Wizard. Select Specify the location of the driver (Advanced) and click Next: 2. -
Page 7: Windows 2000/Xp
Instruction Manual 6. Once the computer has rebooted, you may want to verify that installation has successfully completed. To do so, right-click on My Computer and select Manage. On the left side of the window that opens, click on Device Manager. Click on the [+] sign next to SCSI Controllers, where you should notice ITE IT8212 ATA PCI Controller listed, indicating that installation... - Page 8 Instruction Manual 4. In the dialog box provided, type D:\WIN2K_XP to indicate the proper file location. Click on Next to continue setup. 5. When Windows indicates that the correct driver has been located, click on Next to continue setup. 6. When you are notified that the Found New Hardware Wizard has finished installing the drivers for ITEIT8212 ATA PCI, click Finish to continue, and restart the computer for the...
-
Page 9: Windows Nt
Instruction Manual Windows NT 1. Power on the host computer, and ensure that Windows is fully booted (desktop is visible) 2. Click on the Start button, select Settings, and choose Control Panel. 3. In the Control Panel, double-click on the SCSI Adapters icon. -
Page 10: Troubleshooting
Instruction Manual 7. Once the computer has rebooted, you may want to verify that installation has successfully completed. To do so, revisit the Control Panel, and open the SCSI Adapters window. If ITE IT8212 ATA PCI Controller is displayed in the Devices panel as shown below, the driver has been installed successfully: T T r r o o u u b b l l e e s s h h o o o o t t i i n n g g Q: When the computer is powered on, no video appears on the screen or the floppy drive... -
Page 11: Specifications
Instruction Manual S S p p e e c c i i f f i i c c a a t t i i o o n n s s Bus Type PCI 5V / 3.3V 32 Bit Connectors 2 x IDC 40 Male Maximum Data Transfer rate 133 Mbps Chipset IT8212F... -
Page 12: Accessory Products From Startech.com
A A c c c c e e s s s s o o r r y y P P r r o o d d u u c c t t s s f f r r o o m m S S t t a a r r T T e e c c h h . . c c o o m m Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 14 About StarTech.com StarTech.com is “The Professionals’ Source for Hard-to-Find Computer Parts”. Since 1985, we have been providing IT professionals with the quality products they need to complete their solutions. We offer an unmatched selection of computer parts, cables, server management solutions and A/V products and serve a worldwide market through our locations in the United States, Canada, the United Kingdom and Taiwan.
