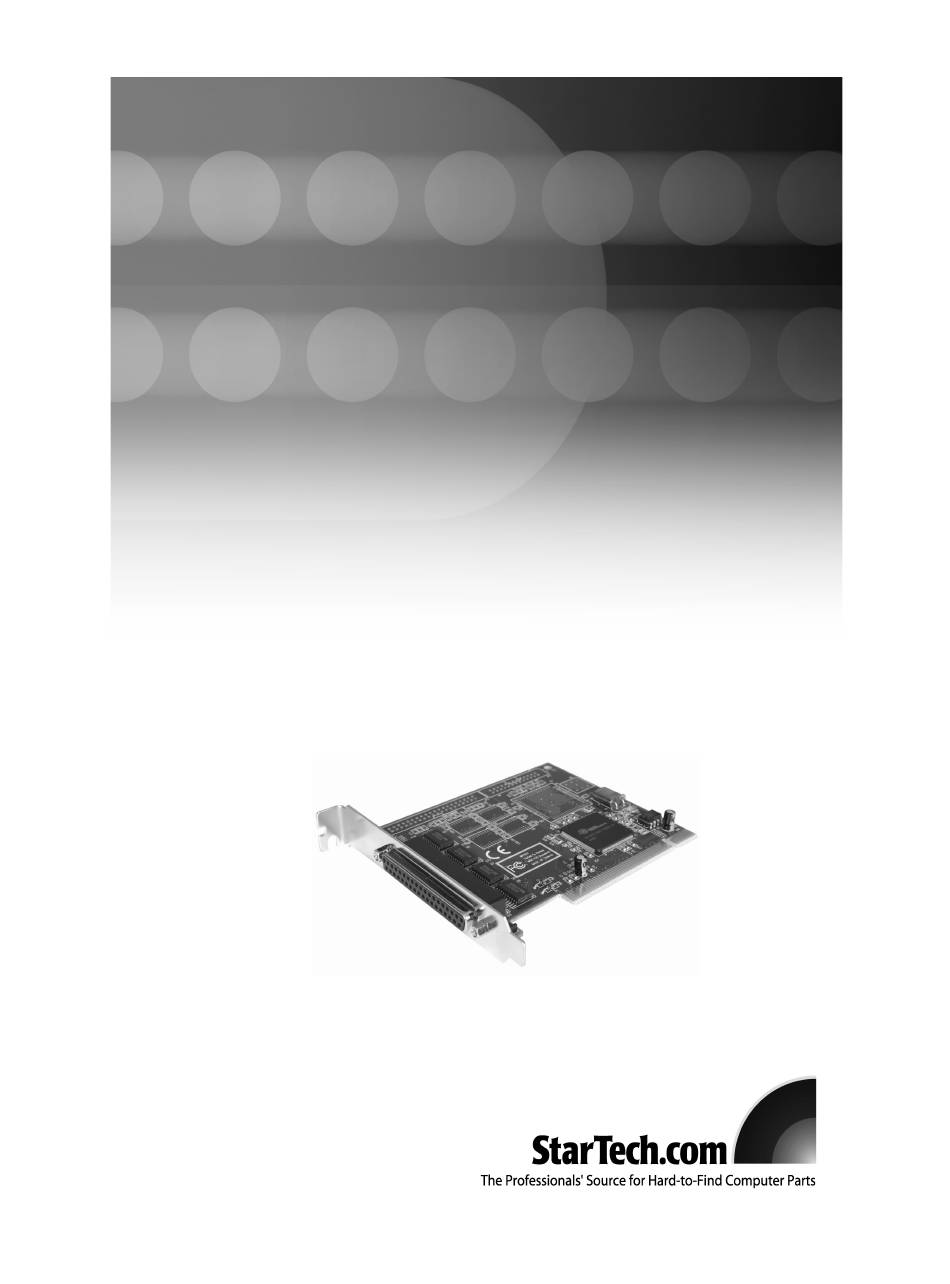

- Page 1 PCI Serial Card 4 Port RS-232 High-Speed Serial PCI Card PCI4S550 Instruction Manual Actual product may vary from photo...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Specifications ...........4 Accessory Products from StarTech.com ......5 Technical Support . -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com 16950 PCI Serial card. The latest in Plug and Play expansion cards, this high-speed serial card provides your computer with four 16C950 UART (Universal Asynchronous Receiver-Transmitter) RS-232 serial ports (varies by model). You can connect any 9-pin external serial device such as a modem, mouse, or ISDN adapter to your system and enjoy speeds of up to 15 Mbits/sec (asynchronous mode) or 60 Mbits/sec (isochronous) mode. -
Page 5: Contents
If you lose the installation CD or want to update the existing drivers in future, please visit www.startech.com to download the most current version of the drivers. For advanced configuration instructions, consult the PDF files located in the doc folder on the installation CD. - Page 6 Instruction Manual 2. Insert the installation CD that came with the card into your computer’s CD-ROM or other compatible optical drive. Choose Search for a suitable driver... (Windows 2000) or Install the software automatically (Windows XP). Click Next. 3. You may receive a warning that the driver is not digitally signed. Choose OK (Windows 2000) or Continue Anyway (Windows XP) when prompted to complete the installation.
-
Page 7: Specifications
Instruction Manual Specifications Form Factor/Interface Full-size PCI, 32-bit PCI standard ver. 2.2 compliant Maximum Data Transfer Rate 15 Mbits/sec (asynchronous mode) 60 Mbits/sec (isochronous mode) (Some speeds may require a different clock crystal) Connectors DB-9 RS-232 serial (male) UART Chipset Oxford Semiconductor OX16PCI954 Regulatory Certifications... -
Page 8: Accessory Products From Startech.com
Instruction Manual Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. 3 ft. AT Modem Cable DB9F-DB25M MC3MF 6 ft. AT Modem Cable (male to female) MC6MF 6 ft. -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 10 About StarTech.com StarTech.com is “The Professionals’ Source for Hard-to-Find Computer Parts”. Since 1985, we have been providing IT professionals with the quality products they need to complete their solutions. We offer an unmatched selection of computer parts, cables, server management solutions and A/V products and serve a worldwide market through our locations in the United States, Canada, the United Kingdom and Taiwan.
