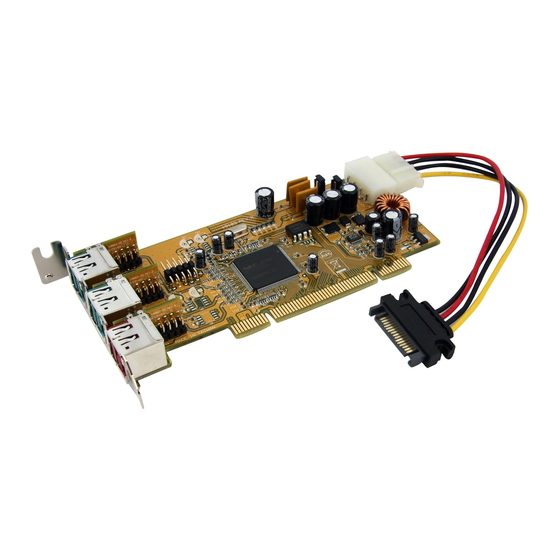

- Page 1 PCI1224PUSB Instruction Manual PCI PoweredUSB Adapter Card 2-port 12V and 1-port 24V PoweredUSB Dual Profile PCI Adapter Card - USB PlusPower...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............2 Driver Installation .................2 Configuration ..............3 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction
Introduction Packaging Contents • 1 x PCI1224PUSB adapter card • 1 x SATA power to LP4 molex adapter cable • 1 x Instruction Manual System Requirements • Available PCI expansion slot • Microsoft Windows ® 98SE/ME/2000/XP/Server 2003/Vista, ® Mac OS... -
Page 5: Hardware Installation
USB ports, connect the IDC header cable from those ports to the connector on the card. An additional 2-port daughter board can also be added to another expansion slot (StarTech.com ID: PUSBADAP). NOTE: Make sure to observe the pinout and connect accordingly, as incorrectly connecting the cable can result in damage to the adapter card, motherboard and/or USB devices. -
Page 6: Configuration
Once Windows locates the drivers, press “Next” to continue the setup. Once complete, press “Finish” and then reboot the computer. Windows 2000/XP/Server 2003/Vista, Mac OS X No driver installation is required for these operating systems, as this USB adapter card is natively supported, so the drivers are already installed. -
Page 7: Specifications
Specifications Bus Interface PCI rev 2.2 (3.3/5V) USB Specification USB 2.0 (EHCI/OHCI) 2 x 12V keyed PoweredUSB External Connectors 1 x 24V keyed PoweredUSB 1 x LP4 molex power Internal Connectors 1 x 9-pin IDC header Chipset NEC UPD720101GJ Maximum Data Transfer Rate 480Mbps Compatible Operating Windows 98SE/ME/2000/XP/... -
Page 8: Technical Support
