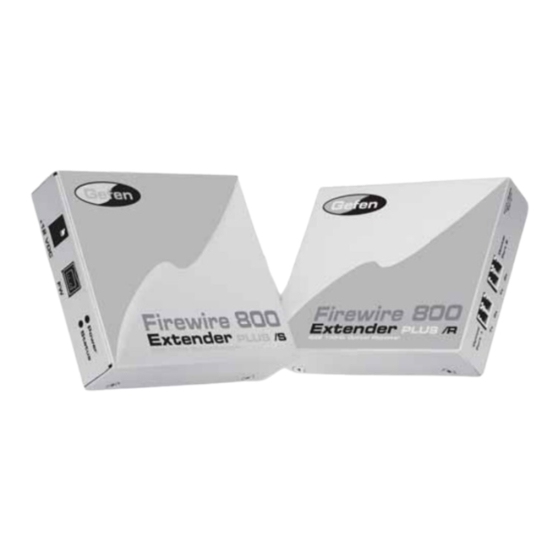

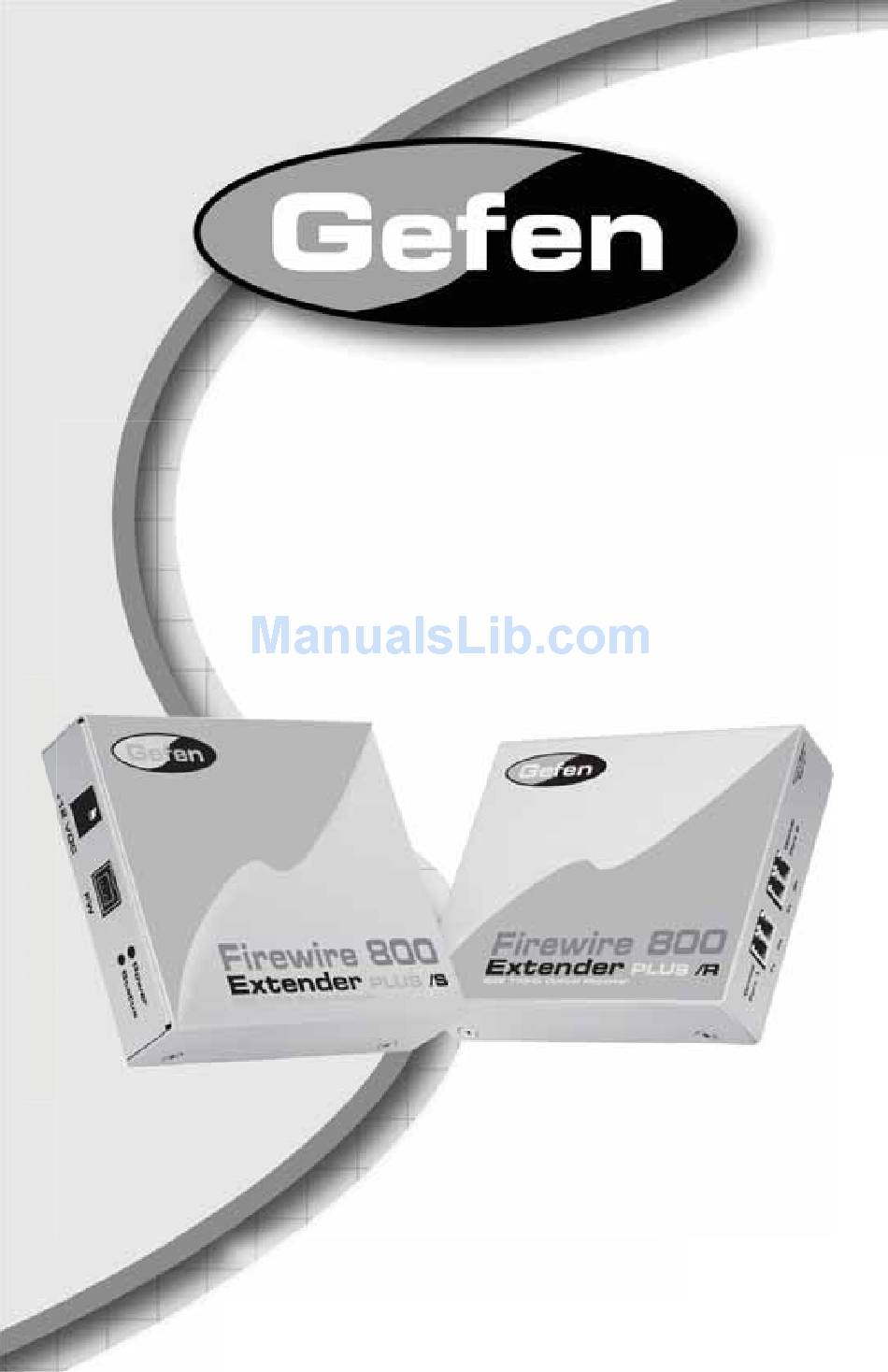

- Page 1 Firewire 800 Extender Plus EXT-FW-1394BP User Manual www.gefen.com...
- Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Firewire 800 Extender Plus is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The Firewire 800 Extender Plus Wiring Diagram 10 Specifi cations 11 Warranty... -
Page 5: Introduction
Congratulations on your purchase of the Firewire 800 Extender Plus. Your com- plete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE FIREWIRE 800 EXTENDER PLUS • The fi ber optics cable must be treated carefully when connectors are exposed. They are susceptible to dust which can contribute to loss of pixels. •... -
Page 7: Features
FEATURES Features • Extends Firewire devices up to 1640 (500 meters) feet • Transfer Rates of 100/200/400/800 Mbps • Compliant with IEEE 1394a and 1394b • Allows remote devices to operate in real-time, connected to the source • Works with Apple and PC computers •... -
Page 8: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Back Panel... -
Page 9: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Status LED This LED will become active once a stable link has been established between the sending and receiving units. Power LED This LED will become active once the included power adapter has been connected. Fiber Optic TX and RX Inputs Connect a LC terminated fi... -
Page 10: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Back Panel... -
Page 11: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Fiber Optic TX and RX Ports 1 Connect a LC terminated fi ber optic cable for both the transmit (TX) and receive (RX) signals between the Firewire 800 sending and receiving units. Optionally, this port can be used for extension to another Receiving unit to extend the signal. -
Page 12: Connecting And Operating The Firewire 800 Extender Plus
CONNECTING AND OPERATING THE FIREWIRE 800 EXTENDER PLUS How to Connect the Firewire 800 Extender Plus Connect the supplied Firewire cable from the computer’s Firewire port into one of the fi rewire ports on the Firewire 800 Extender Plus Sending unit. The other port can be used for a local Firewire device. -
Page 13: Wiring Diagram
WIRING DIAGRAM... -
Page 14: Specifications
SPECIFICATIONS Input Connector Type ................... 1394b Output Connector Type .................1394b Power Consumption Each Side ............ 36 Watts (max.) Power Supply ..................... 12VDC Dimensions ................4”W x 1”H x 3.625”D Shipping Weight .................... 4 Lbs... - Page 20 Rev X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
