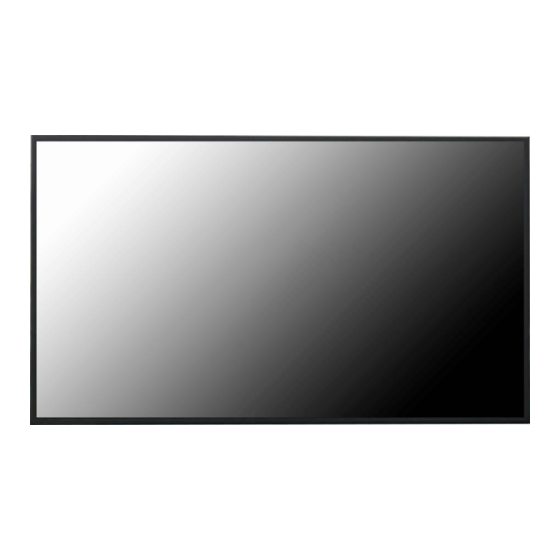

- Page 1 40, 46 & 55-INCH WUXGA NARROW BEZEL TFT-LCD MONITOR INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
- Page 3 SAFETY INSTRUCTION ………………………………………………………….…… 2 ~ 3 CAUTIONS ……………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... CONNECTING WITH EXTERNAL EQUIPMENT …………………………………… REMOTE FUNCTIONS ………………………………………………………………… CONTROLS AND FUNCTIONS ……………………………………………………….. 8 ~ 16 AC POWER CONNECTION GUIDE ………………………………………………….. EXTENTENSIONAL IR RECEIVER FOR REMOTE CONTROLLER ..……………. 18 ~ 19 MOUNTING GUIDE ……………………………………………………………………..
-
Page 4: Important Safety Instruction
Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Instruction Manual
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. - Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”... - Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...
-
Page 7: Doc Compliance Notice
NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 8: Back Panel Control
A. BACK PANEL CONTROL 1. Extensional Port for Remote Controller Receiver (See page 16 & 17). 2. AV 1 IN. 3. AV 1 OUT. 4. AV 2 IN. 5. AV 2 OUT. 6. S-VIDEO IN. 7. S-VIDEO OUT. 8. AV 1 & SVIDEO AUDIO L/R IN. 9. -
Page 9: Remote Controller(Optional)
B. REMOTE CONTROLLER(Optional) 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Selects an input source. 3. AUTO Auto geometry adjustment in the RGB PC source. 4. MUTE Mutes the sound. -
Page 10: Power Led
C. RIGHT SIDE BUTTON CONTROL 1 & 2. VOL(+) & VOL(-) Adjust the volume and menu settings. 3 & 4. ▲ & ▼ These buttons allow user to enter the sub-menu of the activated function. The up(▲) button is HOLD function and stop the Trigger & Auto switching functions. -
Page 11: Osd Menu Description
OSD MENU DESCRIPTION All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen: 1. Press the Menu button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted. 3. - Page 12 B. Picture/Sound Option Function Value Picture Mode Sets picture mode. See table below Color Tone Sets color tone. See table below Mute Mutes speaker sound. Off or On Volume Adjust the level of audio volume. 0 ~ 100 Size Display picture size. See table below Reduces noise of the picture.
- Page 13 Color Tone Cool Gives the white color a bluish tint. Normal Gives the white color a neutral tint. Warm Gives the white color a reddish tint. User To manually adjust the color tones(Red, Green, and Blue). Size Sets the image size to 4:3 Panorama Sets the image to panorama Zoom1...
- Page 14 C. PIP Option Function Value Activates the PIP feature. Off or On Input Source Selects the input source for the PIP area. See table below Enables 3 screen size.4:3 side by corner, 4:3 side by 4: 3, PIP Mode PIP, PBP1 or PBP2 and full screen side by side.
- Page 15 D. Setup Option Function Value Resets the monitor settings to their Reset factory default. English, French, Deutsch, Language Sets the language of the OSD menu. Italian, Spanish, Portuguese or Nederland Changes background of monitor menus. OSD Tone Transparency or On (e.g.
- Page 16 ※ NOTICE: When watching moving images on a computer or a DVR through this monitor using a PC- RGB, DVI or HDMI input, you can see blurred images on the edge of icons and pop-up windows but, this is not a defect. The blur may appear on the fixed images such as another icon and pop-up window because the 120Hz feature is focused on fast moving images to enhance the quality of moving image.
- Page 17 Model ID You can control this monitor with “Monitor control” software and “Model ID” functions. Available controls are Turn on, Turn off or change the input source of this monitor. 1. Connect the PC and Monitor(s) with RS-232 Cable. The PC and Monitor(s) have to be turned on. 2.
- Page 18 2) Monitor Control: Click the “Connect”. - Model ID: Match with the monitor which you want to control. - Monitor Power: Can be “turned on” or “turned off” the monitor. - Source: Can be changed the source of the Monitor e.g.) In this case, you can control the “Model ID No.
- Page 19 ※ CAUTION: Do not connect five or more monitors into one wall socket. < Good > < Bad > INSTRUCTION MANUAL ………………………………………………………………………. 17...
- Page 20 1. Extensional Remote Controller Receiver is on the top of the monitor. 18 ………………………………………………………………………. INSTRUCTION MANUAL...
- Page 21 2. Extensional Remote Controller Receiver is on the bottom of the monitor. INSTRUCTION MANUAL ………………………………………………………………………. 19...
- Page 22 Wall mounting (Optional) The LCD monitors are suitable for VESA standard wall mount (not included in the delivery). M8x12 screws M8x12 screws < 40 / 55 inch > < 46 inch > 1. 40-inch: VESA 400mm x 130mm x 130mm. 2.
- Page 23 ▶ PIN ASSIGNMENTS Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND D-SUB ▶ ACCESSORIES 1. Power cord; In & Out. 2. User’s manual. 3.
- Page 24 This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.
- Page 25 40’’ WUXGA 46’’ WUXGA 55’’ WUXGA 40˝ Diagonal AM-TFT 46˝ Diagonal AM-TFT 55˝ Diagonal AM-TFT TYPE (Active-Matrix) (Active-Matrix) (Active-Matrix) PIXELl PITCH(mm) 0.46125(H) x 0.46125(V) 0.53025(H) x 0.53025(V) 0.63(H) x 0.63(V) LCD- ² BRIGHTNESS 700cd/m (Typical) Type CONTRAST RATIO 3000:1 (Typical) 4000:1(Typical) VIEWING ANGLE 178°/178°(H/V)
-
Page 26: Weee Symbols
WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 28 P/N : L39ME0281 Rev.1...
