Page 1

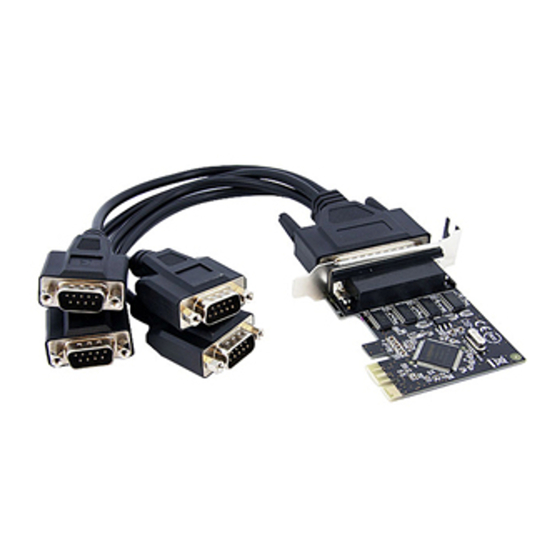

PEX4S552B Instruction Manual PCI Express Serial Adapter 4-Port Native PCI Express Dual Profile RS-232 Serial Adapter Card with Breakout Cable...
Page 2
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
Page 3
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............1 Driver Installation .................2 Verifying Installation ..............2 Specifications ..............3 Technical Support ............4 Warranty Information ............4...
Page 4
Introduction Packaging Contents • 1 x PEX4S552B adapter card • 1 x DB9 Breakout Cable • 1 x Full Profile bracket • 1 x Driver CD • 1 x Instruction Manual System Requirements • Available PCI Express slot ® •...
Page 5
Driver Installation Windows 2000/XP/Server 2003 When the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD-ROM drive. If you are prompted to connect to Windows Update, please select the “No, not this time” option and click Next. Select the option “Install Drivers Automatically (Recommended)”...
Page 6
Specifications Bus Interface PCI Express 1.0a (x1) 4 x DB9 male External Connectors (via included breakout cable) Chipset Moschip MCS9901 UART 16550 Serial Protocol RS-232 Maximum Data Transfer Rate 250 Kb/s (per port) Windows 2000/XP/Server 2003/ Compatible Operating Vista, Mac OS 10.4/10.5, Linux Systems Kernel 2.6.11 and above...
Page 7
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or...
Page 8
StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
