Bowflex SelectTech 5.1 Owner's/Assembly Manual page 10

STEP : Attachng Back Assembly to Man Frame
Parts:
• (1) Bench Frame Assembly from Step 2
• (1) Back Pad Assembly - Item 9
• (1) Head Pad Assembly - Item 10
Hardware:
• (6) 5/16 inch Allen Bolt, 2 1/2 inch long - Item 11
• (6) Flat Washer 5/16 inch - Item 14
Tools:
• 3/16 Allen Wrench

10
14
11
Assembly Steps:

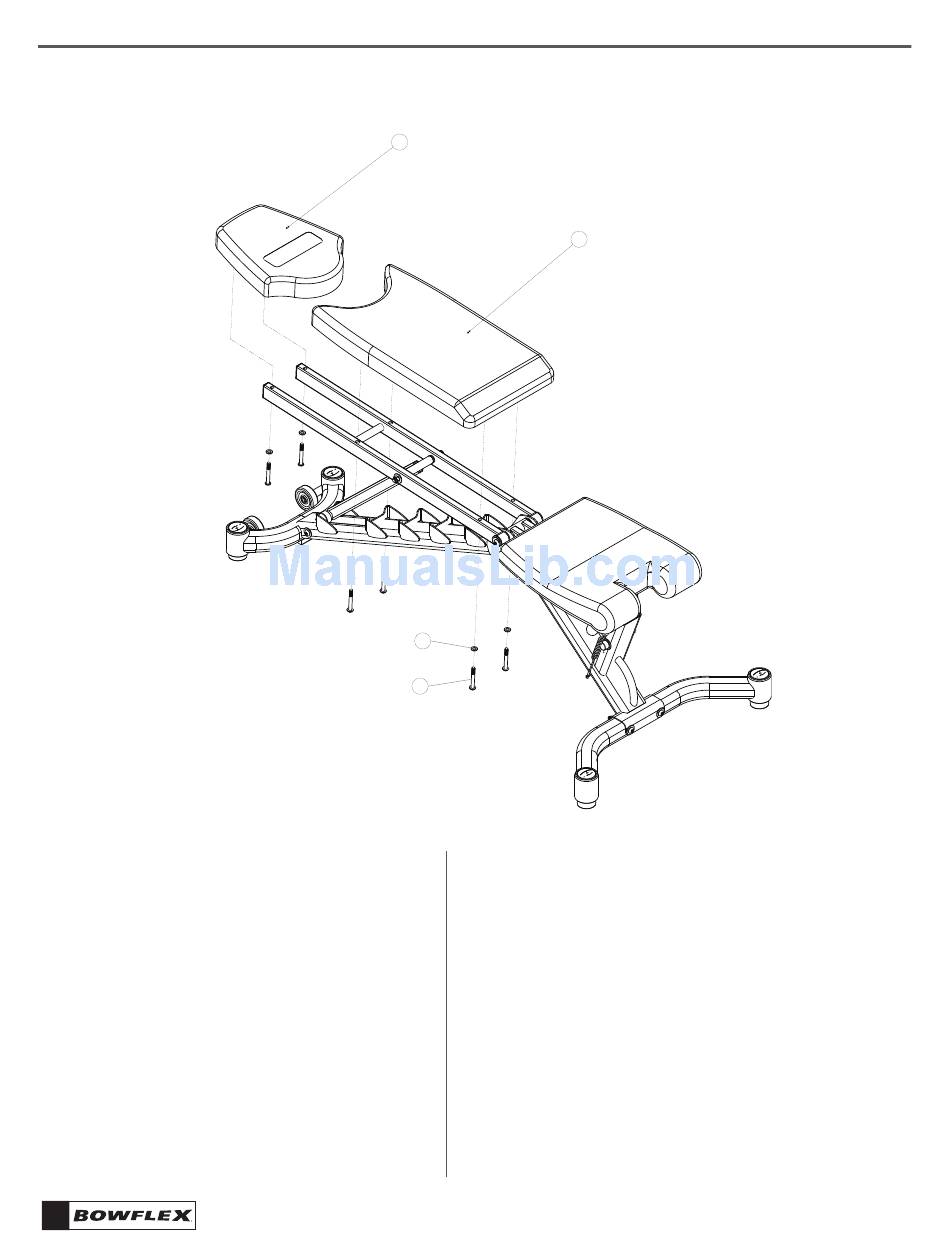

3-1 Align the Back Pad Assembly (9) to the Bench
Frame Assembly between the open holes as
shown.
3-2 Secure with the hardware as shown.
3-3 Align the Head Pad Assembly (10) to the Bench
Frame Assembly between the open holes as
shown.
3-4 Secure with the hardware as shown.
9
