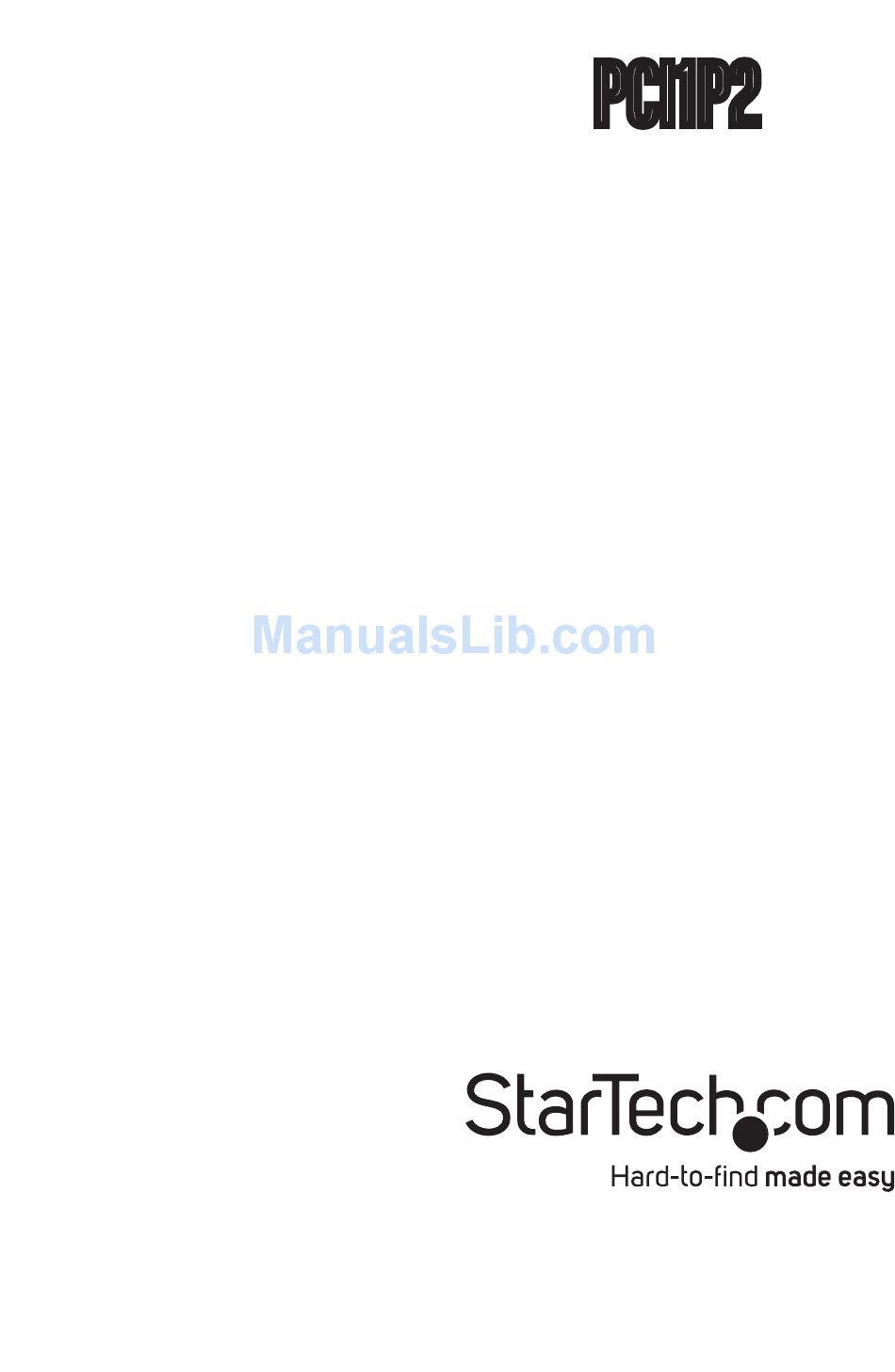

Page 1: Instruction Manual
PCI1P2 Instruction Manual PCI Parallel Adapter Card 1-Port PCI to Parallel Adapter Card Manual Revision:12/03/2010 For the most up-to-date information, please visit www.startech.com... - Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............2 Driver Installation ................. 2 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction

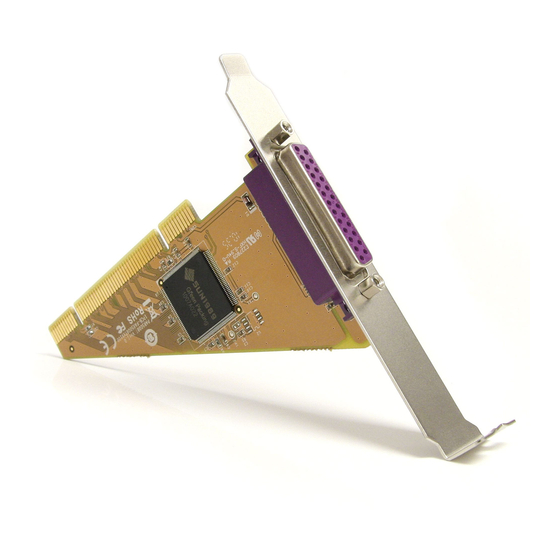

Introduction The PCI1P2 1-Port Parallel PCI Card adds one ECP/EPP/SPP/BPP IEEE 1284 port to your PC, with support for data transfer speeds of up to 1.8Mbps. This versatile card offers compatibility with PCI or PCI-X expansion slots (3.3/5V, 32/64-bit), as well as a simple plug and play installation with support and drivers for a broad range of operating systems ®... -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable,... - Page 6 then click the Next button. 3. Windows should now start searching for the drivers. Once this has completed, click the Finish button. Windows Vista/7/Server 2008 R2 1. When the Found New Hardware window appears on the screen, click on the “Locate and install drivers software (recommended)” option.
-
Page 7: Specifications
Specifications PCI revision 3.0 Host Interface (33Hz, 3.3V/5V) Form Factor Full Profile Chipset ID Sunix SUN1989 External Connectors 1 x DB25 female Supported Standards IEEE 1284-1994 Supported Protocols ECP, EPP, SPP, BPP Maximum Data Transfer Rate 1.8 Mbps FIFO Buffer 16 Byte Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
