Introduction; Applications; Key Features; Unpacking - K-array AnaKonda KAN200 User Manual

KAN200

1. INTRODUCTION

Like every K-array product, the Anakonda KAN200 is a revolutionary speaker module born to meet the needs of places where few
had dared to go up to now. It is designed to be a problem solver in all those situations where a traditional speaker box can't be
used but where good intelligibility, ultra-reliability and a sleek design are required.
The KAN200 is the perfect fit for any distributed sound application. Its dedicated presets work on a wide frequency range and
can be used as a PA system in stand - alone and in combination with K-array subwoofers. Its lightness and flexibility help it to be
easily integrated in existing structures.
One KAN200 module is 2 mt long and can be extended with additional KAN200s up to a maximum of 16 elements on one line,
which allows you to create 32mt of continuous sound line. Each module is equipped with two speakon NL4 connectors, the male
and female are located respectively at the top and bottom, and are completely integrated in the "body" of the speaker. Once they
are connected, they are hidden in the shape of the line.
Each KAN200 is provided with 2 fabric socks, one black and one white, which can be used to cover and protect the speaker from
foreign objects such as dust, and also give the possibility of changing colors in a flash. Wall brackets are included in the package
to make the installation as easy and as fast as possible.
All the components of the Anakonda KAN200 are designed by the K-array R&D department and made in Italy under the K-array
quality control system.

2. APPLICATIONS

• Front fill
• Outdoor installations
• Theme parks
• Indoor and outdoor Scenography design

4. UNPACKING

Each K-array loudspeaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival,
carefully inspect the shipping carton, then examine and test your new loudspeaker. If you find any damage, immediately notify the
shipping company. Only the consignee may institute a claim procedure regarding the system's electronic equipment.

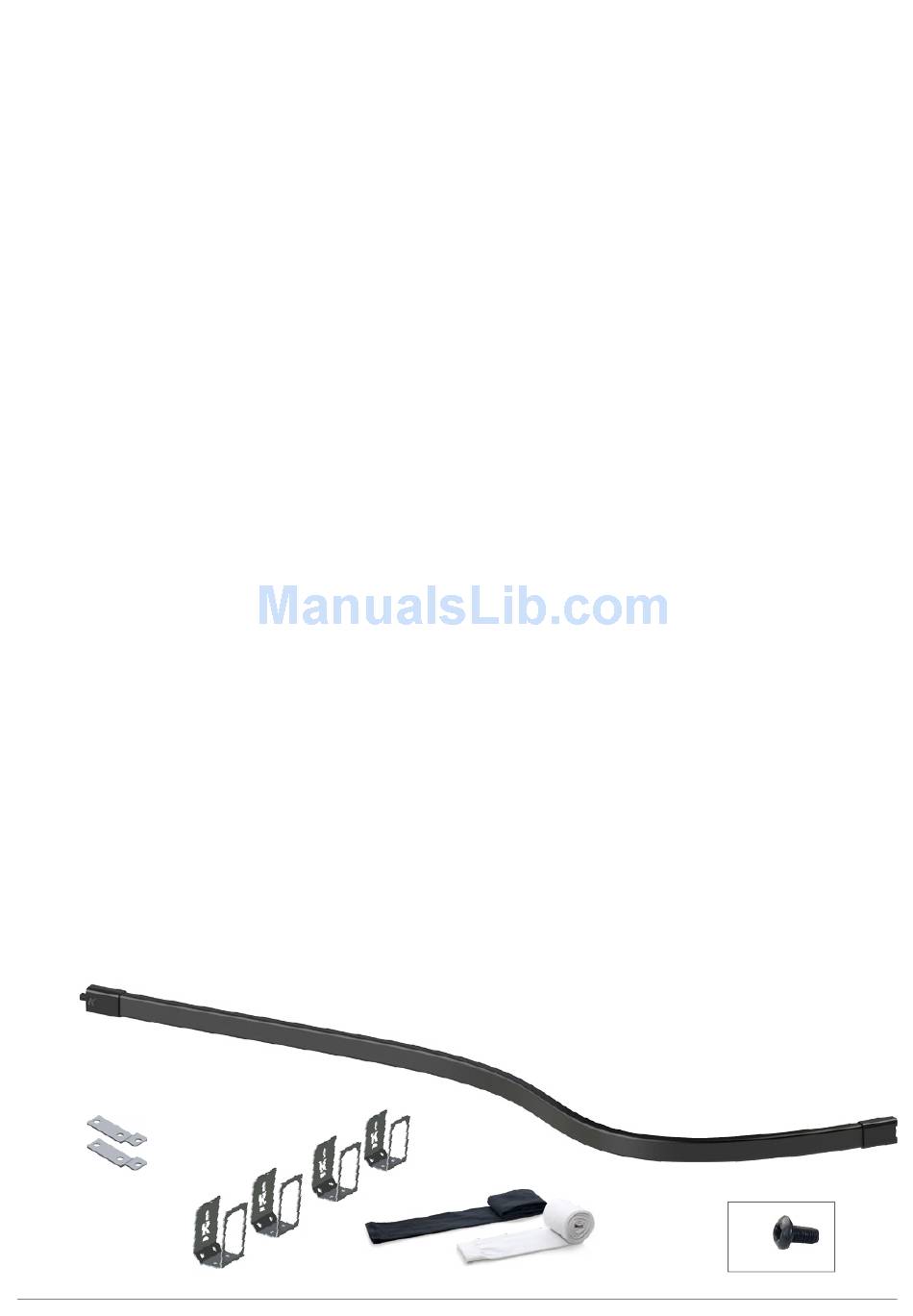

5. PACKAGE CONTENT

6

3. KEY FEATURES

• Flexible 2mt chassis
• Integrated NL4 connectors
• High impedance for long lines
• IP55 for outdoor installations
• Fabric socks available in black and white
4 x
REV. A
