2.5in Hard Drive Setup

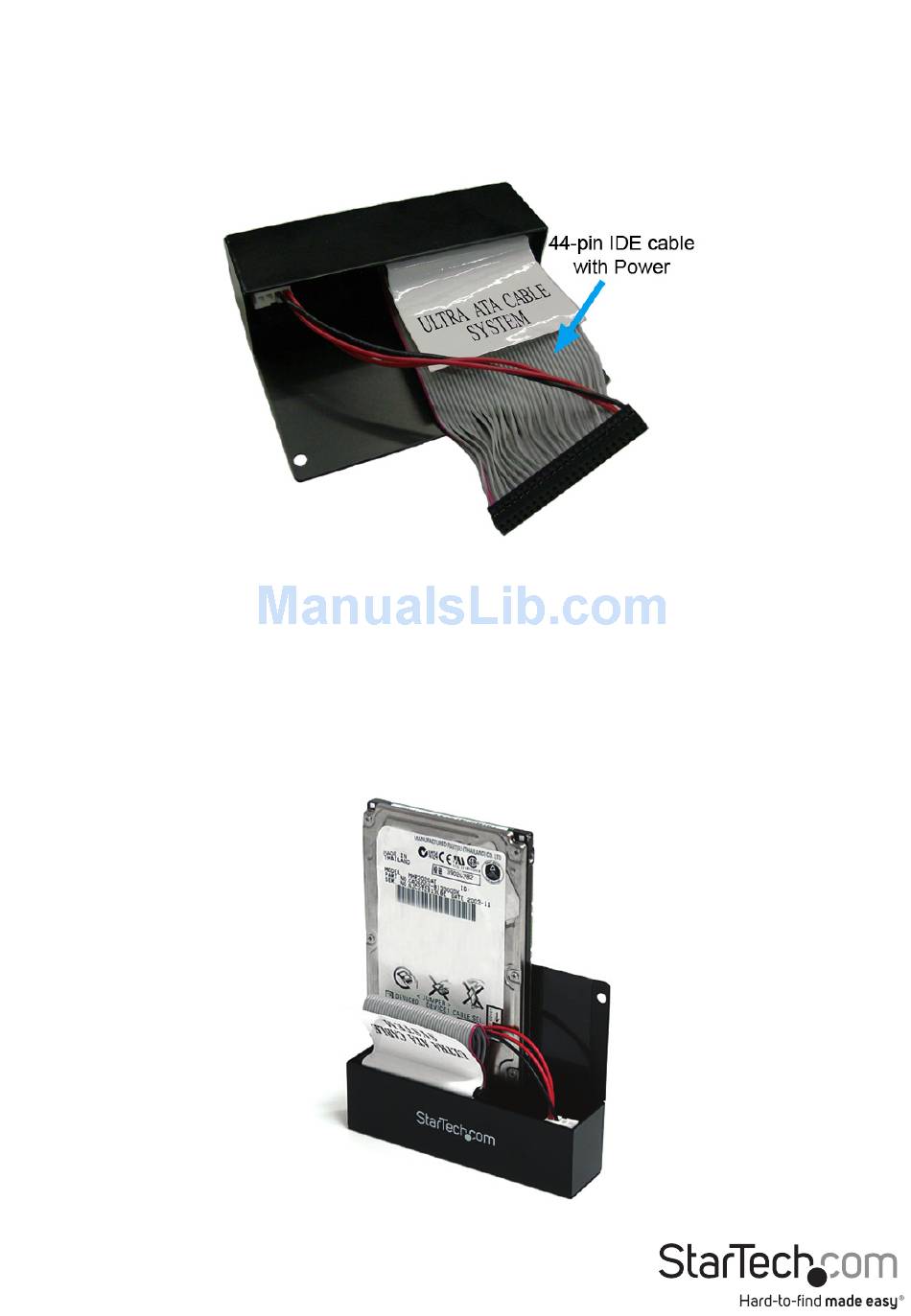

1. If connecting a 2.5in (44-pin) IDE hard drive, connect the 40-pin to 44-pin IDE ribbon
cable to the 40-pin connector on the inside of the SAT2IDEADP.
2. Connect the small 4-pin SP4 floppy power cable from the ribbon cable into the SP4
connector on the inside of the SAT2IDEADP.
3. Connect the IDE hard drive to the 44-pin connector on the ribbon cable.
4. Place the IDE drive onto the back plate of the SAT2IDEADP adapter and fold/tuck the
cables into the opening of the adapter. Slide the IDE drive towards the connectors
until the mounting holes on the bottom of the drive line up with the mounting
points on the back plate of the adapter.
5. Use the provided screws to fasten the drive to the back plate of the adapter. Small
screws provided for 2.5" drives and larger screws for 3.5" drives.
