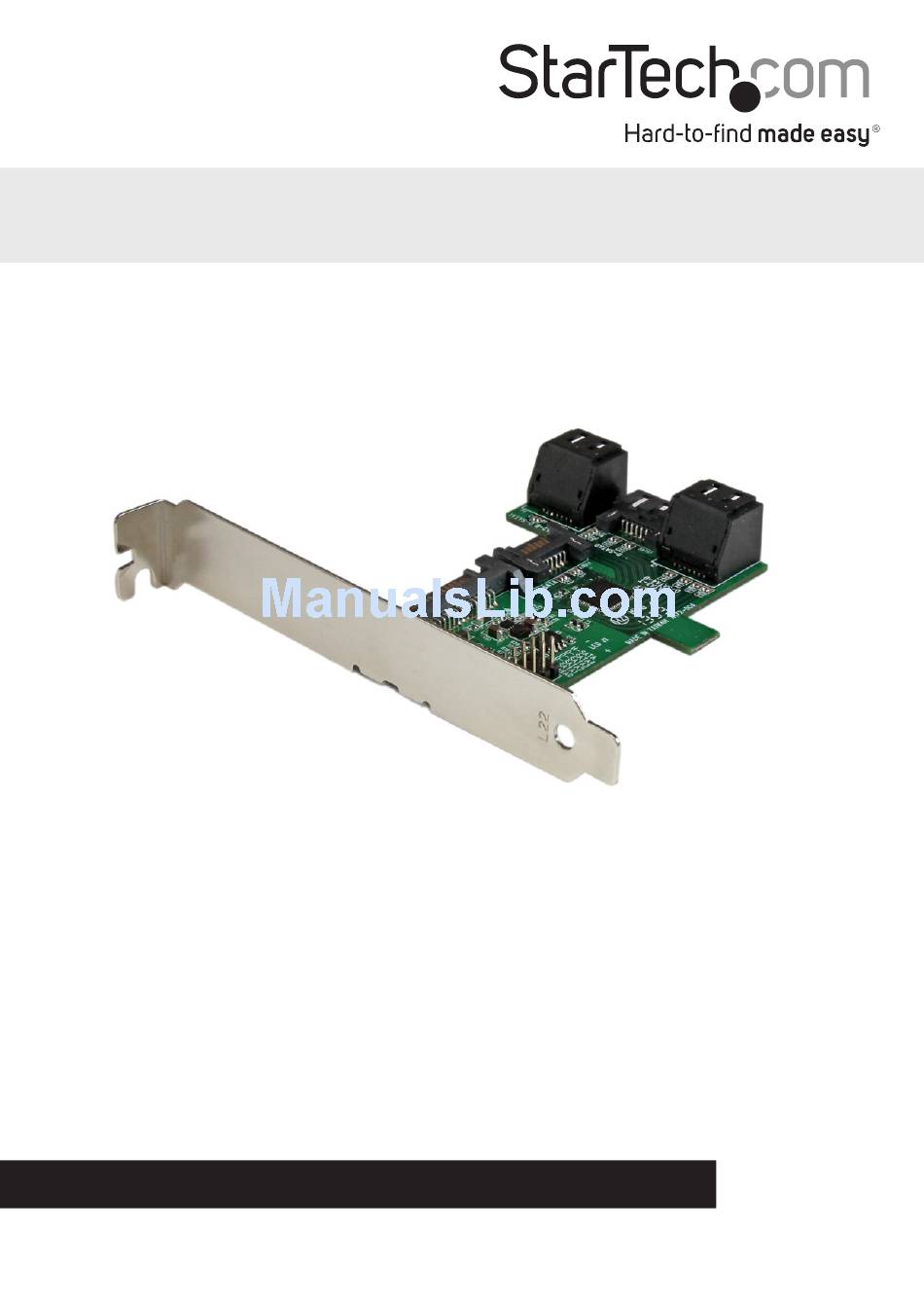

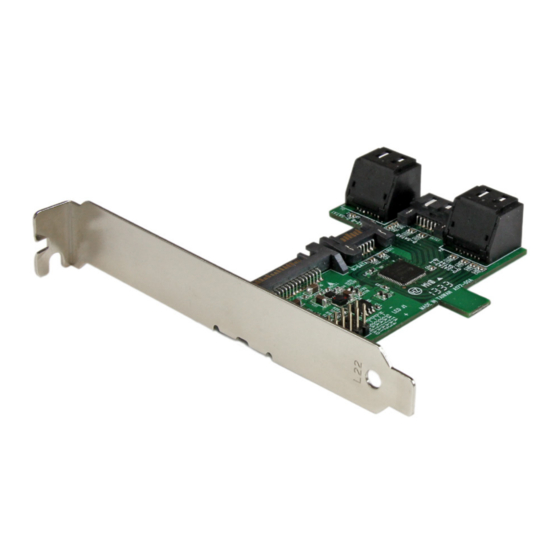

5-Port SATA III Port Multiplier Adapter Card
ST521PMINT
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/16/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com ST521PMINT
Summary of Contents for StarTech.com ST521PMINT
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/16/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 System Requirements ..........................1 Package Contents ............................. 1 Product Diagram ..................2 Front View ..............................2 Rear View ..............................2 Hardware Installation ................3 Bracket Installation ........................... 3 System Installation ........................... 4 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
• 1x computer system with available SATA port (Port Multiplier support required) • 5x SATA HDD / SSD Package Contents • 1X – 5-Port SATA III Port Multiplier Adapter Card (ST521PMINT) • 1X – SATA Cable • 1X – SATA Power Y Splitter Cable Adapter – M/F •... -
Page 5: Product Diagram
Product Diagram Front View 1. Installation Bracket (Full Profile Bracket installed). Rear View 1. LED headers. 2. Power connection port. 3. Host computer SATA connection port. 4. SATA drive connection ports. Instruction Manual... -
Page 6: Hardware Installation
ST521PMINT board using a small Phillips head screw driver (not included). 2. Replace the undesired bracket with your desired bracket lining up the mounting holes on the bracket with the bracket holes on the on the bottom of the ST521PMINT. Instruction Manual... -
Page 7: System Installation
3. Drive the screws through the bracket holes on the ST521PMINT into the mounting holes on your desired bracket using the small Philips head screw driver. 4. Your desired bracket has now been installed. System Installation Note: The SATA controller that the ST521PMINT is connected to must support Port Multiplier. - Page 8 4. Connect a SATA Power cable from your power supply to the power connection port on the ST521PMINT. Instruction Manual...
- Page 9 7. (Optional) If your computer case supports HDD activity LEDs you can connect the LED cables from your computer case to the LED headers on the ST521PMINT enabling your computer case to indicate to you when your hard drives are being accessed. Use diagram below to determine which LED indicator represents each SATA connector.
-
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
