StarTech.com SATA35252X Quick Start Manual

3.5” bay to dual 2.5” sata hdd adapter

SATA35252X

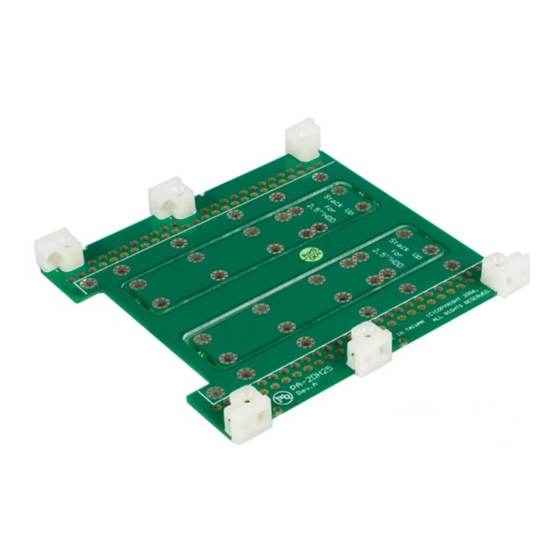

3.5" Bay to Dual 2.5" SATA HDD Adapter

Features

•

Holds one or two 2.5" SATA hard drives

•

Occupies a single 3.5" drive slot

•

Includes 4-pin HDD to SATA power cable

Mounting

Brackets

(x6)

WARNING! Computer equipment can be severely damaged by static electricity. Be sure that you are properly

grounded before opening your computer case or touching your hard drive. StarTech.com recommends that

you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable,

discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the

computer case) for several seconds. Be sure to handle your hard drive carefully and consult your hard drive

and laptop manufacturer for details on how to remove the drive.

Place the 2.5" hard drive on a flat, stable surface, label side down.

Place SATA35252X on top of the drive, such that the plastic fastening tabs are facing down, and the hard

drive mounting screw holes are aligned with the appropriate holes provided by SATA35252X.

Please note the drive outline that is printed on the board - by installing the drive within this spacing, the

drive interface is allowed to overhang the indent in the board, facilitating connectivity.

Fasten SATA35252X to the drive, using the screws provided. Once the drive has been secured to

Board Indent

Stacking

Rails

Table of Contents

Do you have a question about the SATA35252X and is the answer not in the manual?

Page 1 Place the 2.5” hard drive on a flat, stable surface, label side down. Place SATA35252X on top of the drive, such that the plastic fastening tabs are facing down, and the hard drive mounting screw holes are aligned with the appropriate holes provided by SATA35252X.
Page 2 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
