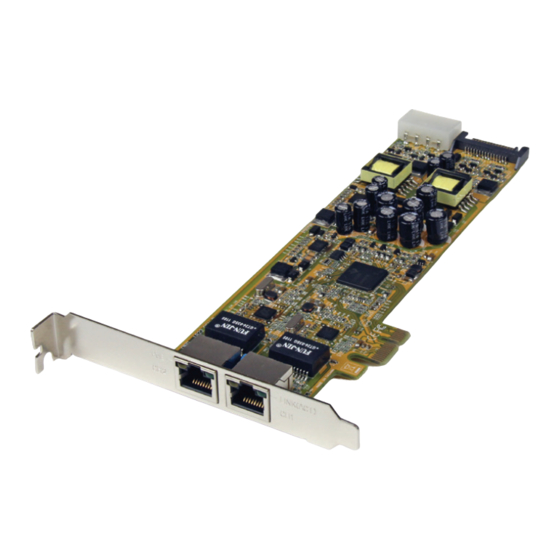

2 Port PCI Express Gigabit POE
Network Adapter
ST2000PEXPSE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/05/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ST2000PEXPSE
Summary of Contents for StarTech.com ST2000PEXPSE
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/05/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Verify Installation ............................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Suitable for any PCI Express-enabled client, server or workstation, the network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL). This PCIe NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support. - Page 5 LP4 Molex Power SATA Power Connector RJ45 Ethernet Ports PoE Enabled Link/Activity Color Status Link/Activity Solid On: Link detected Green Flashing: Data transmission Off: No link detected PoE Enabled Solid On: PoE enabled (Powered Device detected) Yellow Off: PoE disabled (Powered Device not detected) Instruction Manual...
-
Page 6: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Driver Installation
Driver Installation Windows 1. Upon starting Windows, if the “Found New Hardware” wizard appears on the screen, cancel/close the window and insert the included Driver CD into the computer’s CD/ DVD drive. 2. AutoPlay should give you the option to browse the files on the CD or automatically open the CD. -
Page 8: Specifications
Specifications Host Interface PCI Express1.1 (x1 slot connector) Form Factor Full/Low Profile Chipset ID Realtek RTL8111E External Connectors 2x RJ45 Ethernet Female 1x LP4 Molex Male Internal Connectors 1x SATA Power Male 2x PoE enabled LEDs 2x Link/Activity IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE Supported Standards 802.3at Compatible Networks... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
