Internal Drive Mounted Dual SATA Hard
Drive RAID Adapter
S322SAT3R
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/09/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com S322SAT3R
Summary of Contents for StarTech.com S322SAT3R
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/09/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................2 Hardware Installation ..........................2 Configure RAID ..................6 RAID Lock/Unlock Jumper Pins ......................6 LED Activity and Drive Failure Indicators ...........8 Hard Drive Initialization ................8 Specifications ..................10 Technical Support ..................11... -
Page 4: Product Diagram

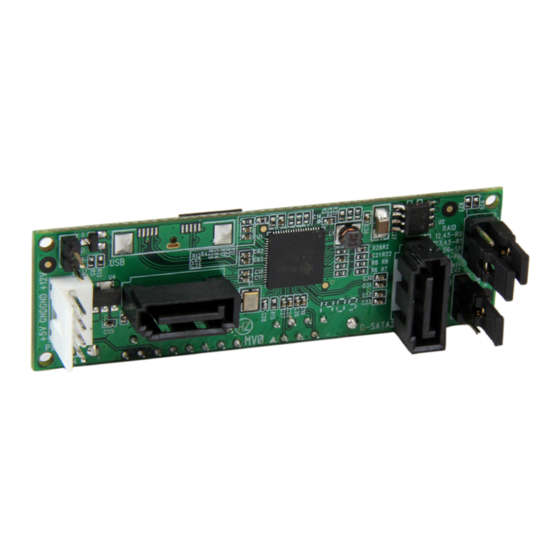

Product Diagram Front View Drive #1 SATA (DATA + Power) connector Rear View 2-pin LED connector RAID setting for HDD Activity LED jumper pins RAID unlock/ 4-pin power lock jumper connector pins Drive #2 SATA SATA host interface (DATA) connector connector Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1x Internal Drive Mounted Dual SATA Hard Drive RAID Adapter (S322SAT3R) • 2x SATA Cable (50cm) • 1x 4-pin to SATA Power Adapter • 1x Installation Manual System Requirements • 2 x 2.5/3.5” SATA Hard Drives or Solid State Drives (HDD/SSD) •... - Page 6 2. Connect the Drive #1 SATA (DATA + Power) connector on the S322SAT3R to the SATA (DATA+Power) connector on the first HDD/SSD mounted in your Computer System. 3. Using one of the included SATA Cables, connect the SATA (Data) connector on the second HDD/SSD to the Drive #2 SATA (DATA) connector on the S322SAT3R.
- Page 7 5. Using the remaining included SATA Cable, connect the SATA Host Interface connector on the S322SAT3R to an available SATA Interface on your Computer System. Instruction Manual...
- Page 8 S322SAT3R to an available SATA Power Source in your Computer System. 7. The S322SAT3R is now been installed, close your computer case and start your computer to build the RAID array. 8. (Optional) If you would prefer to lock your RAID array so it cannot be altered by the RAID mode setting jumper pins, power down and open your computer system, and set the RAID Lock/Unlock Jumper Pins to the lock position.
-
Page 9: Configure Raid
Configure RAID WARNING! Setting or changing your RAID modes may erase all data or metadata on your existing HDD/SSDs. RAID Lock/Unlock Jumper Pins The RAID lock/unlock jumper pins, located above the drive mounting brackets enable you to lock your RAID configuration so it cannot be changed. Or unlock your configuration so it can be changed. - Page 10 Use the included jumpers and the table below, to short the pins and set your desired RAID mode. RAID Mode Description Short Pins RAID 0 Striping - Improves system performance 1-2, 4-5 Mirror – Creates a redundant drive on the RAID 1 2-3, 4-5 second drive for security...
-
Page 11: Led Activity And Drive Failure Indicators
LED Activity and Drive Failure Indicators The S322SAT3R includes a 2-pin LED connector for HDD Activity LED enabling you to visually monitor drive activity and RAID array health. Please review the table below for a list of each specific indication. - Page 12 2. A dialog window should automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an “MBR” or “GPT” disk. GPT (GUID partition) is required for drives volumes larger than 2TB.
-
Page 13: Specifications
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
