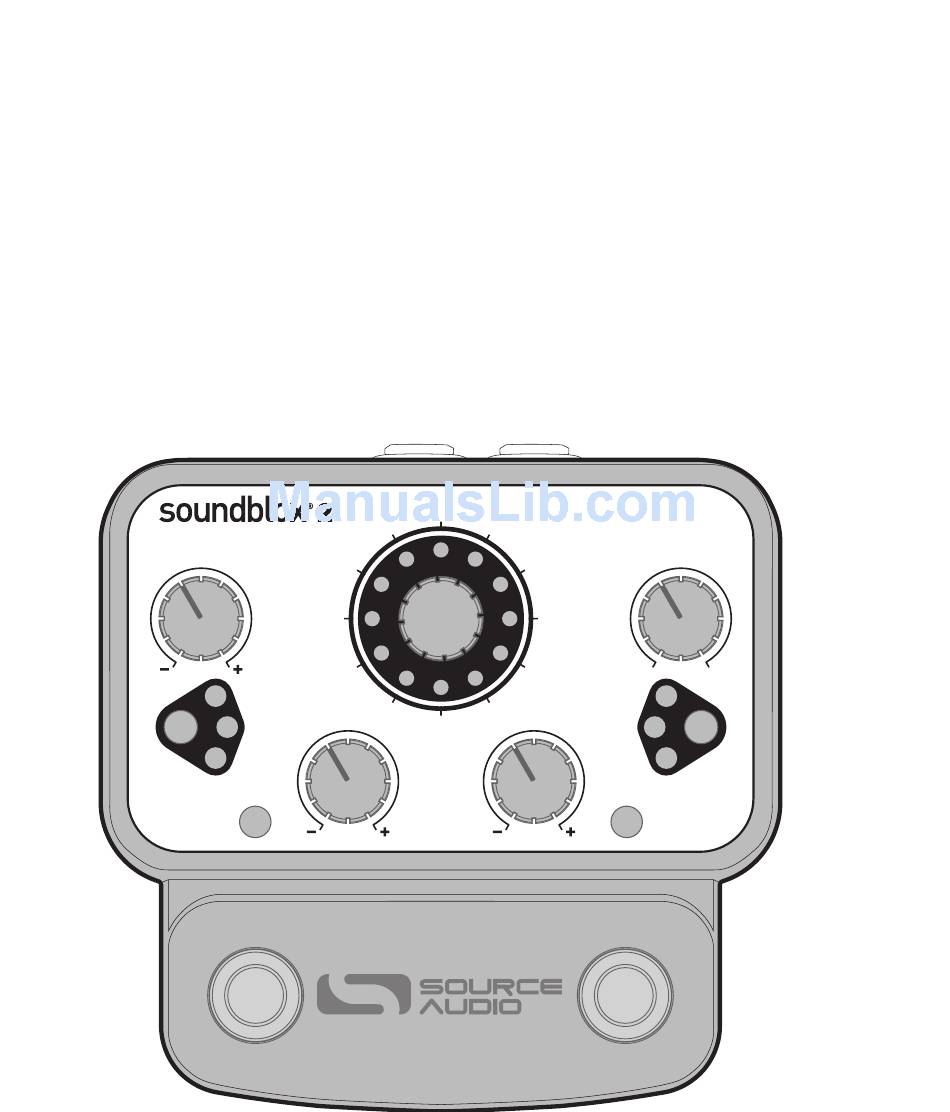

3. BRIEF KNOB, FOOTSWITCH, AND BUTTON DESCRIPTIONS

(see Controls section for more details)
EFFECT KNOB: selects the reverb type to be used.
•
TIME: adjusts the duration of the reverb.
•
OPTION: adjusts parameter selected by the OPTION SELECT button.
•
TREBLE: controls the high frequency damping on the reverb.
•
MIX: balances the wet and dry signals.
•
OPTION SELECT: selects which parameter will be controlled by the
•
OPTION knob.
CONTROL INPUT: selects the external controller type to be used.
•
FOOTSWITCHES: Enables/Disables a preset depending on the selected
•
footswitch. Press and hold to save an edited preset.
TIME
OPTION
SELECT
E-DOME
ARENA
STAGE
CLUB
PRE-DELAY
(OUTPUT)
ROOM
DIFFUSE
(RATE)
BASS
(DEPTH)
1
OPTION
DIMENSION REVERB
PLATE 1
PLATE 2
SPRING 1
SPRING 2
MODVERB
METAL BOX
ECHO
TREBLE
MIX
DRY WET
HH
MIDI
EXP
CONTROL
INPUT
2
