Sanyo DC-M3 Service Manual page 47

Separate mini component system
Hide thumbs

Advertisement

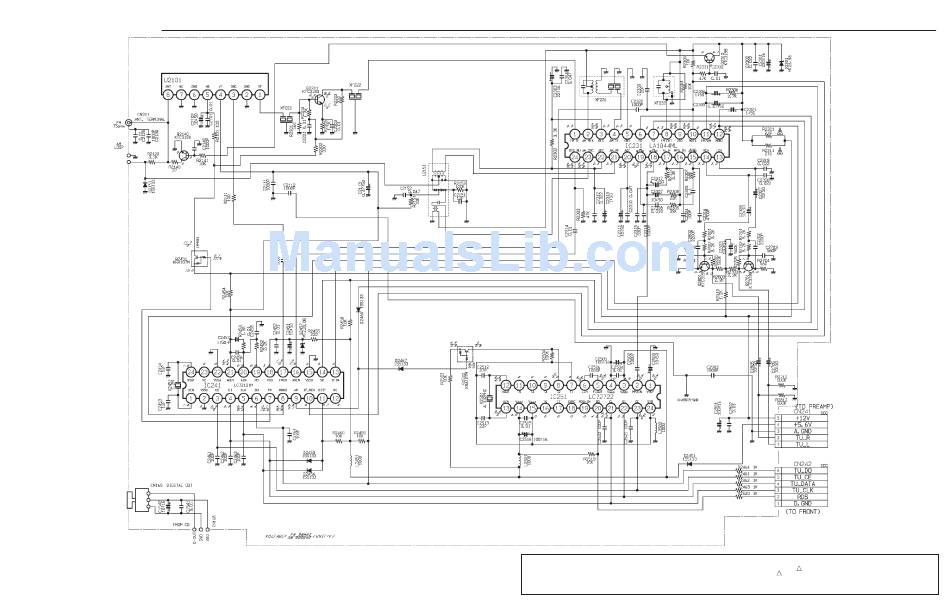

SCHEMATIC DIAGRAM (TUNER)
This is a basic schematic diagram.
- 28 -
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed during servicing. Components identified with the IEC symbol
components in which safety can be of special significance. When replacing a component identified by
same ratings of resistance, wattage or voltage that are designated in the parts list in this manual. Leakage-current or resistance measurements must be made to determine
that exposed parts are acceptably insulated from the supply circuit before returning the product to the customer.
- 29 -
in the parts list and the schematic diagram designated
! ! !
! ! !
, use only the replacement parts designated, or parts with the
