PARTS LIST
CD MECHANISM (CD11FT-SASH... Only Initial)
REF.NO.
PART NO.
CM01
620 231 4594 CHASSIS,FRAME
CM02
620 231 4648 PLATE,MAGNET
CM03
620 229 0393 CUSHION,RUBBER
CM04
620 229 0409 CUSHION,RUBBER
CM05
620 231 4631 HOLDER,MAGNET
CM06
620 231 4686 GEAR,DRIVE
CM07
620 231 4693 GEAR,SLIDE
CM08
620 231 4662 PULLEY,GEAR
CM09
620 231 4655 BELT,SQUARE
CM10
620 231 7274 MAGNET
CM11
620 231 4624 LIFTER,MECHA
CM12
620 231 4617 TABLE,LOADING
CM13
620 232 5507 ASSY,MOTOR,LOADING
CM14
620 022 0460 PLUG 5P
CM15
620 232 2124 SWITCH,PUSH2-1
CM16
620 232 8386 CUSHION
CM17
620 232 6603 PWB,MOTOR
CM18
411 021 6405 SCR S-TPG BIN 3X8

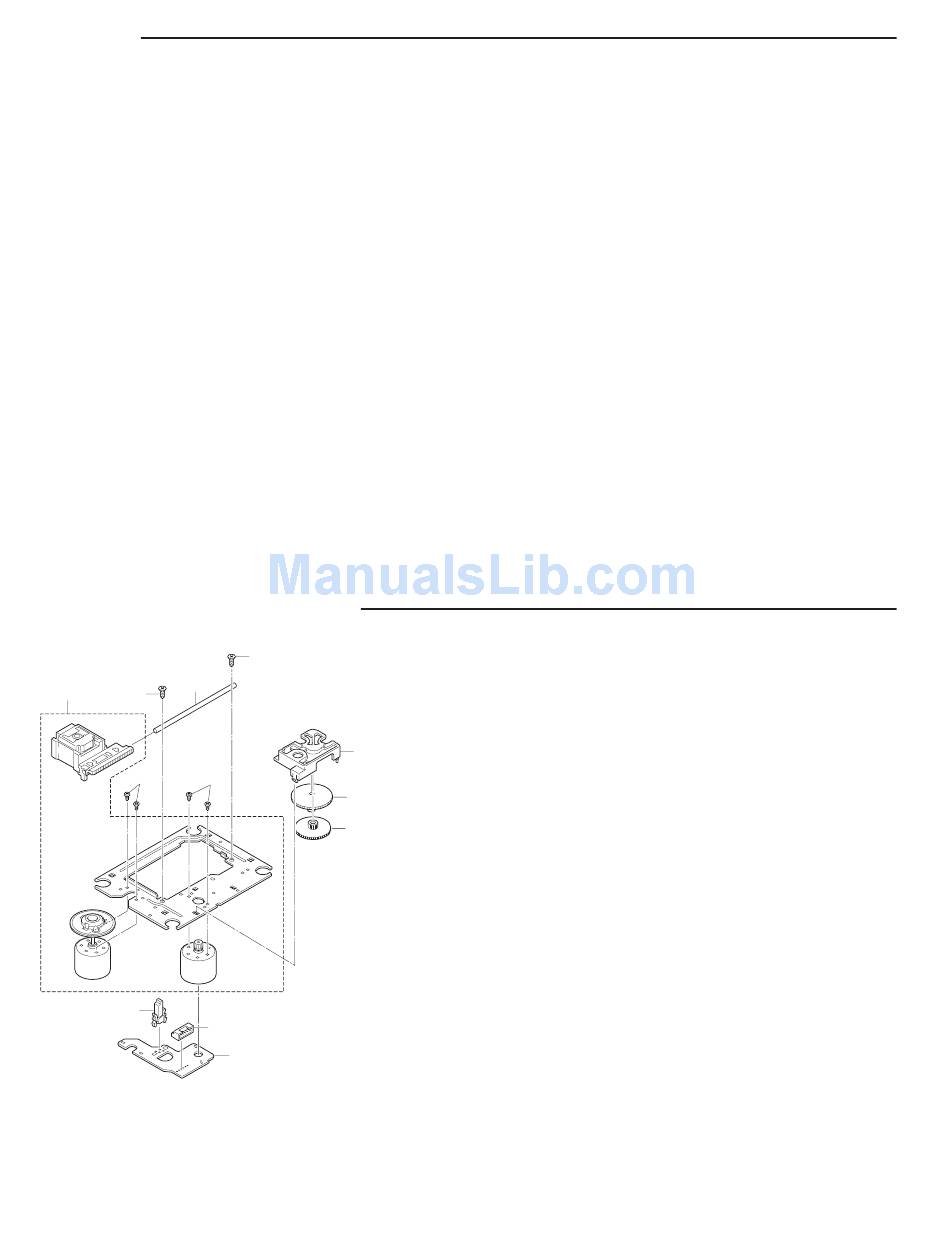

EXPLODED VIEW (CD MECHANISM)
PM06
PM09
PM02
PM08
PM07
DESCRIPTION
PM09
PM03
PM08
PM04
PM05
PM01
PM10
CD BASE MECHANISM(CDDA11-SASH...Only Initial)
REF.NO.
PART NO.
PM01
620 021 8436 PLUG 6P
PM02
620 233 0853 ASSY MOTOR,BASE CHASSIS ASSY
PM03
620 236 3776 COVER,GEAR
PM04
620 230 8753 GEAR MIDDLE,RELAY GEAR
PM05
620 230 8760 GEAR DRIVE
PM06
620 231 0596 SHAFT SLIDE,PICK RAIL
PM07
620 233 0860 SWITCH LEAG,LIMIT SWITCH
PM08
411 104 8401 SCR PAN PCS 2X3
PM09
411 027 5402 SCR S-TPG FLT 2.6X6
PM10
620 236 0836 PWB,MOTOR
