PSE / PoE Gigabit Fiber Power over
Ethernet Media Converter - Open SFP
ET1110PSE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/25/2012
*actual product may vary from photos
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ET1110PSE
Summary of Contents for StarTech.com ET1110PSE
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/25/2012...
- Page 2 Instruction Manual...
-
Page 3: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 4: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Software Installation ..........................3 Configuration Diagram ........................... 4 Operation ....................5 Front Panel Pushbuttons ........................5 Keyboard Hotkeys ............................. 5 KVM Switcher Software ........................... 6 Specifications ..................9 Technical Support ..................10 Warranty Information ................10 Instruction Manual... -
Page 5: Introduction

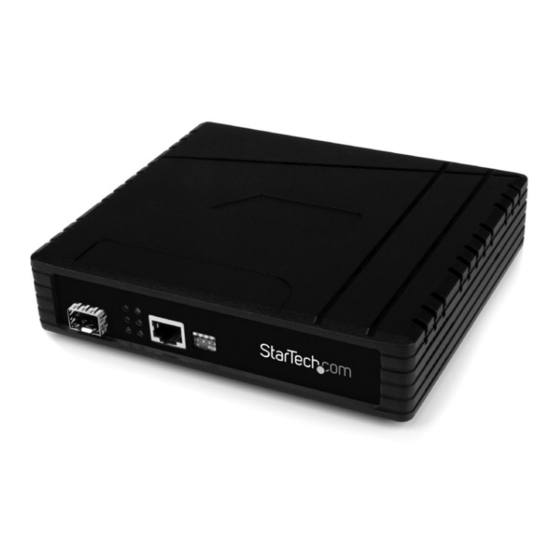

Introduction The ET1110PSE PSE / PoE Gigabit Fiber Power over Ethernet Media Converter with Open SFP creates an Ethernet-Fiber link, transparently converting from 10/100/1000Base-T copper to 1000Base-SX/LX fiber, while acting as a Power Sourcing Equipment (PSE) device. The PoE media converter offers the added flexibility of an... - Page 6 LED Indicators 100/1000 FULL FX LNK UTP LNK Function State Status Power on Converter Power Power off PSE power in-use PSE Status PSE standby Fiber link is ok Fiber link FX LNK Status No Fiber link Orange 1000Mbps LAN Speed 100/1000 Green 100Mbps...
- Page 7 DIP Switch Setting The ET1110PSE is provisioned through the use of a single 4‐pole DIP (Dual Inline Package) switch located on the front panel. Setting a switch down places it in the ON position. Switches 1&2: provide setting auto‐negotiation (Nway) or manual forced speed of 10, 100 or 1000.
-
Page 8: Installation
Installation 1. Insert a compatible SFP Gigabit module into the open SFP slot 2. Connect the power supply to the Fiber Media Converter 3. Connect the appropriately terminated Fiber cable to the Fiber Tx/Rx port 4. Connect the other end of the fiber cable into the router/switch/computer NIC/ another media converter (Remember to reverse the TX and RX leads between the two devices) 5. -
Page 9: Specifications
Specifications 1 x RJ45 Ethernet Connectors 1 x SFP slot 1 x DC Jack power connector Power Output 48V DC @ 15.4W Supported IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T Transmission Standards IEEE802.3z 1000BASE-SX IEEE802.3af PoE IEEE802.3x Flow Control Duplex Modes Full/Half Duplex Ethernet mode Dimensions 145mm x 65mm x 35mm... - Page 10 Instruction Manual...
-
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
