Manual

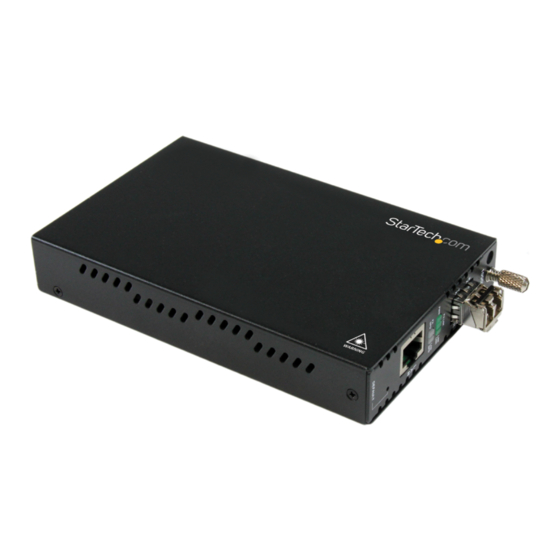

In-Band OAM Gigabit Ethernet to MM LC Fiber
Media Converter - 550m, Metal Housing
ET91000LCOAM
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/13/2013
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ET91000LCOAM
Summary of Contents for StarTech.com ET91000LCOAM
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/13/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Product Overview ..................1 Side 1 ................................1 Side 2 ................................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Factory Reset Procedure ...............2 Installation ....................3 Installation into ETCHS2U Chassis....................... 4 Operation ....................4 Web Login Page ............................4 Specifications ..................6 Technical Support ..................7 Warranty Information ................7... -
Page 4: Product Overview
Product Overview Side 1 DC Jack Power Side 2 Speed LC Connector RJ-45 Default Speed Link (Use to recover from lost password or to return all settings to factory default values) Link The LAN Speed and FX Speed LEDs use 2 colors to indicate speed. Green indicates Fast Ethernet (100Mbps), while Yellow indicates Gigabit Ethernet. -
Page 5: Introduction
Introduction Packaging Contents • 1x Fiber Media Converter • 1x Universal Power Adapter (NA/UK/EU) • 1x Instruction Manual System Requirements • 1000BASE-T compatible Ethernet network equipment • RJ45 terminated UTP Cat5e or better Ethernet cable • Available AC electrical outlet Factory Reset Procedure Apply power to the unit and allow approximately 30 seconds to fully boot. -
Page 6: Installation
Installation 1. Connect the fiber optic network cable from a computer/switch/media converter to the LC connector on the media converter. NOTE: When connecting the fiber cable, make sure to connect the Tx (transmit) terminal on one end, with the Rx (receive) terminal on the other end. 2. -
Page 7: Installation Into Etchs2U Chassis
Installation into ETCHS2U Chassis The ETCHS2U chassis supports the full line of StarTech.com ET series 2 media converters, which can be installed in a mixed fashion to suit your environment. The cards are designed to be hot-swappable, meaning the chassis need not be powered off in order to remove or insert a card. - Page 8 The configuration webpage will appear with the following options down the left side: For full operating instructions, please visit http://www.startech.com/ET91000LCOAM Instruction Manual...
-
Page 9: Specifications
Specifications IEEE 802.3, 802.3u, 802.3ab, 802.3z, Supported Standards 802.3ah, 802.1Q 1x RJ45 Female Connectors 1x LC Fiber Female 1x DC Power LED Indicator(s) Power, FX-Link, LAN Speed, LAN Link Compatible Fiber Mode Multimode Optical Wavelength 850nm Maximum Distance 550m Duplex Modes Full Duplex on Fiber Power Adapter 12V DC, 1A... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 Instruction Manual...
- Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
