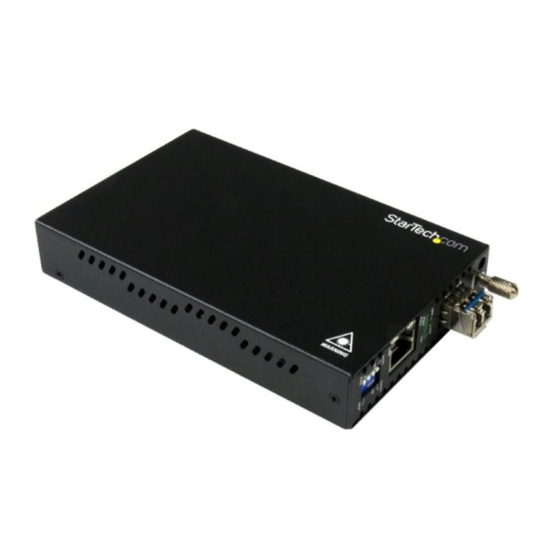

- Page 1 Gigabit Ethernet Fiber Media Converter - SM LC - 10km ET91000SM10 *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging contents ..........................1 System requirements ..........................1 Product diagram ..................2 Front view ..............................2 Rear view ..............................2 Install the media converter ..............3 LED indicators ..................4 DIP switch settings .................5 Link fault pass-through (LFP) ...............6 Enable LFP .............................. -
Page 4: Introduction
Introduction The ET91000SM10 converts a traditional copper Gigabit Ethernet connection (RJ45), into a Gigabit fiber connection. The media converter can then extend your network up to 10km (6.2mi.) using single-mode LC fiber-optic cable. If needed, the included SFP module (LC fiber connector) can be removed from the media converter and be replaced with a transceiver module with different specifications. -
Page 5: Product Diagram
Product diagram Front view DIP switch Gigabit RJ45 LEDs Gigabit SFP Thumbscrew transceiver module - 1310nm - LC Rear view Grounding DC power point input Instruction manual... -
Page 6: Install The Media Converter
Install the media converter The media converter features a pre-installed 1000Base-LX (transparent conversion) (1310 nm) Gigabit SFP transceiver module with LC connectors. This module transmits signals up to 10 km (6.2 mi.). Ensure the DIP switches are set appropriately to match your network infrastructure. Check with your network administrator, or your network documentation, as well as the DIP switch settings topic for details. -
Page 7: Led Indicators
LED indicators Panel RJ45 Status Indication Solid The media converter is powered on The media converter is upgrading (rapid PWR (Green) Blinking blinking) The media converter is not powered on Solid Remote power failure RPF (Green) Remote power is normal Solid Link fault pass-through is turned on LFP (Green) -
Page 8: Dip Switch Settings
RJ45 UTP is set to auto-negotiate RJ45 UTP forced mode is enabled Note: DIP Switch 2 is reserved, as it isn’t used on the ET91000SM10 media converter. It does not matter which setting (upward or downward) DIP Switch 2 is set to. -
Page 9: Link Fault Pass-Through (Lfp)
The RJ45 port supports Gigabit (1000Base-T) network devices and cables only. It does not support 10/100Mbps copper (RJ45) network devices. The ET91000SM10 is a transparent media converter (it is not a switch). Therefore, the duplex setting of your fiber network equipment must match that of the media converter’s RJ45 copper UTP port. -
Page 10: Troubleshoot The Fiber Link
Troubleshoot the Fiber link The media converter supports Gigabit fiber devices and cables only. It does not support 10/100Mbps fiber network devices or SFPs. • The fiber port supports an auto-negotiate (default) or FORCE (forced) mode setting. When connected to third-party equipment (for example, a Cisco switch) you might encounter fiber link problems. -
Page 11: Technical Support
