StarTech.com ET1000SM40LC Installation Manual

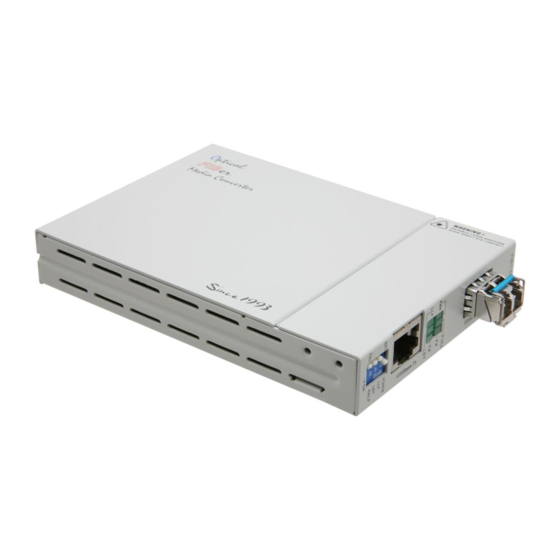

ET1000SM40LC
Gigabit Single Mode Fiber Media Converter
LC - 40 km
Installation Guide

Packaging Contents

• 1 x ET1000SM40LC media converter
• 1 x Power Adapter
• 1 x Installation Guide

System Requirements

• 1000Base network infrastructure
• Single Mode fiber cable

Installation

1. Connect the fiber network cable to the LC connector on
the fiber media converter. Using UTP Ethernet cable,
connect the cable to the RJ45 jack.
2. Set the Auto/Force switch on the media converter, to
turn auto negotiate on or off. If set to Force, set the
Duplex switch (full/half) according to the specifications
of your networking equipment.

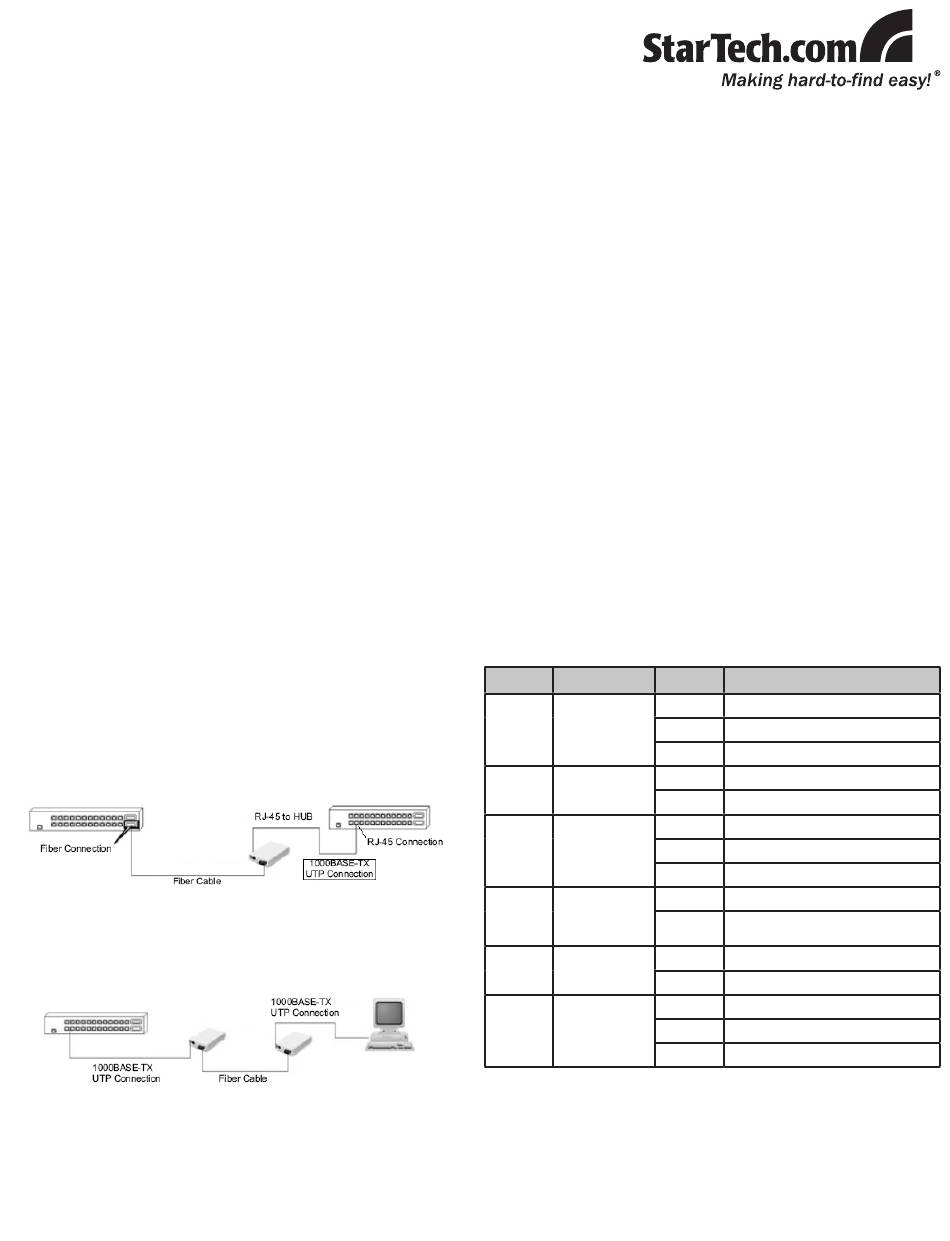

3. The following example illustrates the connection
scheme when connecting from a 1000Base-TX port of
a hub/switch to a 1000Base-SX/LX port of another hub/
switch, through the fiber media converter:
4. The following example illustrates the connection
scheme when connecting from a 1000Base-TX port on
a hub/switch to a 1000BASE-TX Network Interface Card
(NIC) in a computer through the fiber media converter:

DIP Switch Configuration

Full/ Half:
The Fiber and UTP Duplex will be configured in Full
duplex or Half duplex.
* This switch includes an "Auto Reset" function so the
power-reset is not necessary when any modification is
made here.
LBT:
Loop-back test and get remote side status :
(OFF = Not Active, ON = Active).
* If the local side loop-back test is active, then LEDs
(except PWR) will all blink rapidly and refresh to display
the remote side status.
LLF:
Link Loss Forwarding (OFF = Not active, On = Active)
Auto/Force:
Auto negotiate duplex mode, or force Full/Half via DIP
switches.

LED Configuration

LED Name Status
PWR Power
Full Duplex Mode
FX Fiber Link
Loop-back
LBT Test/Get CPE
status
Link Loss
LLF
Forwarding
TX Ethernet Link
Description
ON Unit is powered
OFF Unit is not powered
Blink LBT mode enabled
ON Fiber side Full Duplex Mode
OFF Half Duplex Mode
ON Fiber link is detected
OFF Fiber link is not detected
Blink Fiber activity
Blink Mode enabled
OFF Mode disabled
ON Mode enabled
OFF Mode disabled
ON UTP link is detected
OFF UTP link is not detected
Blink UTP activity
