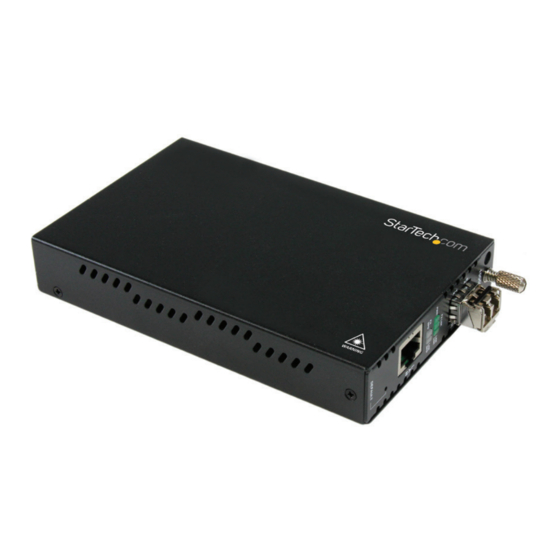

In-Band OAM Gigabit Ethernet to MM LC Fiber
Media Converter - 550m, Metal Housing
ET91000LCOAM
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/10/2016
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com 8STET91000LCOAM
Summary of Contents for StarTech.com 8STET91000LCOAM
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/10/2016...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Overview ..................1 Side 1 ................................1 Side 2 ................................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Factory Reset Procedure ...............2 Installation ....................3 Installation into ETCHS2U Chassis....................... 4 Operation ....................4 System Information Section ........................5 Local Settings Section .......................... -
Page 4: Product Overview
Product Overview Side 1 DC Jack Power Side 2 Speed LC Connector RJ-45 Default Speed Link (Use to recover from lost password or to return all settings to factory default values) Link The LAN Speed and FX Speed LEDs use 2 colors to indicate speed. Green indicates Fast Ethernet (100Mbps), while Yellow indicates Gigabit Ethernet. -
Page 5: Introduction
Introduction Packaging Contents • 1x Fiber Media Converter • 1x Universal Power Adapter (NA/UK/EU/AU) • 1x Instruction Manual System Requirements • 1000BASE-T compatible Ethernet network equipment • RJ45 terminated UTP Cat5e or better Ethernet cable • Available AC electrical outlet Factory Reset Procedure Apply power to the unit and allow approximately 30 seconds to fully boot. -
Page 6: Installation
Installation 1. Connect the fiber optic network cable from a computer/switch/media converter to the LC connector on the media converter. NOTE: When connecting the fiber cable, make sure to connect the Tx (transmit) terminal on one end, with the Rx (receive) terminal on the other end. 2. -
Page 7: Installation Into Etchs2U Chassis
Installation into ETCHS2U Chassis The ETCHS2U chassis supports the full line of StarTech.com ET series 2 media converters, which can be installed in a mixed fashion to suit your environment. The cards are designed to be hot-swappable, meaning the chassis need not be powered off in order to remove or insert a card. -
Page 8: System Information Section
The configuration webpage will appear with the following section down the left side. Each can be expanded to reveal several configuration options and tool, which will be explained in the following pages System Information Section Network Information The information displayed on this page gives specific device information, network information, and port status for the local ET91000LCOAM and for any remote unit that is accessible via IEEE802.3ah OAM in-band management. -
Page 9: Local Settings Section
DD Information The DD or DDOM information is read from the MSA compliant SFP module and can be displayed via the web user interface. Local Settings Section IP Configuration Use this screen to configure TCP/IP settings for the local unit. Click the Apply button to save your settings. - Page 10 Password Settings Use this screen to change the web console login password. Key in the current password (Default: admin) and then enter your desired new password twice. Click the Apply button to save your settings. Converter Configuration The Converter configuration menu includes special features of the ET91000LCOAM, defined below.
- Page 11 Management - (Default: Enabled) If disabled, all management communication with a remote converter will be stopped. Only normal Ethernet transmission will occur without any possibility of remote management through 802.3ah OAM. Jumbo Frames (9k byte packets) – (Default: Disabled) Enable to add Jumbo Frame support.
- Page 12 Port Configuration Use this screen to configure the Ethernet (TP) and the optical port (FX). Options include enabling / disabling the port, setting auto or forced Ethernet mode, enabling 802.3x (flow control), and setting ingress and egress rate limiting. Note: Rate limiting has a granularity of 64K so the rate can be set from 64k to 1000M in 64K steps.
- Page 13 VLAN Group Configuration ET91000LCOAM supports up to 16 VLAN groups. By using the check boxes for each port, the access to different VIDs can be controlled. Click the Apply button to save your settings. Per Port Configuration ET91000LCOAM actually has three different ports: the external copper, external fiber, plus the internal CPU port.
- Page 14 The following operations may be performed to the outgoing frames: 1. Replace Tag - The device will remove VLAN tags from packets then add new tags to them. The inserted tag is defined in ”VLAN Group Index”. 2. Remove Tag - The switch will remove VLAN tags from packets, if they are tagged. The switch will not modify packets received without tags.
- Page 15 Q in Q or double VLAN tagging is defined in IEEE802.1ad. Double VLAN tagging is required when a service provider wishes to carry a customer’s VLAN tagged traffic through its own VLAN network. In MEF (Metro Ethernet Forum) terms, the first tag or “inner tag”...
- Page 16 Note: To use the OAM functions, the 802.3ah Functions setting must be Enabled (Default: Disabled). 802.3ah Mode – (Default: Passive) Used to configure an OAM pair. In a pair, one unit must be ‘active’ , while the other must be ‘passive’ . Typically the remote converter (CPE) would be in ‘passive’...
- Page 17 Errfrmsec_Win (Error Frame Seconds Summary Window) – (Default: 10) This window of time can be adjusted from 10 to 900 seconds. This is the "Window" used to gather error frame seconds (the number of 1-second intervals with at least one frame error).
-
Page 18: Tools Section
Tools Section System Reboot When the converter is rebooted, all counters and registers are cleared and the converter starts fresh. If OAM is enabled, the discovery process will start. After selecting the System Reboot menu item, a confirmation dialogue box will pop up. Click “OK” to reboot the converter or click “Cancel”... - Page 19 Save and Restore After configuring the converter, the entire configuration can be saved as a backup file using the SaveToFlash button. Once saved, the configuration file can be loaded at any time using the LoadFromFlash button. To restore all settings to factory default, click the ResetToFactory button. Note: The IP address will also be reset to default (10.1.1.1), so you may lose management contact with the converter.
-
Page 20: Logging Out
Logging Out Click the Logout button at the bottom of the web interface to terminate your session. Once logged out, the username / password will be required to login again. Instruction Manual... -
Page 21: Specifications
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 22 Instruction Manual...
- Page 23 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
