StarTech.com ET10GSFP Manual

StarTech.com ET10GSFP Manual

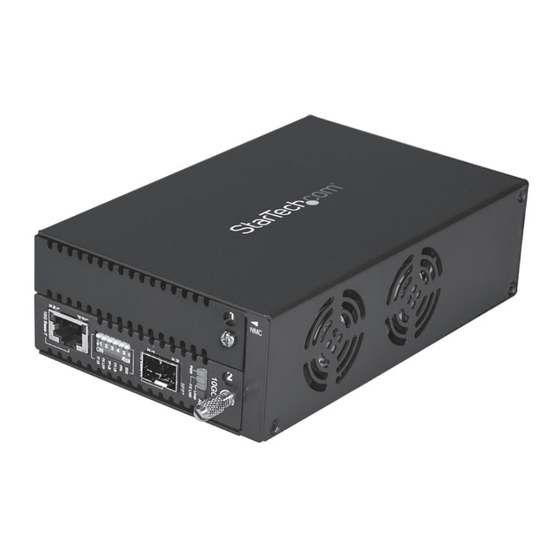

10gbe fiber media converter with open sfp+ slot

Advertisement

Quick Links

10GbE Fiber Media Converter with Open
SFP+ Slot
ET10GSFP
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ET10GSFP.
Manual Revision: 11/02/2017
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET10GSFP and is the answer not in the manual?

Questions and answers

Summary of Contents for StarTech.com ET10GSFP

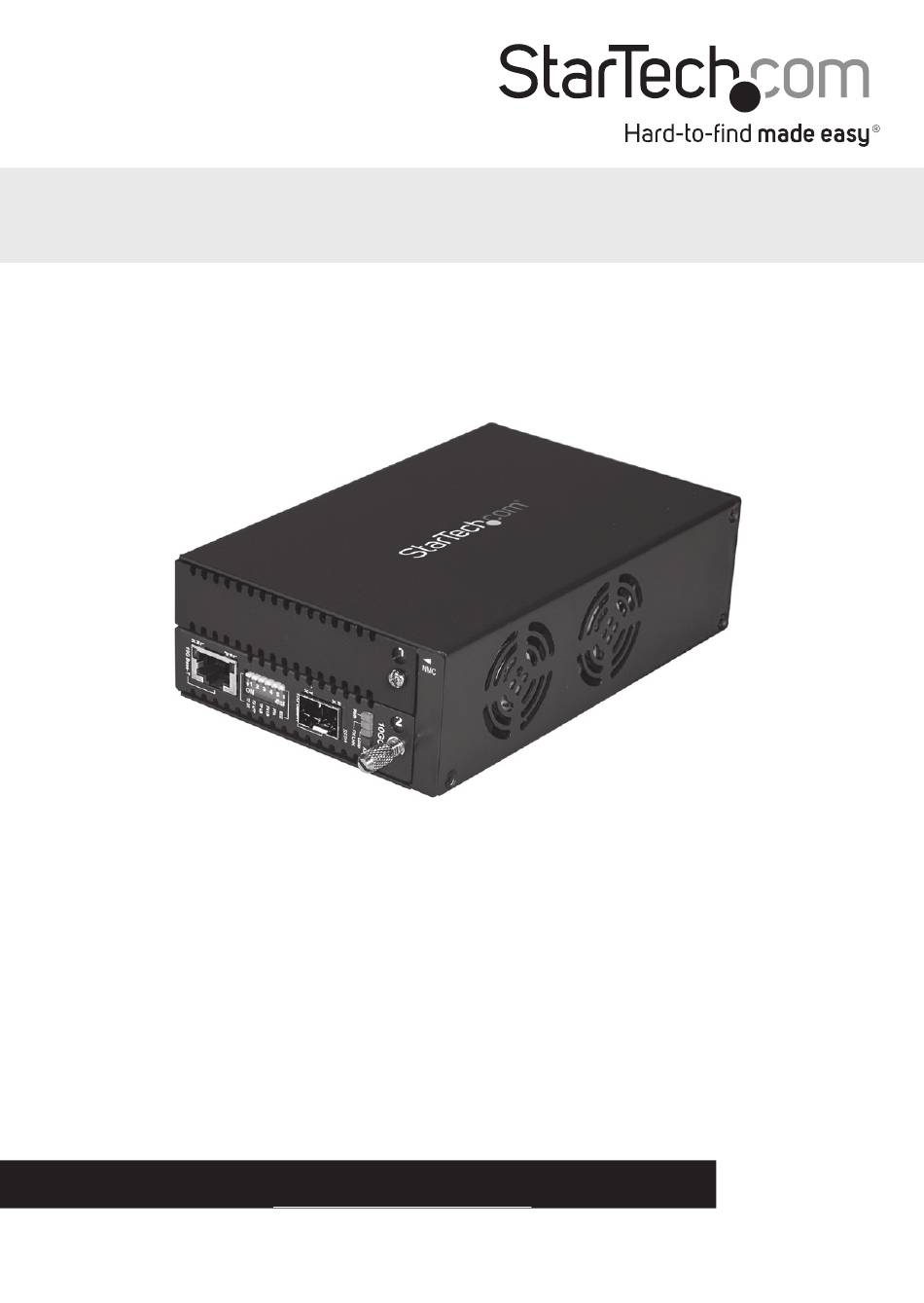

  • Page 1 10GbE Fiber Media Converter with Open SFP+ Slot ET10GSFP *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Introduction ....................1 Package contents ............................1 Requirements ............................. 1 Product diagram ..................2 Front view ..............................2 Rear view ..............................2 Using the DIP switches ................3 Install the media converter ..............4 Installing a second SFP card module ..........5 Remove a card module from another media converter..............
  • Page 4: Introduction

    • Terminated fiber-optic cable (dependent on the SFP+ transceiver module used) • Available AC electrical outlet • Terminal emulation software such as PuTTY (if using the serial console port for management) Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ET10GSFP. Instruction manual...
  • Page 5: Product Diagram

    Product diagram Front view DIP switches Card slot 1 RJ45 LEDs Card slot 2 Thumb screw 10Gb RJ45 SFP+ slot LEDs Rear view Slot selection switch DC power Management input type switch DB9 RS232 (serial console command) Instruction manual...
  • Page 6: Using The Dip Switches

    Using the DIP switches Note: By default, all of the DIP switches are set to the off position. See the table below for more information about the functions of the different DIP switches. DIP switch Function State Description number Enable if TP cable length is 30 m or less.
  • Page 7: Install The Media Converter

    Install the media converter 1. Turn off any networking equipment that will be connected to the media converter. 2. Insert a 10 Gigabit MSA-compliant SFP+ module into media converter’s SFP+ slot. The SFP+ transceiver must be compatible with your fiber network infrastructure. Note: The media converter can only be used with 10 Gigabit SFP+ modules and will not support 10/100/1000Mbps modules.
  • Page 8: Installing A Second Sfp Card Module

    SFP card module (with LC connectors). Once a compatible SFP card module is installed, you can integrate the media converter into both 10Gb and 1Gb networks. The media converter is compatible with the following StarTech.com products: • ET91000SFP2C -...
  • Page 9: Managing The Media Converter

    Managing the media converter The media converter features two slots: • Slot 1: Expansion slot for installing another SFP/SFP+ card module • Slot 2: Preinstalled SFP+ card module The media converter can be controlled using the DB9 RS232 serial port located on the rear of the media converter.
  • Page 10: Using The Serial Console Command Port

    Using the serial console command port The media converter features a DB9 (RS232 serial) port, which enables console-based management commands, for enhanced customization and control of the converter. Media converter default settings: • Baud Rate: 38,400 • Data bits: 8 •...
  • Page 11 Update with X-Modem You can update the firmware on the media converter from the console interface by downloading the latest firmware version from the StarTech.com website. Caution! To update to firmware on the device, you must use a terminal emulation program that supports X-Modem.
  • Page 12: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
