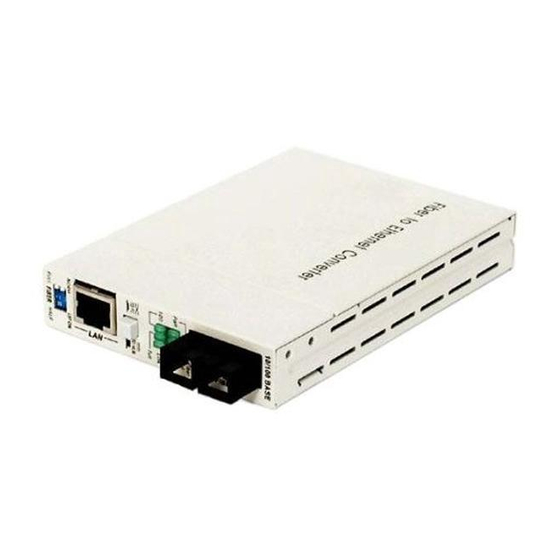

- Page 1 MEDIA CONVERTER Fiber to UTP Ethernet Media Converter ET90110SC ET90110ST Instruction Guide * Actual product may vary from photo Revised: December 6, 2002 The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Monitoring Your Media Converter ........ -
Page 4: Warranty Information
ST or SC connectors in order to use this device. NOTE: StarTech.com carries a wide range of Cat5 UTP and fiber optic cables to suit your networking needs. Visit www.startech.com and click on the “Networking” tab for product information, as well as ideas and suggestions on setting up your network. -
Page 5: Technical Specifications
• Chassis mount bracket screws Installation This section will guide you through the installation of your media converter. Please read through the instructions carefully and complete each step in the order listed. WARNING! Exposure to live fiber optic cable can potentially pose an irreversable threat to your vision. -
Page 6: Using The Loop-Back Testing Feature
The media converter uses a Fiber Link Forwarding feature that allows indirect sensing of a Fiber Link Loss via the 100 Base-TX UTP connection. When the media converter detects a Link Loss condition on the Receive fiber (Fiber LNK OFF), it disables the UTP transmitter so that a Link Loss condition will be sensed on the receive UTP port.
