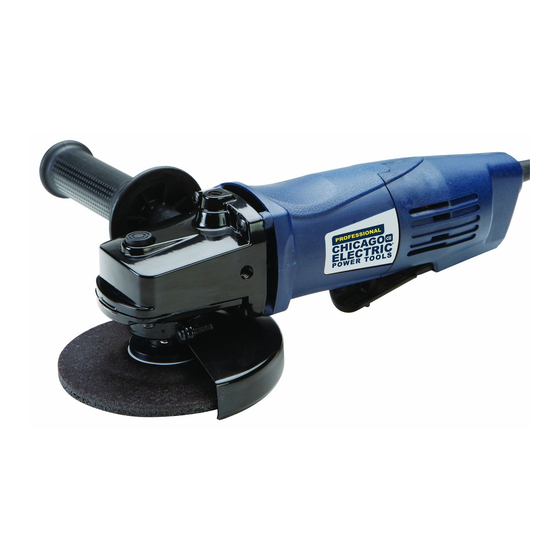

4-1/2" Angle grinder
Set up And OperAting inStructiOnS
Visit our website at: http://www.harborfreight.com
read this material before using this product.
Failure to do so can result in serious injury.
SAVe thiS MAnuAl.
©
Copyright
2008 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of Harbor
Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improve-
ments, actual product may differ slightly from the product described herein. Tools required for assembly
and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Model
65519
®
. All rights reserved. No portion of this manual or any artwork
Manual revised 10h
Advertisement
Table of Contents
Related Manuals for Chicago Electric 65519
Summary of Contents for Chicago Electric 65519
- Page 1 © ® Copyright 2008 by Harbor Freight Tools . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improve- ments, actual product may differ slightly from the product described herein.
-
Page 2: Important Safety Information
SKU 65519 For technical questions, please call 1-800-444-3353. Page 2... - Page 3 NIOSH-ap- injury. proved for the specific hazards in the work area. use personal protective equip- ment. Always wear eye protection. Safety equipment such as dust mask, SKU 65519 For technical questions, please call 1-800-444-3353. Page 3...
-
Page 4: Grinding, Sanding Or Wire Brushing Operation Safety Warnings
Incorrectly sized SKU 65519 For technical questions, please call 1-800-444-3353. Page 4... - Page 5 The dust mask or respira- tor must be capable of filtrating par- do not use accessories that re- ticles generated by your operation. quire liquid coolants. Using water SKU 65519 For technical questions, please call 1-800-444-3353. Page 5...
-
Page 6: Kickback And Related Warnings
These carry important safety • Lead from lead-based paints information. If unreadable or miss- • Crystalline silica from bricks and ce- ing, contact Harbor Freight Tools for a ment or other masonry products replacement. • Arsenic and chromium from chemi- cally treated lumber Avoid unintentional starting. -
Page 7: Safety Warnings Specific For Grinding Operations
Flanges for cut-off use special care when working wheels may be different from grinding corners, sharp edges etc. Avoid wheel flanges. bouncing and snagging the ac- SKU 65519 For technical questions, please call 1-800-444-3353. Page 7... -
Page 8: Safety Warnings Specific For Sanding Operations
SAVe theSe peated or long-term exposure to vibra- tion may cause temporary or permanent inStructiOnS. physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration-related injury: SKU 65519 For technical questions, please call 1-800-444-3353. Page 8... -
Page 9: Double Insulated Tools: Tools With Two Prong Plugs
“W-A” (“W” in Canada) to standards of Underwriters Labora- indicate it is acceptable for outdoor tories, Inc., the Canadian Standard use. Association, and the National Electri- SKU 65519 For technical questions, please call 1-800-444-3353. Page 9... - Page 10 A 150% of the rated amperes. Symbology Double Insulated Canadian Standards Association Underwriters Laboratories, Inc. Volts Alternating Current Amperes No Load Revolutions per Minute n 0 xxxx/min. (RPM) SKU 65519 For technical questions, please call 1-800-444-3353. Page 10...
-
Page 11: Specifications
When unpacking, check to make sure that the item is intact and undamaged. If any parts are missing or broken, please call Harbor Freight Tools at the number shown on the cover of this manual as soon as possible. inStructiOnS FOr... - Page 12 Thread the Outer Flange Arbor Nut Suspend wheel using a pin or finger onto the Spindle. Wrench tighten through the arbor hole. only enough so that the wheel is se- SKU 65519 For technical questions, please call 1-800-444-3353. Page 12...
-
Page 13: Work Piece And Work Area Set Up
The work area must not rial, allowing the tool to operate at allow access by children or pets to full speed. If the tool bogs down, use prevent injury and distraction. lighter pressure. SKU 65519 For technical questions, please call 1-800-444-3353. Page 13... -
Page 14: Maintenance And Servicing
SeriOuS injurY FrOM tOOl FAilure: do not use damaged equipment. if abnormal noise or vibration occurs, have the problem corrected before further use. SKU 65519 For technical questions, please call 1-800-444-3353. Page 14... -
Page 15: Troubleshooting
Use only proper type of material. disc accessory in good condition. Follow all safety precautions whenever diagnosing or servicing the tool. disconnect power supply before service. SKU 65519 For technical questions, please call 1-800-444-3353. Page 15... -
Page 16: Please Read The Following Carefully
Spring Locking button Outer Flange Tapping Screw Tapping Screw Plain Washer Power Cord Clamp Grinding Wheel Clamp Power Cord Bevel Gear Cable Jacket Bearing Handle Armature Pin Wrench reV 08k SKU 65519 For technical questions, please call 1-800-444-3353. Page 16... -
Page 17: Assembly Diagram
If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not avail- able individually as replacement parts. SKU 65519 For technical questions, please call 1-800-444-3353. Page 17... -
Page 18: Limited 90-Day Warranty
90 dAY WArrAntY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this prod- uct is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
