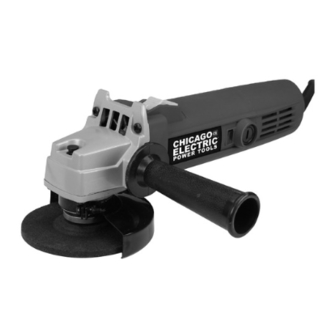

4 in. angle grinder

Advertisement

4 IN. Angle Grinder
Item 91222
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
©
Copyright
2004 by Harbor Freight Tools
or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
Manual Revised 11g
Visit our website at: http://www.harborfreight.com
Email our technical support at: tech@harborfreight.com
®
. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 91222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chicago Electric 91222

  • Page 1 . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein.
  • Page 2: Important Safety Information

    Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Page 2 For technical questions, please call 1-800-444-3353. SKU 91222...
  • Page 3: Safety Warnings Common For Grinding, Sanding Or Wire Brushing Operations

    Accessories with arbor holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. SKU 91222 For technical questions, please call 1-800-444-3353. Page 3...
  • Page 4 15. Do not operate the power tool near flammable other reproductive harm. Wash hands after handling. materials. Sparks could ignite these materials. (California Health & Safety Code § 25249.5, et seq.) Page 4 For technical questions, please call 1-800-444-3353. SKU 91222...
  • Page 5: Safety Warnings Specific For Sanding Operations

    To reduce the risk of vibration-related injury: for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. SKU 91222 For technical questions, please call 1-800-444-3353. Page 5...
  • Page 6: Grounded Tools: Tools With Three Prong Plugs

    Underwriters will not fit the outlet, have a proper outlet installed by Laboratories, Inc., the Canadian Standard a qualified electrician. Association, and the National Electrical Code. Page 6 For technical questions, please call 1-800-444-3353. SKU 91222...
  • Page 7: Extension Cords

    5.1 – 7.0 7.1 – 12.0 12.1 – 16.0 16.1 – 20.0 * Based on limiting the line voltage TABLE A drop to five volts at 150% of the rated amperes. SKU 91222 For technical questions, please call 1-800-444-3353. Page 7...
  • Page 8 5. Check the Wheel Guard to ensure it is firmly in place. Adjust if necessary before proceeding. 2. Press in and hold the LOCK PIN (12) to prevent the Spindle from turning. Page 8 For technical questions, please call 1-800-444-3353. SKU 91222...
  • Page 9 Perform a ring-test on the wheel (unless wheel is smaller than 4″ or is an unusual shape) as follows: a. Suspend wheel using a pin or finger through the arbor hole. SKU 91222 For technical questions, please call 1-800-444-3353. Page 9...
  • Page 10: Work Piece And Work Area Set Up

    TO PREVENT SERIOUS INJURY: Grip the tool firmly with both hands. 1. Make sure that the SLIDE SWITCH (19) is not locked on, then plug in the tool. Page 10 For technical questions, please call 1-800-444-3353. SKU 91222...
  • Page 11: Cleaning, Maintenance, And Lubrication

    2. Replace the CARBON BRUSH with identical Maintenance And Servicing replacement parts from Harbor Freight Tools. 3. Replace the BRUSH CAP on the Procedures not specifically explained HOUSING and screw-in to tighten. in this manual must be performed only by a qualified technician.
  • Page 12: Troubleshooting

    LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Page 12 For technical questions, please call 1-800-444-3353. SKU 91222...
  • Page 13 Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. SKU 91222 For technical questions, please call 1-800-444-3353. Page 13...
  • Page 14 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
  • Page 16 3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353...
