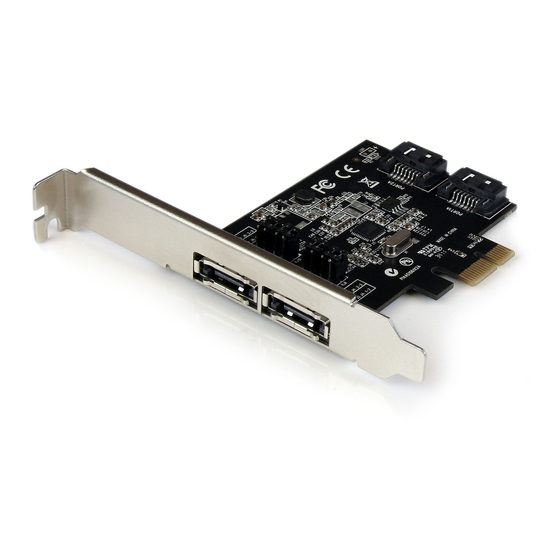

PCI Express eSATA/SATA 6Gbps Controller
PEXESAT322I
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/18/2012
Advertisement
Table of Contents
Related Manuals for StarTech.com PEXESAT322I
Summary of Contents for StarTech.com PEXESAT322I
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/18/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ................4 Driver Installation ..................4 Verifying Installation ................5 Windows ............................... 5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
Introduction The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed. -
Page 5: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 6 SATA 2 SATA 1 eSATA 2 eSATA 1 Jumper Position Active Port J1~J4 1-2 Closed SATA 1 2-3 Closed (default) eSATA 1 J5~J8 1-2 Closed SATA 2 2-3 Closed (default) eSATA 2 Jumper Settings Of the 4 physical ports located on the card, only two of the ports can be active at a time.
-
Page 7: Hardware Installation
Hardware Installation 1. Turn your computer off and any peripherals connected to the computer (i.e. Printers, external hard drives, etc.). Unplug the power cable from the rear of the power supply on the back of the computer and disconnect all peripheral devices. 2. -
Page 8: Verifying Installation
Verifying Installation Windows From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. In the Device Manager, under the “IDE ATA/ATAPI controllers” category, you should see a new Asmedia SATA controller device listed. -
Page 9: Specifications
Specifications PCI Express 2.0 (x1 slot connector) Host Interface SATA revision 3.0 Form Factor Full/Low Profile Chipset ID ASMedia AS1061 External Connectors 2 x 7-pin eSATA receptacle Internal Connectors 2 x 7-pin SATA receptacle Maximum Data Transfer Rate SATA III: 6 Gbps Port Multiplier Support Operating Temperature 0°C ~ 50°C (32°F ~ 122°F) -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
