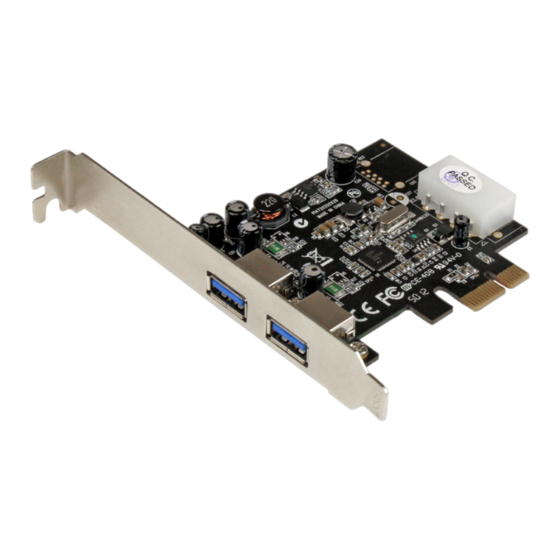

2 Port PCI Express SuperSpeed USB 3.0 Card
with UASP - LP4 Power
PEXUSB3S25
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/09/2013
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEXUSB3S25
Summary of Contents for StarTech.com PEXUSB3S25
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/09/2013...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Verifying Installation ..........................5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1x USB 3.0 PCI Express Card • 1x Low Profile Bracket • 1x Driver CD • 1x User Manual System Requirements • Available PCI Express slot • Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64),Windows® Server 2008 R2, 2003(32/64), Linux 2.6.31 or later Instruction Manual... -
Page 5: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Driver Installation
Driver Installation Windows 1. Upon starting Windows, if the Found New Hardware wizard appears on the screen, cancel/close the window and insert the included Driver CD into the computer’s CD/ DVD drive. 2. Run the Autorun.exe application from the Autoplay menu. If Autoplay is disabled on your system, browse to your CD/DVD drive and run the application. -
Page 7: Verifying Installation
4. Then click on “720201/720202” to start the installation: 5. Follow the on-screen instructions to complete the installation. NOTE: You may be prompted to restart once the install completes. Verifying Installation Windows 1. Open the Device Manager by right-clicking on Computer, and then select Manage. -
Page 8: Specifications
Specifications Host Interface PCI Express 2.0 (x1 slot connector) Chipset NEC uPD720202 Number of Ports External Connectors 2x USB 3.0 type A female Internal Connectors 1x LP4 Molex power male Standards USB 3.0 rev. 1.0 Intel xHCI rev. 0.95 Maximum Data Transfer Rate USB 3.0: 5 Gbps Operating Temperature 0°C ~ 50°C (32°F ~ 122°F) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
