Ganz ZC-D4039 PHA Operation Manual

MINI DOME COLOR CAMERA
ZC-D4039 NHA/ZC-D4039 PHA
Operation Manual

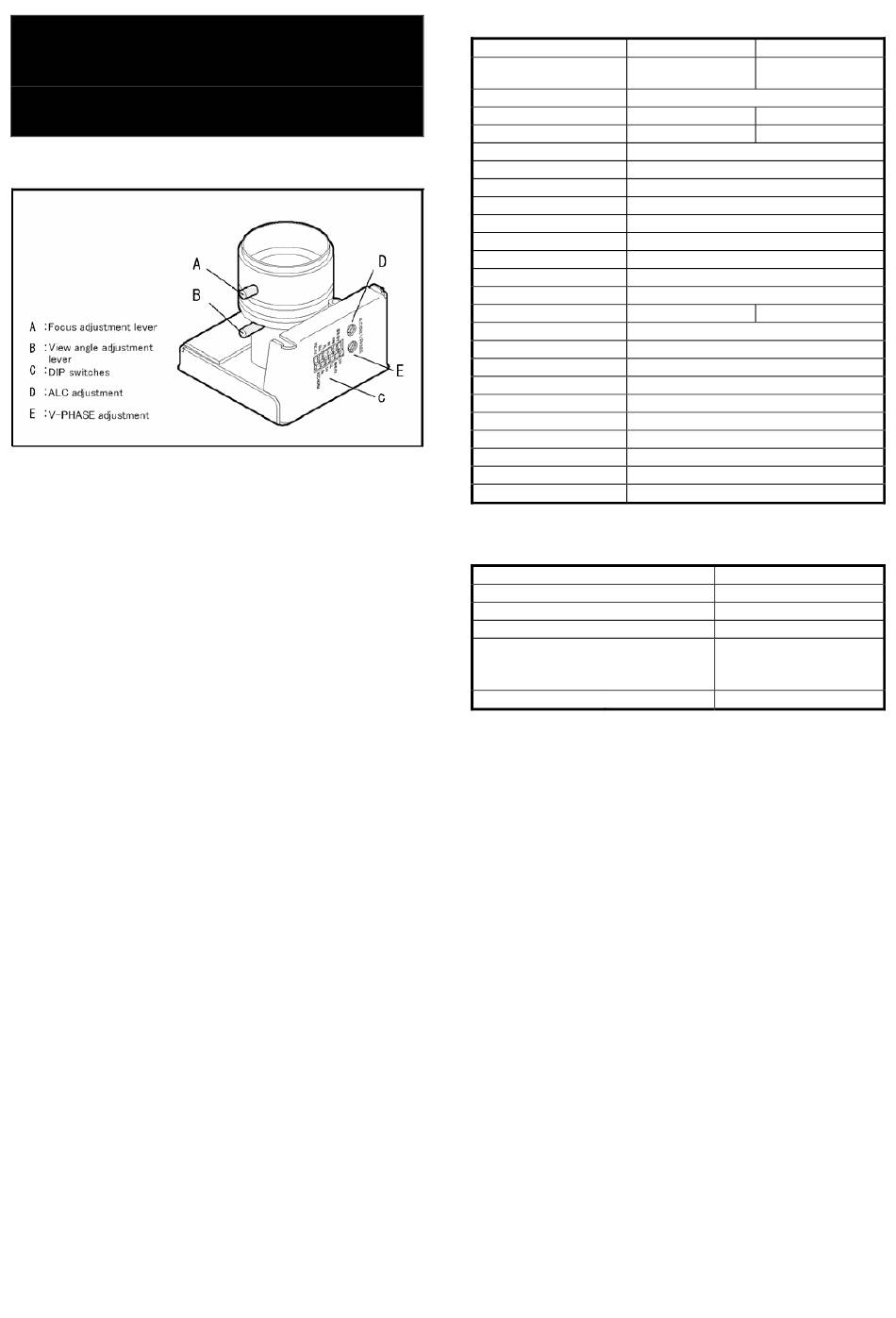

Camera adjustments

Camera adjustments for the ZC-D4039NHA/PHA
DIP switch settings
The bank of dip switches allow the following settings to be made:
SDN mode (SDN / ON)
When ON the camera operates in monochrome mode in reduced
lighting.
Auto White Balance (AWB / AWB.EX)
AWB: The camera operates in the normal Auto White Balance range
2700K~11000K.
AWB EX: The camera runs in the extended Auto White Balance
range 2000K~18000K.
Line Lock (INT / LL)
In LL mode, the V-Phase may be adjusted to compensate for
connected supply phase differences.
Only applicable for 24VAC supply - otherwise the camera operates
with INTernal sync.
Flicker less mode (FL / ON)
ON: The Camera reduces flicker in the image under fluorescent
lighting.
Back Light Compensation (BLC)
When set ON, this option improves the camera response to strong,
unwanted lighting effects behind the required subject.
Low Light Sensitivity (AGC-EX)
When set to EX sensitivity in low light is increased.
Focus & view angle adjustment
Twist the levers on the side of the varifocal camera to adjust the
focus and view angle settings.
TIP: If necessary, perform the final focus through the dome cover.
Hold it to the lens reversed to confirm the final results.
Vertical phase adjustment
Use this adjustment when using an AC supply to align the camera
phase with that of the supply.
Iris adjustment
This is factory set and should not normally require adjustment
except to compensate for excessive image blooming.

ZC-D4039NHA/PHA camera specifications

Type / Format
Scanning Element
H15.750 KHz/V:59.94 Hz
Image Picture Element
Effective Picture Element
Approximate pixels
Resolution (TV lines)
Minimum Illumination
S/N Ratio
AGC.EX Gain
AGC Preset Gain
Back Light Compensation
Exposure Control
Sync System
Line Lock (Phase Adj. Range)
Line Lock (Frequency Range)
Gamma Compensation
Video Output
White Balance
AWB Normal Range
AWB.EX Range
Power Range
Power Consumption
Operating Temperature
Storage Temperature
External Dimensions
Lens Specifications
Focal Length
F-No.
Iris Range
Minimum Object Distance
Angle Of View Diagonal
Horizontal
Vertical
Lens Type
NTSC PAL
2:1 Interlace, 2:1 Interlace,
H15.625 KHz/V:50 Hz
1/3" Interline CCD
768(H) × 494(V) 752(H) × 582(V)
380K 430K
540 (normal)
1.0 lx @ F1.2
50 dB
30 dB
26 dB
Central area for auto iris
DC Auto IRIS Drive
Internal/Line lock
0°~270°
60 Hz ± 1 Hz 50 Hz ± 1 Hz
0.45
1.0 Vpp, 75 ohm Unbalanced
Automatic White Balance
2700K - 11000K
2000K - 18000K
AC: 24 VAC ± 20% or DC: 12 VDC -10% +20%
4W
-10°C to +50°C
-35°C to +60°C
120(φ)mm x 100(H)mm
3.0~9.0 mm
F1.2
F1.2~F360
0.5 m
116.2°~39.7°
90.0°~31.8°
66.2°~23.9°
Vari-focal
