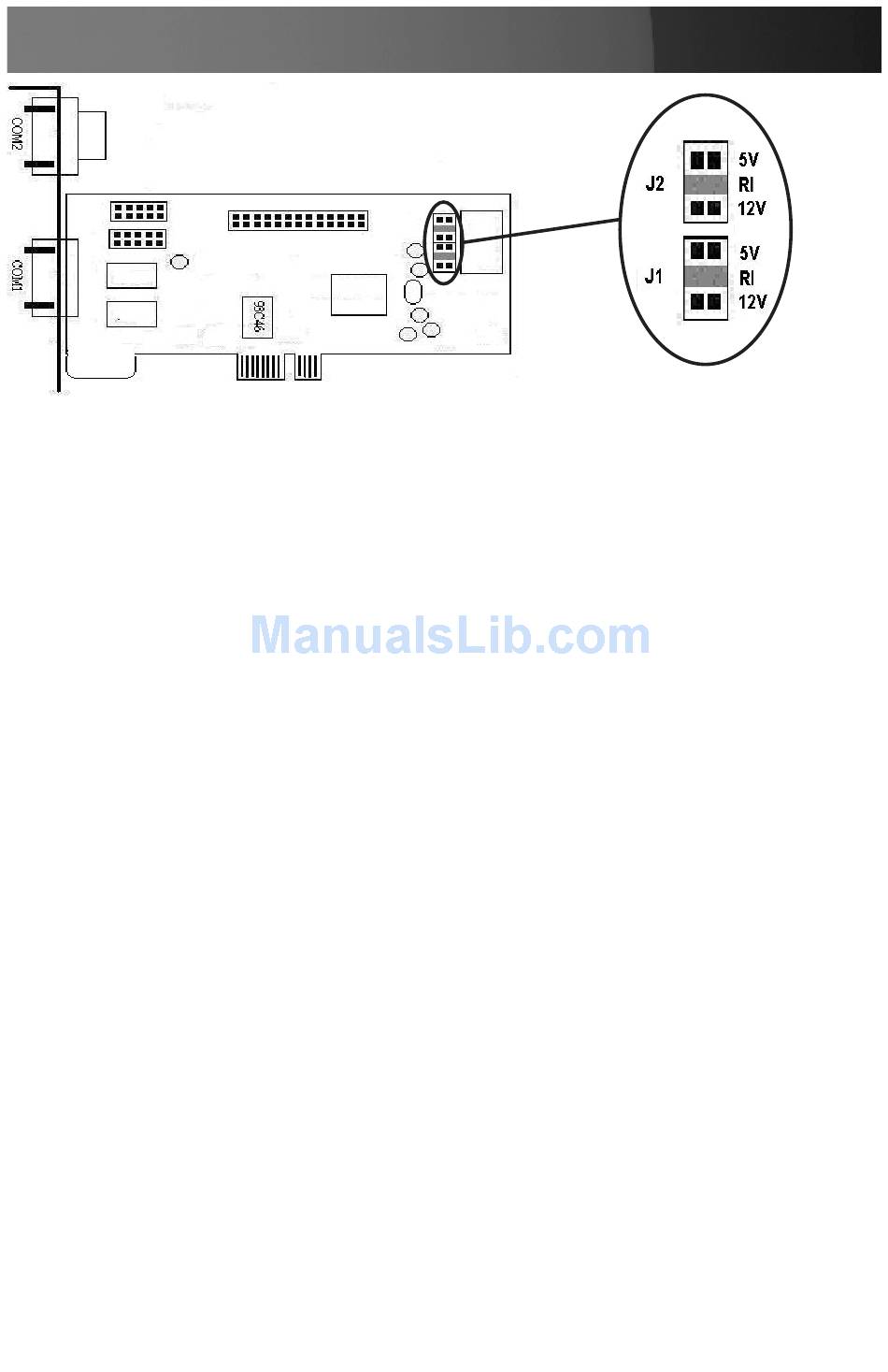

Setting Power Mode
This card is specially designed to allow for power output from the ninth
pin of the DB9 connector(s) for devices that support power over serial.
This card allows users to set each port with 5V, 12V, or RI (no power).
Users can also choose to draw the necessary power from the system
power supply by connecting to the LP4 power connector.

Hardware Installation

1.
Remove the cover of your system (see your computer's user manual
for details, if necessary) and gently turn your computer onto its side,
so that the PCI Express expansion slot openings on the motherboard
are facing upwards.
2.
Locate an empty PCI Express slot and remove the metal plate that
covers the corresponding rear bracket. You may need a Phillips screw
driver to perform this step. Retain the screw! You will need it to secure
the card later.
PEX2S5521P Only: Please ensure that the metal plate that covers the
rear bracket adjacent to the above mentioned bracket is vacant, so that
it can be used for parallel port installation).
3.
Gently insert the card into the empty slot, making sure it is firmly
seated, then secure the card in place using the screw you removed in
Step 3.
4.
PEX2S5521P:
parallel port to the provided slot on the PEX2S5521P board (please
Instruction Manual
Connect the ribbon cable provided by the (separate)
3
