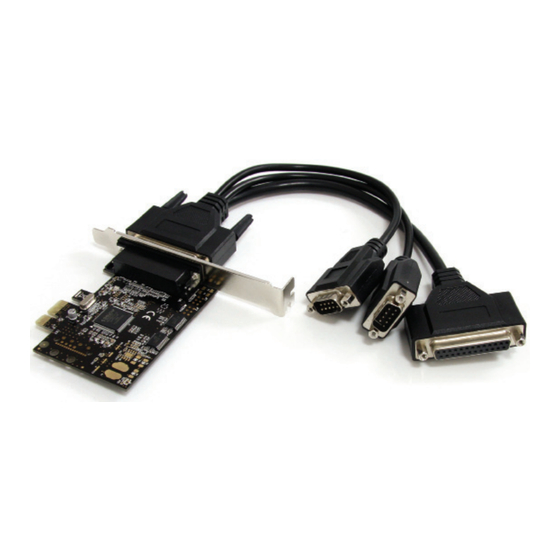

2S1P PCIe Serial Parallel Combo Card with
Breakout Cable
PEX2S1P553B
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/04/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com 8STPEX2S1P553B
Summary of Contents for StarTech.com 8STPEX2S1P553B
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/04/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................3 Verifying Installation ..........................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
CPU load by as much as 48% over conventional (bridge chip) cards. This product is a replacement for our PEX2S1P552B card. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. Packaging Contents • 1 x 1x PCIe 2S1P Card • 1 x DB9 Breakout Cable... -
Page 5: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Driver Installation
6. Connect the break-out cable to the external connector on the card. 7. Insert the power cable into the socket on the power supply and reconnect all other connectors/cables removed in Step 1. Driver Installation Windows 2000/XP/Server 2003 1. When the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD-ROM drive. -
Page 7: Verifying Installation
Verifying Installation Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Ports (COM & LPT)” option. The appropriate number of additional COM ports and LPT ports should be visible. -
Page 8: Specifications
Specifications PCI Express revision 1.0a Bus Interface (x1 slot connector) Form Factor Full / Low Profile Chipset Moschip MCS9901CV-CC 2 x DB9 male * External Connectors 1 x DB25 female* (*via included breakout cable) UART 16C450/16C550 Supported Serial Protocol RS-232 SPP, EPP, ECP Supported Parallel Protocol (auto-detecting) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
