2 Port Industrial PCIe RS232 Serial Card
with Power Output and ESD Protection
PEX2S553S
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/21/2013
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEX2S553S
Summary of Contents for StarTech.com PEX2S553S
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/21/2013...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Overview ..................1 Jumper Settings ............................2 RS232 Pinout ............................... 2 Installation .....................3 Hardware Installation ..........................3 Driver Installation ............................4 Verifying Installation ..........................5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction

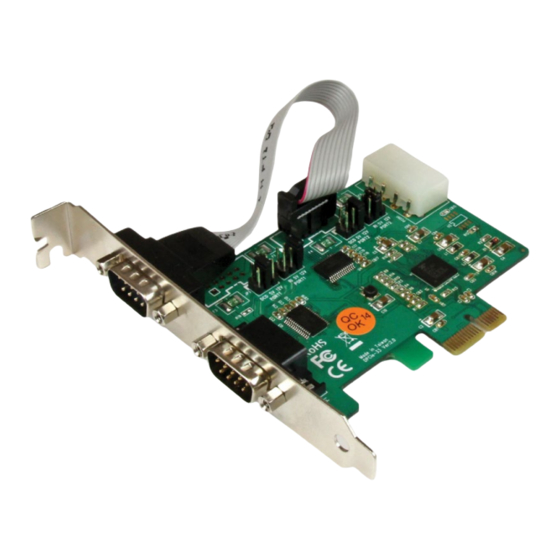

Introduction The PEX2S553S 2-Port PCI Express Serial Card lets you add two ESD-Protected (15kV) RS232 ports, with 5V or 12V selectable power output through a PCI Express slot. Packaging Contents • 1x Serial Card • 2x Low Profile Brackets • 1x Driver CD •... -
Page 5: Jumper Settings
Jumper Settings Power over serial Enable/Disable (per-port): Each port has 2 sets of jumper pins (labeled above) that can be configured to provide power over Pin 1 and/or Pin 9, or neither. Pin 1 Pin 9 DCD (Data Carrier Detect): No power RI (Ring Indicator): No power sent over sent over Pin 1 Pin 9... -
Page 6: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Driver Installation
Driver Installation Windows 1. Upon starting Windows, if the Found New Hardware wizard appears on the screen, cancel/close the window and insert the included Driver CD into the computer’s CD/ DVD drive. 2. Open the Device Manager by right-clicking on Computer, and then select Manage. In the new Computer Management window, select Device Manager from the left window panel (For Windows 8, open the Control Panel and select Device Manager). -
Page 8: Verifying Installation
Verifying Installation 1. Open the Device Manager by right-clicking on Computer, and then select Manage. In the new Computer Management window, select Device Manager from the left window panel (For Windows 8, open the Control Panel and select Device Manager). 2. -
Page 9: Specifications
Specifications Host Interface PCI Express Form Factor Standard Profile (Low Profile bracket incl.) Chipset ID Exar - XR17V352 External Connectors 2 x DB-9 (9 pin; D-Sub) Supported Protocols RS-232 Maximum Baud Rate 921.6 Kbps Data Bits 5, 6, 7, 8 Parity Even, Odd, Mark, Space, None Stop Bits... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
