Page 1: Instruction Manual
PEX2S1P553B Instruction Manual PCI Express Serial and Parallel Adapter 2-Port Serial, 1-Port Parallel PCI Express Dual Profile Combo Card with Breakout Cable Manual Revision:10/19/2010 For the most up-to-date information, please visit www.startech.com... - Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............2 Driver Installation .................3 Verifying Installation ..............4 Specifications ..............5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction

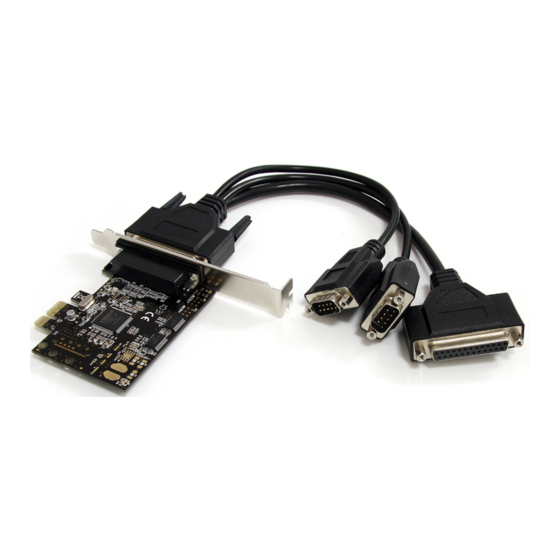

Introduction The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port to a single PCI- Express (PCIe) slot. Suitable for almost any computer, the card offers a low-profile design and includes an optional full height bracket. -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap... -
Page 6: Driver Installation
3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the computer case (Refer to documentation for your computer system for details.). Note: This card will work in PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots). 4. -
Page 7: Verifying Installation
Verifying Installation Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Ports (COM & LPT)” option. The appropriate number of additional COM ports and LPT ports should be visible. -
Page 8: Specifications
Specifications PCI Express revision 1.0a Bus Interface (x1 slot connector) Form Factor Full / Low Profile Chipset Moschip MCS9901CV-CC 2 x DB9 male * External Connectors 1 x DB25 female* (*via included breakout cable) UART 16C450/16C550 Supported Serial Protocol RS-232 SPP, EPP, ECP Supported Parallel Protocol (auto-detecting) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
