2-Port Serial Card with 16C1050 UART -
RS232 – PCIe
PEX2S1050
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/PEX2S1050
Manual Revision: 05/29/2020
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com PEX2S1050
Summary of Contents for StarTech.com PEX2S1050
- Page 1 2-Port Serial Card with 16C1050 UART - RS232 – PCIe PEX2S1050 *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Product diagram ............................1 Package contents ............................2 Requirements ............................. 2 Hardware installation ................3 Install the low-profile brackets ......................3 Install the PCIe Card ..........................3 Software installation ................4 Install the driver - Windows ........................4 Install the driver - Mac OS ........................ -
Page 4: Introduction

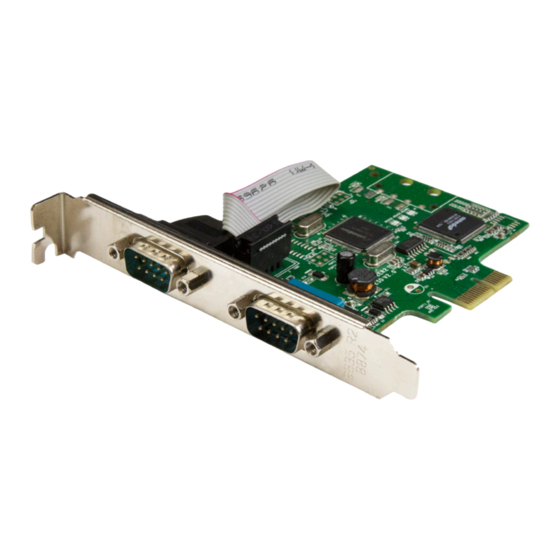

Introduction This serial card lets you add two RS232 serial ports to your full or small form-factor computer through a PCI Express expansion slot. It features a dual-channel 16C1050 UART for compatibility with 16C1050 serial devices. It’s a convenient solution for connecting modern or legacy serial devices to your computer, with support for data transfer rates up to 460Kbps. -
Page 5: Package Contents
DB9 RS232 connector pinout - male Package contents • 1 x serial card • 2 x low-profile brackets • 1 x driver CD • 1 x quick-start guide Requirements • A host computer with a PCI Express x1 slot (two expansion slots are required for installation into a low-profile computer) •... -
Page 6: Hardware Installation
Hardware installation Install the low-profile brackets The serial card can be installed in a low-profile (half-height) or a full-profile computer. The full-profile bracket comes preinstalled on the card, but if you have a small form- factor computer, you can install the two low-profile brackets instead. 1. -
Page 7: Software Installation
7. Place the cover back onto your computer case. 8. Reconnect the power cable to the back of your computer. 9. Reconnect all of the peripheral devices that you disconnected in step 3. 10.Turn on your computer. Software installation Install the driver - Windows 1. -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
