Panel Description; Front Panel - Icom IC-F6013H Instruction Manual

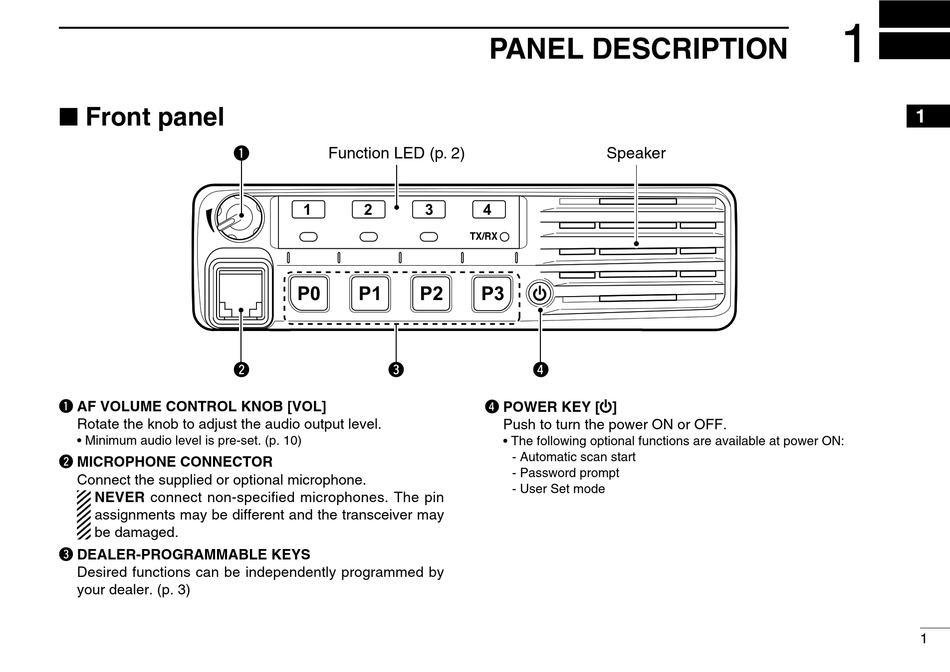

■ Front panel

q
w
q AF VOLUME CONTROL KNOB [VOL]
Rotate the knob to adjust the audio output level.
• Minimum audio level is pre-set. (p. 10)
w MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.
e DEALER-PROGRAMMABLE KEYS
Desired functions can be independently programmed by
your dealer. (p. 3)
Function LED (p. 2)
1 2 3
TX/RX
P0 P1 P2
e

PANEL DESCRIPTION

Speaker
4
P3
r
r POWER KEY [ ]
Push to turn the power ON or OFF.
• The following optional functions are available at power ON:
- Automatic scan start
- Password prompt
- User Set mode
