INSTALLATION
How you attach your data equipment
depends entirely on what you want your
system to do . Some of the most popular
applications are listed below:

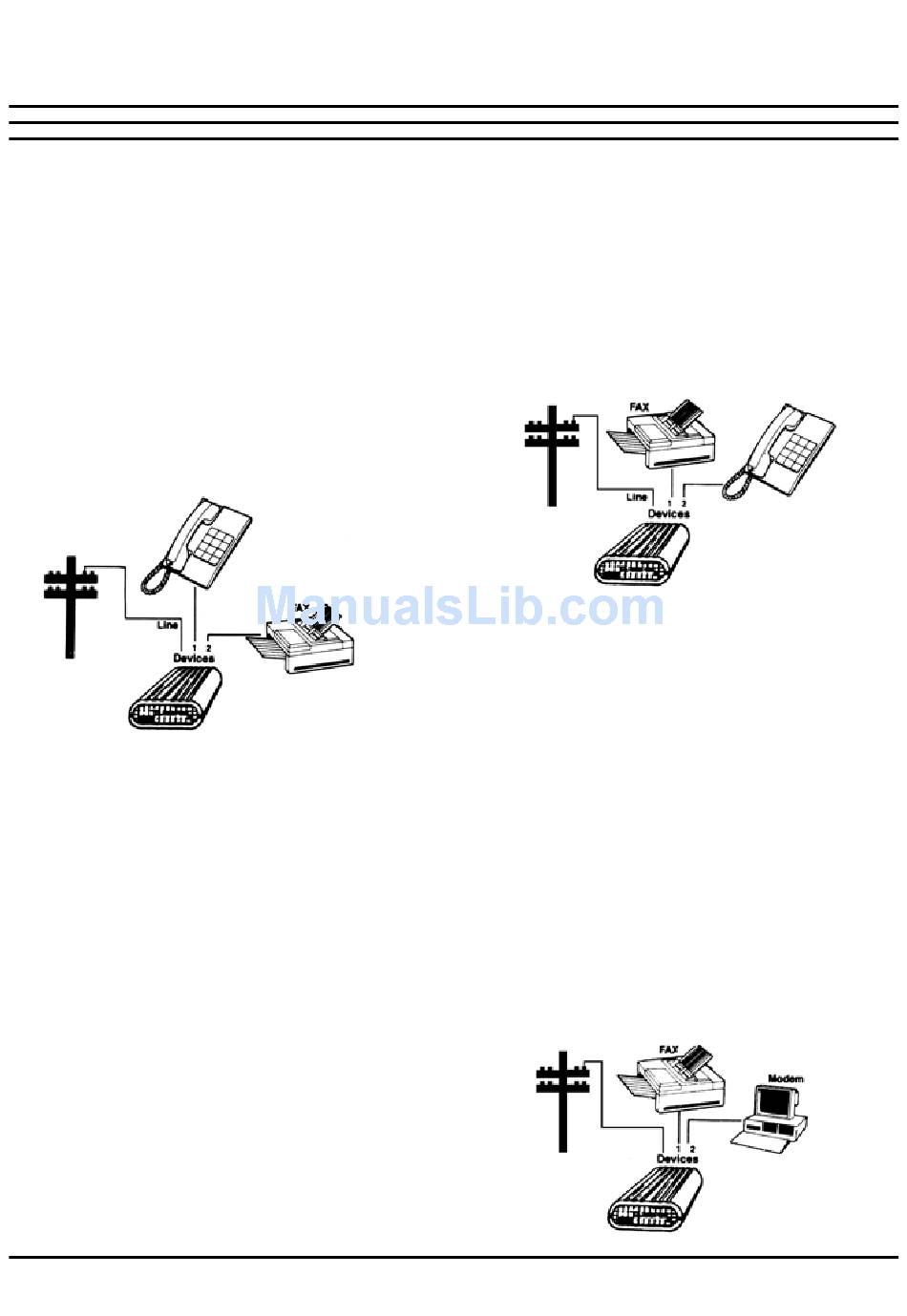

5.4. ADDING FAX TO A
5.4. VOICE LINE
When adding FAX to a voice line, attach
your FAX to the DEVICE 2 connector on
the back of your ATX-250 . See your
installation manual for details .
You should enable auto FAX tone
detection . Configuration switch 6 should
be set to the "up" position . This is the
factory setting .
If necessary, change the configuration
switch on the back of your ATX-250 .
Unplug the ATX-250 power cord for
about 2 seconds and re-connect it to
activate the new settings .
In addition, you may also want to turn on
CALL OPTI-MIZER if you are using your
ATX-250 on a multi-line system . See
section 4 .2 .3 for details .
5.4.2 ADDING VOICE TO
5.4.2 A FAX LINE
If you are expanding the use of your FAX
VERSA-LINK ATX-250
line you will want to move your telephone
system to the DEVICE 2 connector and
attach your FAX machine to DEVICE 1 .
This will allow all incoming calls to go
directly to your FAX machine . Outbound
calls can be made as usual, and
incoming calls are possible using manual
transfer .
You will want to disable auto FAX tone
detection . Set the configuration switch
position 6 to the "down" position .
Unplug the power cord from your ATX-
250 for about 2 seconds and re-connect
it to activate the new switch settings .
5.4.3 Allowing Two Data
5.4.3 Devices to Share
5.4.3 One Line
If you are using FAX, attach your FAX
machine to the DEVICE 1 connector on
the back of your ATX-250 . Attach your
other data device to the DEVICE 2
connector .
