Multi-Link Versa-Link ATX-300 Operating Instructions Manual

Multi-link versa-link atx-300 call processors: user guide
Hide thumbs Also See for Versa-Link ATX-300:
Table of Contents

Advertisement

Quick Links

Download this manual
TM
Versa-Link
ATX-300
Online Operating
Instructions
www.multi-link.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Versa-Link ATX-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Multi-Link Versa-Link ATX-300

Summary of Contents for Multi-Link Versa-Link ATX-300

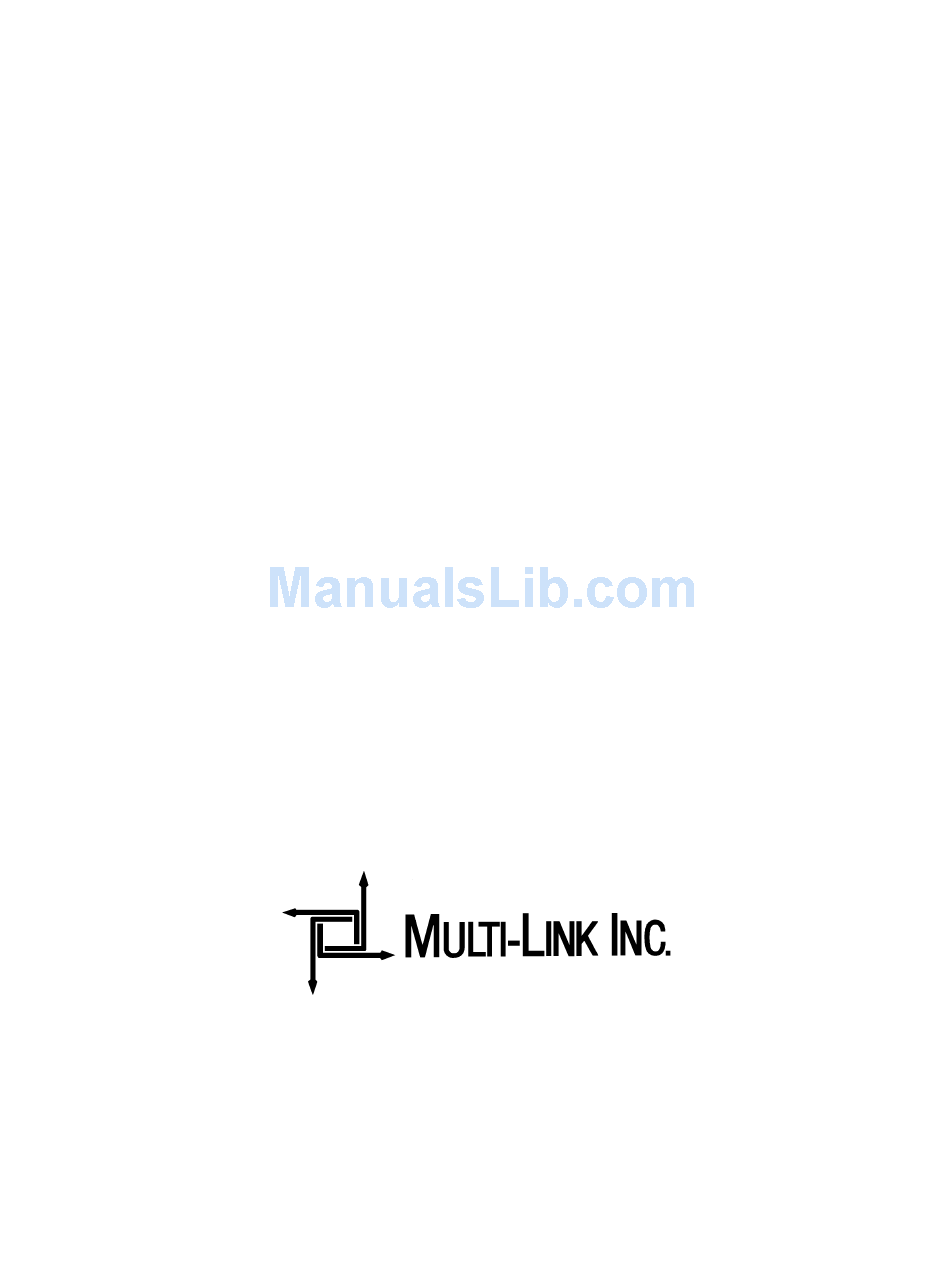

  • Page 1 Versa-Link ATX-300 Online Operating Instructions www.multi-link.net...
  • Page 2 (1.) Mode Selector Switch (2.) Standby Indicator (3.) Semi - Automatic Indicator (4.) Fully Automatic Indicator (5.) Dip Switches (6.) 12 volt AC Power Input (7.) Telephone Line Connector (8.) Device 1 (9.) Device 2 (10.) Device 3 Controls...
  • Page 3 I N F O R M A T I O N ......... 2 8 VERSA-LINK ATX-300 TABLE OF CONTENTS...

  • Page 4: Equipment

    Versa-Link is a 24-hour communications control center that automatically analyzes and routes incoming calls to the proper equipment. Your Link ATX-300 permits a caller to remotely access your telephone, FAX machine, computer other equipment you may have attached. Standard features include: -...

  • Page 5: Application.

    Your ATX-300 can be used to process calls to your voice and data equipment, just as it did in the above example. If you are adding FAX and a computer...

  • Page 6: Operation.

    (called CNG tone or AUTO-FAX tone). It will then continue to identify itself until the called FAX answers the call. When an ATX-300 is used at the receiving end, it can detect this FAX identification tone, and automatically transfer the call to the FAX machine on the receiving end, without ringing the telephone.
  • Page 7 This will allow FAX calls to always be processed automatically. 2 . 2 C O M P U T E R Your ATX-300 is compatible with all dial-up MODEM Usually, MODEM are attached to the DEVICE 3 connector of your ATX-300. Your ATX-300 will...
  • Page 8 2 . 3 T E L E P H O N E S M U L T I - L I N E Your ATX-300 may be used with single and multi-line telephone equipment. Both tone-dialing and pulse- dialing equipment may be used with your ATX-300 section 4.2.2...
  • Page 9 As your business grows, you may want to make your FAX line a dedicated line. Your ATX-300 can still give you maximum utility of your phone lines. You may want to re-configure your system to the application described below to allow outgoing voice calls on this FAX line.
  • Page 10 O T H E R A P P L I C A T I O N S Many configurations exist. For example, you can use your ATX-300 to: - Screen incoming calls to your FAX, MODEM or other data equipment. Alleviates “junk” FAX and computer hacking.

  • Page 11: Operation

    O P E R A T I O N Your ATX-300 will route incoming calls to the proper equipment and prevent other devices from interfering with the ongoing communication. 4 . 1 O U T B O U N D C A L L S...
  • Page 12 3-1/2 seconds that allows call processing equipment, like your ATX-300, to identify the call as originating from a FAX. When auto FAX tone detection is turned on, your ATX-300 will transfer...
  • Page 13 The called party can manually transfer a call with either touch-tone or pulse-dialing equipment connected through the ATX-300. If you plan to manually transfer calls with a pulse-dialing telephone, change your device selection codes to avoid the use of the s y m b o l s .
  • Page 14 FAX. (If your FAX has programmable ring selection, set it to answer on the earliest possible ring) At this time, your ATX-300 begins to operate in NIGHT FUNCTION. Now, incoming calls will ring your telephone system only 2 times...

  • Page 15: Installation

    (110 Volt AC, 50-60 Hz) and plug its power cord into the power connector on the back of your ATX-300. The AUTO indicator on the front of your ATX-300 should now be lit, showing that power is supplied and the ATX-300 is operating in AutoAnswer mode. If...
  • Page 16 5.3.1 Single line telephonea Attach your telephone system to the connector on the back of your ATX-300. If you have only one phone with no extensions, you can connect the phone by plugging it into connector on your ATX-300. If...
  • Page 17 1 and 6 should be set to the “up” position. This is the factory setting. If necessary, change the configuration switches on the back of your ATX-300. Unplug the ATX-300 power cord for about 2 seconds and re-connect it to activate the new settings.
  • Page 18 DEVICE 1, you should disable auto FAX detection. Set the configuration switch position 6 to the “down” position. Unplug the power cord from your ATX-300 for about 2 seconds and re-connect it to activate the new switch settings.
  • Page 19 (OPX), including answering services located away from your building, are not compatible with your ATX-300. Do not install an ATX-300 if you are on a party line or have an OPX. 5 . 6 . 2 Your ATX-300 is intended for use with standard modular jacks.

  • Page 20: Mode Of Operation:

    STBY mode is especially useful for trouble- shooting your building wiring. When no power is applied to your ATX-300, it will operate as if it were in standby mode. 6 . 4 N O T E S O N O P E R A T I O N When your ATX-300 is ringing a device, it will attempt six rings to that device.

  • Page 21: Startup Mode

    PROGRAMMABLE F E A T U R E S Your Versa-Link ATX-300 can be used in a wide variety of applications by changing the programmable features. 7 . 1 C O N F I G U R A T I O N...
  • Page 22 (AFTER the call has been answered by your ATX-300, but BEFORE the ATX-300 begins to ring DEVICE You can program your ATX-300 to wait one additional ring (for a total of about 12 seconds) before ringing 1. This will allow...
  • Page 23 NOTE: If at any point in the programming process you are unsure and would like to start again, unplug the AC power cord and re-connect it. Your ATX-300 will enter its start-up mode and you can start over with step 1.
  • Page 24 5 Press one of the keys 5 through 9, 0, or to set the desired maximum number of rings that your ATX-300 will generate to DEVICE 1 in AUTO mode or any device after a call is re-routed: MAXIMUM NUMBER OF RINGS...

  • Page 25: Restoring The Factory Settings

    (The arrows (+ ) in the preceding charts indicate the factory settings) 7.5 FACTORY SETTINGS When your ATX-300 was shipped to you, it was programmed with the following settings: DEVICE 1 DEVICE 1 DEVICE 2...

  • Page 26: Programming Tips

    “12” would not be a good choice, because a long-distance call to Los Angeles would require dialing "1-213- After the “12” is heard, your ATX-300 would then transfer the call and not allow you to finish dialing. This is why the symbols are often good choices for the first or second digit of a device code.
  • Page 27 To determine this, disconnect the cord from the LINE jack of your ATX-300. If you can V E R S A - L I N K A T X - 3 0 0 get a dial tone on any of your telephones, your installation is not correct.
  • Page 28 RJ- 11 modular jack (the wires are often color- coded red and green). All connections to your ATX-300 must be wired according to this RJ- 11 standard. RJ-14 WIRING STANDARD - Utilizes a six position modular connector wired to two separate telephone lines.

  • Page 29: Technical Specifications

    TECHNICAL SPECIFICATIONS Input power requirements: At AC Transformer: 110-125 Volts AC Only 50-60 Hz At power jack on ATX-300: 12-15 Volts AC only Power consumption Idle: 4.2 Watts Ringing a device: 6-11 Watts CO Interface: REN 1. 1 B DOC (Canada) Load No. 22.6...
  • Page 30 If you experience trouble with this telephone equipment, please contact your Versa-Link dealer or Multi-Link, Inc. for information on obtaining service or repairs. The telephone company may ask that you disconnect this equipment from the network until the problem has been corrected or until you are sure that the equipment is not malfunctioning.

  • Page 31: Service Information

    Radio Interference Regulationsof the Canadian Department of Com- munications. LIMITED WARRANTY We warrant that if this Versa-Link ATX-300 product, manufactured by Multi-Link, Inc. and purchased by you, proves to be defective in material or workmanship, we will provide without charge, for a period of two (2) years (U.S.
  • Page 32 Therefore, THIS MANUAL IS TO BE USED ONLY WITH OR AS A MARKETING TOOL FOR THE VERSA-LINK ATX-300. Duplication of all or part of this manual without the permission of Multi-Link, Inc. is prohibited.
