Hyper Dynamic, Super Cube DSP Color Camera
It realizes wide range of backlight compensation with 95dB typical/120dB maximum
of Wide Dynamic Range (WDR) function. Even in scenes of wide range illuminance,
it has capability to see a high contrast subject in a natural state.
Features

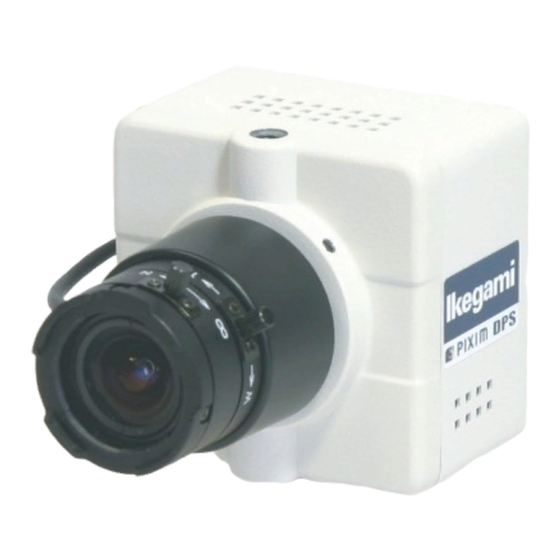

ISD-A10 is single chip color camera employing a new 1/3-inch DPS (Digital Pixel System) imager,
which realizes a high performance and multi functions. Especially it provides a high performance
of Hyper Dynamic and smearless picture under the backlight condition. This camera provides
satisfactory performance and functions for the surveillance applications like Wide Dynamic Range,
2-way auto iris, auto-white balance and etc.
ISD-A10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ikegami ISD-A10
Summary of Contents for Ikegami ISD-A10
- Page 1 Features ISD-A10 is single chip color camera employing a new 1/3-inch DPS (Digital Pixel System) imager, which realizes a high performance and multi functions. Especially it provides a high performance of Hyper Dynamic and smearless picture under the backlight condition.
- Page 2 Auto Adjustment Camera ID Maximum 24 characters (Alphanumeric and symbols) CS Mount Lens Mount Conventional Camera ISD-A10 AC24V+/-10% 50/60Hz or DC12V(10.5~15V) Power Supply Dimensions (WHD) W64 x H64 x D63mm 350g (0.77 lbs) approx. Weight The image provided is smear-less even in the presence of strong light. A Appearance high level of detail can be observed in the picture even under this condition.
