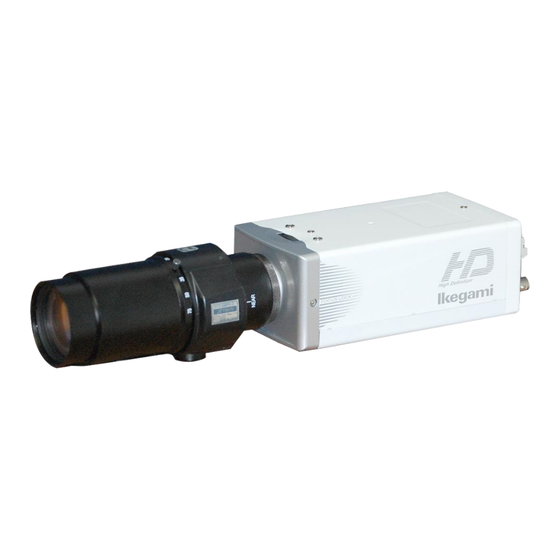

Ikegami ISD-2500HD Preliminary

Ultra high sensitivity color hd camera

Hide thumbs Also See for ISD-2500HD:

Preliminary

ISD-2500HD

Ultra High Sensitivity

Color HD Camera

Main Features

■ Newly developed Ultra-High Sensitive

CMOS Sensor

(0.00016

lux F1.2 50%)

■ No cooling system required

■ High Definition video with HD-SDI output.

■ Very low noise due to the correlated multiple sampling

■ Superior Color Reproducibility

Table of Contents

Do you have a question about the ISD-2500HD and is the answer not in the manual?

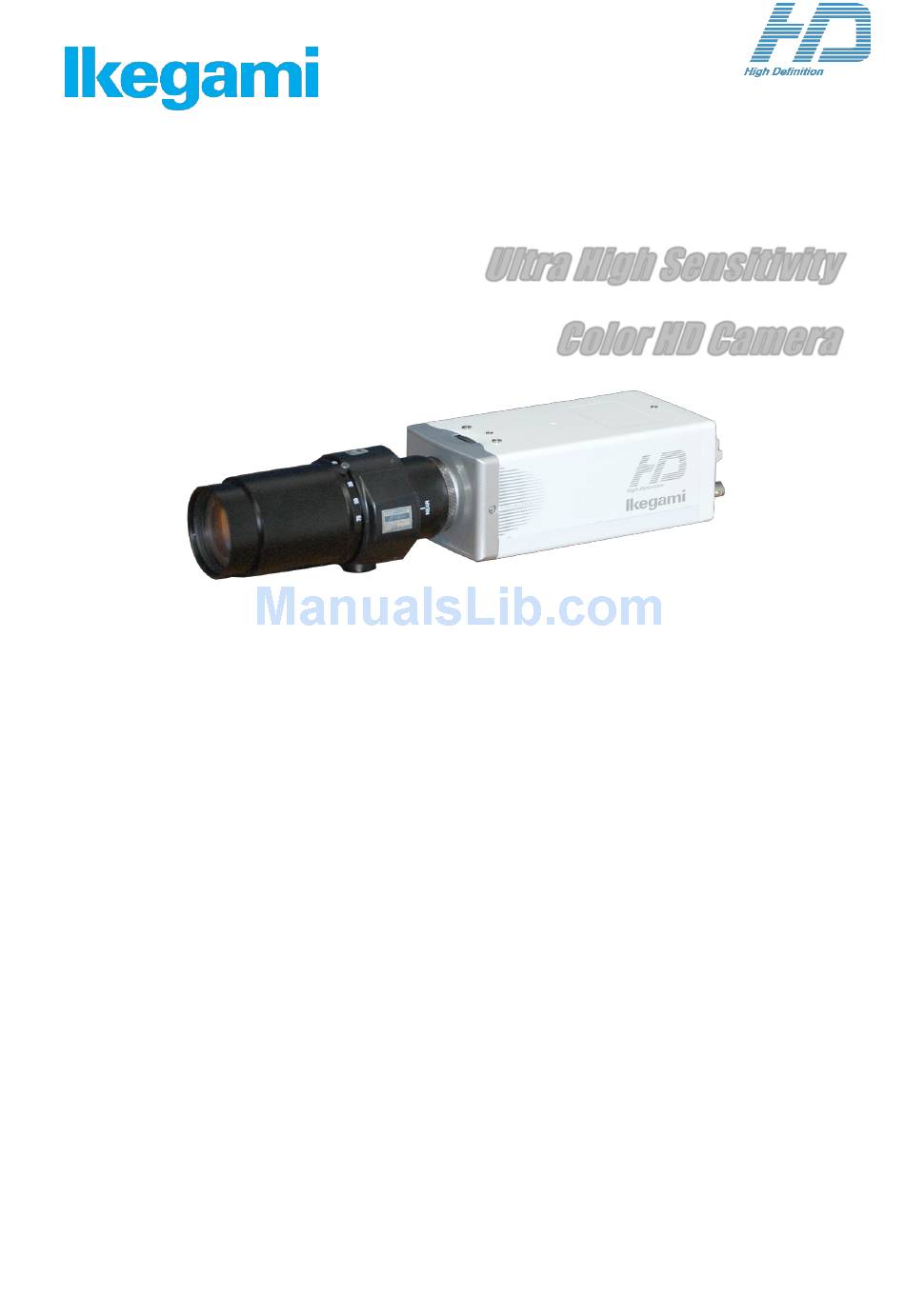

Page 1: Main Features
Preliminary ISD-2500HD Ultra High Sensitivity Color HD Camera Main Features ■ Newly developed Ultra-High Sensitive CMOS Sensor (0.00016 lux F1.2 50%) ■ No cooling system required ■ High Definition video with HD-SDI output. ■ Very low noise due to the correlated multiple sampling...
Page 2 Specification (Tentative) Item Specification 2/3” CMOS sensor Image sensor Effective pixels 1280 (H) x 720 (V) Pixel size 7.1im x7.1um Synchronization Internal and external HD: HD-SDI 1080 (59.94i/50i/30p/29.97p/25p, 720 (60p/59.94p/50p/30p/29.97p/25p) Video output SD: VBS NTSC/PAL External control RS-485 Horizontal resolution 650 TV lines or more Sensitivity F22 at 2000 lux...
