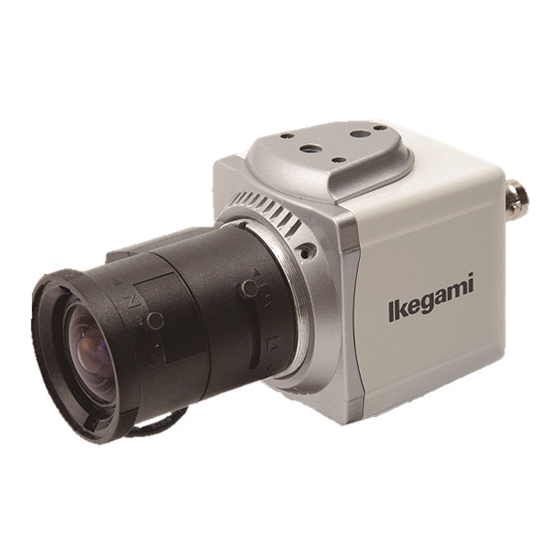

Ikegami ICD-879S Instruction Manual

4 in 1 hybrid camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
4 in 1 Hybrid Camera
MODEL
ICD-879S
OUTDOOR USE WARING
WARNING – TO PREVENT FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.
The apparatus shall not be exposed to
dripping or splashing and that no
objects filled with liquids, such as
vases, shall be placed on the
apparatus.
Ikegami Electronics
, Inc.
(U.S.A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICD-879S and is the answer not in the manual?

Questions and answers

Related Manuals for Ikegami ICD-879S

Summary of Contents for Ikegami ICD-879S

  • Page 1 INSTRUCTION MANUAL 4 in 1 Hybrid Camera MODEL ICD-879S OUTDOOR USE WARING WARNING – TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The apparatus shall not be exposed to dripping or splashing and that no...

  • Page 2: Table Of Contents

    Thank you for choosing this Ikegami 1/2” 4 in 1 Hybrid Camera. Please read this Instruction Manual carefully to keep your Ikegami camera at peak performance for longer service period. This unit is a cube-type 1 CMOS color camera and making use of a 1/2” sensor.
  • Page 3 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 5 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

  • Page 6: Handling Precautions

    1. Handling Precautions • Do not expose the internal mechanism of the camera in a water-splashed or highly humid environment. • Do not use the camera where the ambient temperature drops below -10°C or rises above +50°C. The images and component parts may be adversely affected or the camera may not function correctly.

  • Page 7: Features

    3. Features (1) Ultra Low Light (Ultra High Sensitivity) The use of 1/2” image sensor makes it easy to watch in dark environments. (2) Wide Dynamic Range The WDR function provides for very effective compensation of high light and dark areas in screen. This situation may occur generally outside or viewing from indoor to outdoor scenes.

  • Page 8: Name Of Each Section And Its Function

    4. Name of each section and its function VIDEO OUT SET UP POWER LENS AC24V 50/60Hz 320mA DC12V 350mA MAX40mA...
  • Page 9 ① Lens mount (CS mount) This is used to mount the lens on the camera. Many types of CS mount lens can be attached. ② Back focus lock screw After completing the flange back adjustment of the camera, use the supplied Allen wrench to tighten the screw until it is fully fixed.
  • Page 10 ⑤ Video output terminal (VIDEO OUT) To be used to give out the video signal. Connect this to the video input terminal of a monitor, switcher etc. (To be terminated with 75-ohm impedance.) ⑥ Power indicator (POWER) The LED indicator stays on in green while the camera power is on. ⑦...

  • Page 11: Operating Procedure

    5. Operating Procedure 5-1. User Setup This camera is provided with user setup function for picture quality, and camera ID. The setup menu is a tree type on-screen-display. When installing the camera it is possible to set up the various functions. 5-2.
  • Page 12 5-3-1. MAIN MENU When the OSD menu is launched, you are presented with the adjacent opening screen. A menu option followed by a indicates the presence of a sub-menu. Options set to OFF will not show a until set to ON. Use RETURN to the previous menu.
  • Page 13 (2)EXPOSURE It selects Lens Mode, Brightness, Shutter speed, Sens-up and AGC Gain. ① LENS - DC or Manual selection. ② BRIGHTNESS - Sets the level of the overall. ③ SHUTTER - Auto, Manual, FLK selection, 1/30~1/30K. Set this on to reduce the exposure time of each image. This can be used to reduce blur in images with fast changing content.
  • Page 14 (4)DAY & NIGHT Selecting Day or Night is available. ① AUTO - The image is automatically switched between high-quality color image for the day and highly-sensitive monochrome image for the night. ② COLOR - Fixes the camera in color mode. ③...
  • Page 15 (6)DNR(Digital Noise Reduction) This function is used to improve the picture quality by filtering the noise which is generated under low light conditions. (7)ADJUST Color gain, sharpness, gamma, mirror, flip, D-zoom, ace, defog, shading and privacy are available. ① COLOR GAIN - It adjusts the color intensity. ②...
  • Page 16 (8)MOTION This function detects and dispalys the object in motion. ① DET WINDOWS Select and set up to 4 motion areas. ② SENSITIVITY Level control. ③ TEXT ALARM Display “Motion Alarm” on Screen. ④ SIGNAL OUT - N/A MOTION DET WINDOWS SENSITIVITY MOTION OSD MOTION OSD...
  • Page 17 (9)SYSTEM ① COMM Set com port and speed. ② OUTPUT FRAME RATE, FREQ, CVBS_MODE, ANALOG MODE Selectable. ③ IMAGE RANGE Used to adjust black level in dark sceen. ④ COLOR BAR Vertical flip of image. ⑤ LANGUGE Select from 5 languages.(ENG, CHN, CHN JPN, KOR) (s), ⑥...

  • Page 18: Warranty And After-Sale Service

    6. Warranty and after-sale service A warranty accompanies this product. Read and fill out the warranty card ● Please consult Ikegami Electronics (U.S.A.) Inc. or Ikegami Electronics that you have received at your dealer. Keep this card in a safe place.
  • Page 19 (1) Image Sensor: 1/2” 2Mega Pixel Dol Image Sensor (2) HD Resolution: Full HD (1920 x 1080) (3) Scanning system: 16:9 Progressive scan (4) Sync system: Internal (5) Video output: Analog Output-CVBS(default) HD Output-CVI,TVI,AHD(Full HD) (6) Day/Night switching: True Day/Night (7) S/N ratio: Over 52dB(p-p/rms) (8) Minimum object illumination:...
  • Page 20 (25) Power Requirement: AC 24 V±10%(50/60Hz) DC 12 V (+10.5V ~ +15V) (26) Power consumption: 4.0W (27) Outer dimensions: 52(W)×52(H)×55(D) mm (no protrusion included) (28) Weight: Approx. 350g (29) Input/Output connectors: • VIDEO OUT BNC • LENS 4P(E4-191J-100 or equivalent) •...

  • Page 21: External Appearance

    8. External Appearance 2-1/4”-20UNC VIDEO OUT SET UP POWER LENS AC24V 50/60Hz 320mA DC12V 350mA MAX40mA LABEL...

  • Page 22: Setup Flow Chart

    9. Setup Flow Chart...
  • Page 24 300 Route 17 South, Mahwah, NJ 07430, U.S.A. Phone: (201) 368-9171, FAX (201) 569-1626 www.Ikegami.com ■ Ikegami Electronics (Europe) GmbH Ikegami Strasse 1, D-41460 Neuss, Germany Phone : 02131-123-0, FAX 02131-102820 www.Ikegami.de ■ Ikegami Electronics U.K. Office: Unit E1, Cologne Court, Brooklands Close, Windmill Road, Sunbury-on-Thames, Middlesex, TW16 7EB, U.K.
